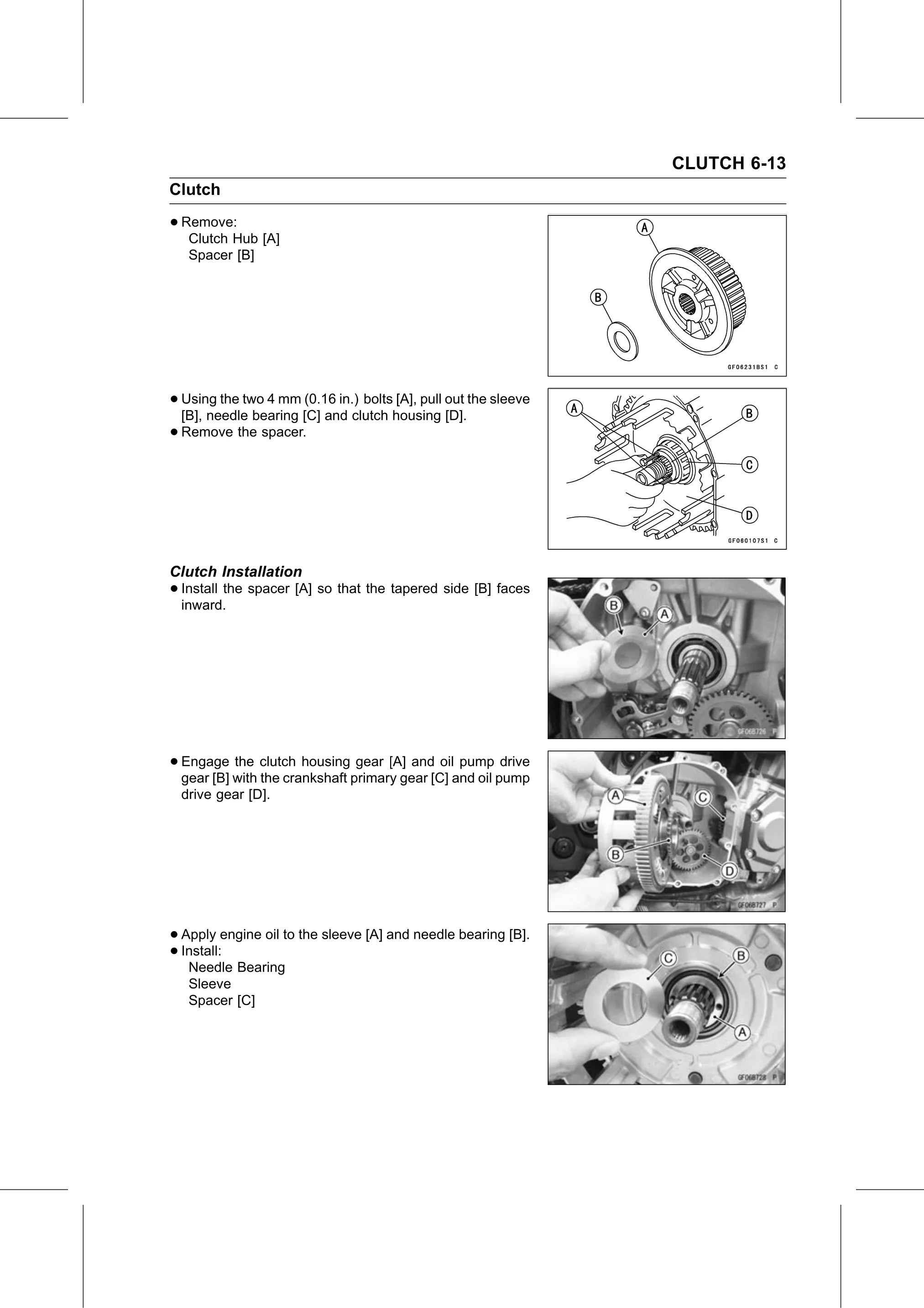

CLUTCH 6-13
Clutch

• Remove:
   Clutch Hub [A]
   Spacer [B]

• Using  the two 4 mm (0.16 in.) bolts [A], pull out the sleeve
  [B], needle bearing [C] and clutch housing [D].
• Remove the spacer.

Clutch Installation
• Install
  inward.
          the spacer [A] so that the tapered side [B] faces

• Engage   the clutch housing gear [A] and oil pump drive
  gear [B] with the crankshaft primary gear [C] and oil pump
  drive gear [D].

• Apply   engine oil to the sleeve [A] and needle bearing [B].
• Needle Bearing
  Install:

   Sleeve
   Spacer [C]
