7-4 ENGINE LUBRICATION SYSTEM

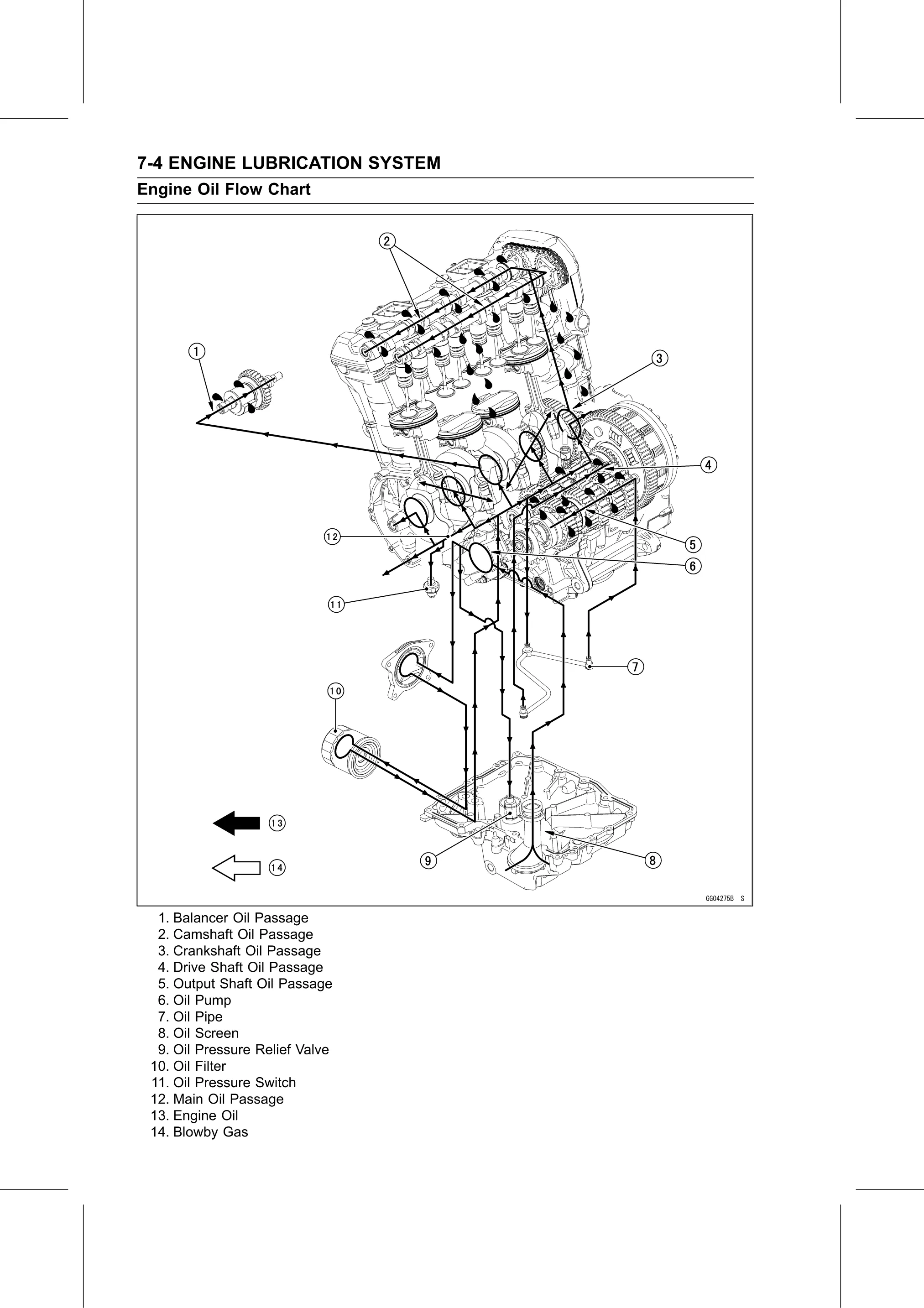

Engine Oil Flow Chart

  1. Balancer Oil Passage
  2. Camshaft Oil Passage
  3. Crankshaft Oil Passage
  4. Drive Shaft Oil Passage
  5. Output Shaft Oil Passage
  6. Oil Pump
  7. Oil Pipe
  8. Oil Screen
  9. Oil Pressure Relief Valve
 10. Oil Filter
 11. Oil Pressure Switch
 12. Main Oil Passage
 13. Engine Oil
