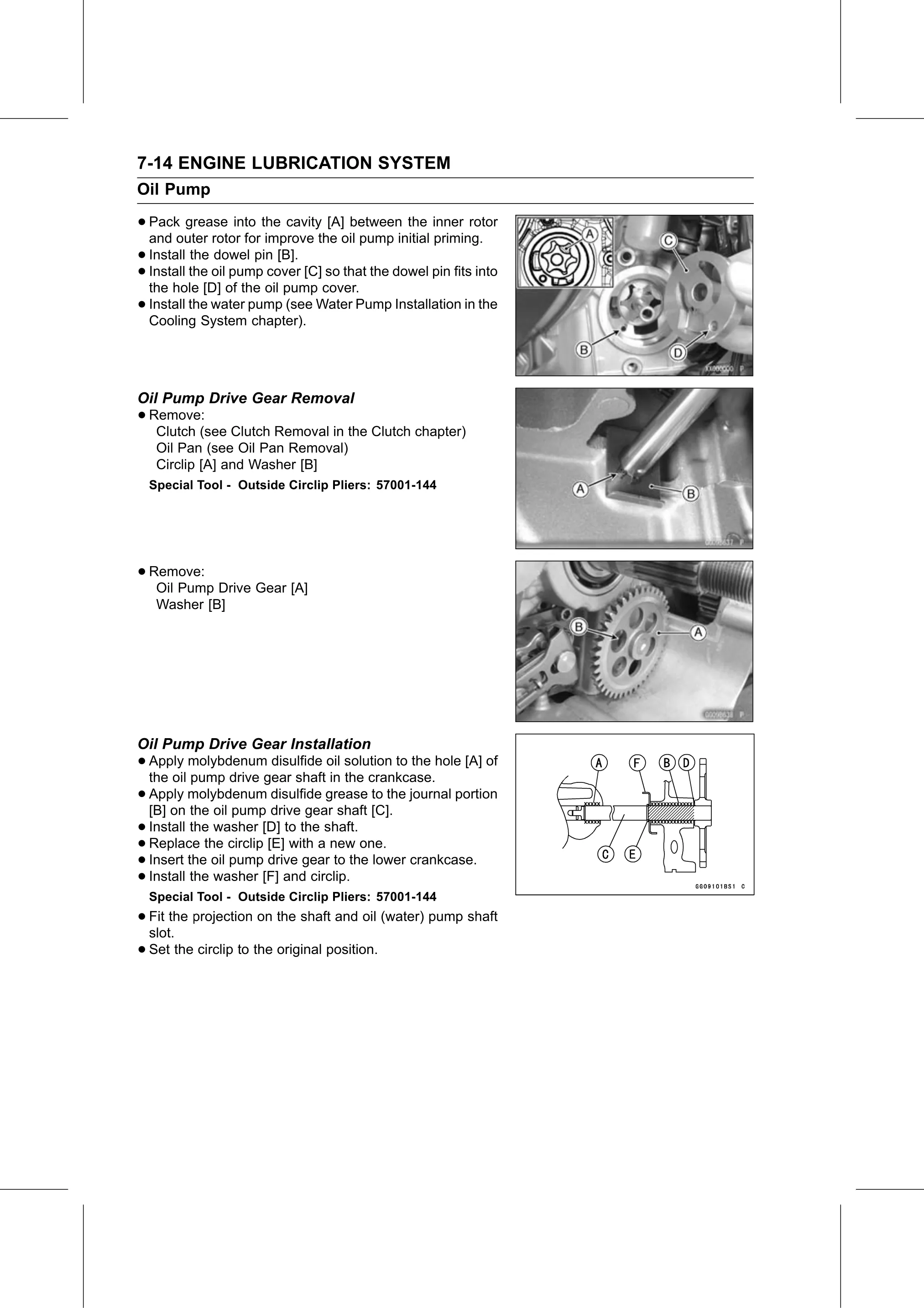

7-14 ENGINE LUBRICATION SYSTEM
Oil Pump

• Pack    grease into the cavity [A] between the inner rotor
  and outer rotor for improve the oil pump initial priming.
• Install  the dowel pin [B].
• the hole [D]oilofpump
  Install the            cover [C] so that the dowel pin fits into
                     the oil pump cover.
• Install the water pump (see Water Pump Installation in the
  Cooling System chapter).

Oil Pump Drive Gear Removal
• Remove:
   Clutch (see Clutch Removal in the Clutch chapter)
   Oil Pan (see Oil Pan Removal)
   Circlip [A] and Washer [B]
  Special Tool - Outside Circlip Pliers: 57001-144

• Remove:
   Oil Pump Drive Gear [A]
   Washer [B]

Oil Pump Drive Gear Installation
• Apply   molybdenum disulfide oil solution to the hole [A] of
  the oil pump drive gear shaft in the crankcase.
• Apply   molybdenum disulfide grease to the journal portion
  [B] on the oil pump drive gear shaft [C].
• Install the washer [D] to the shaft.
• Insert thetheoil circlip
  Replace                  [E] with a new one.
• Install the washer [F]drive
                   pump          gear to the lower crankcase.
•                             and  circlip.
  Special Tool - Outside Circlip Pliers: 57001-144
• Fit the projection on the shaft and oil (water) pump shaft
  slot.
• Set the circlip to the original position.
