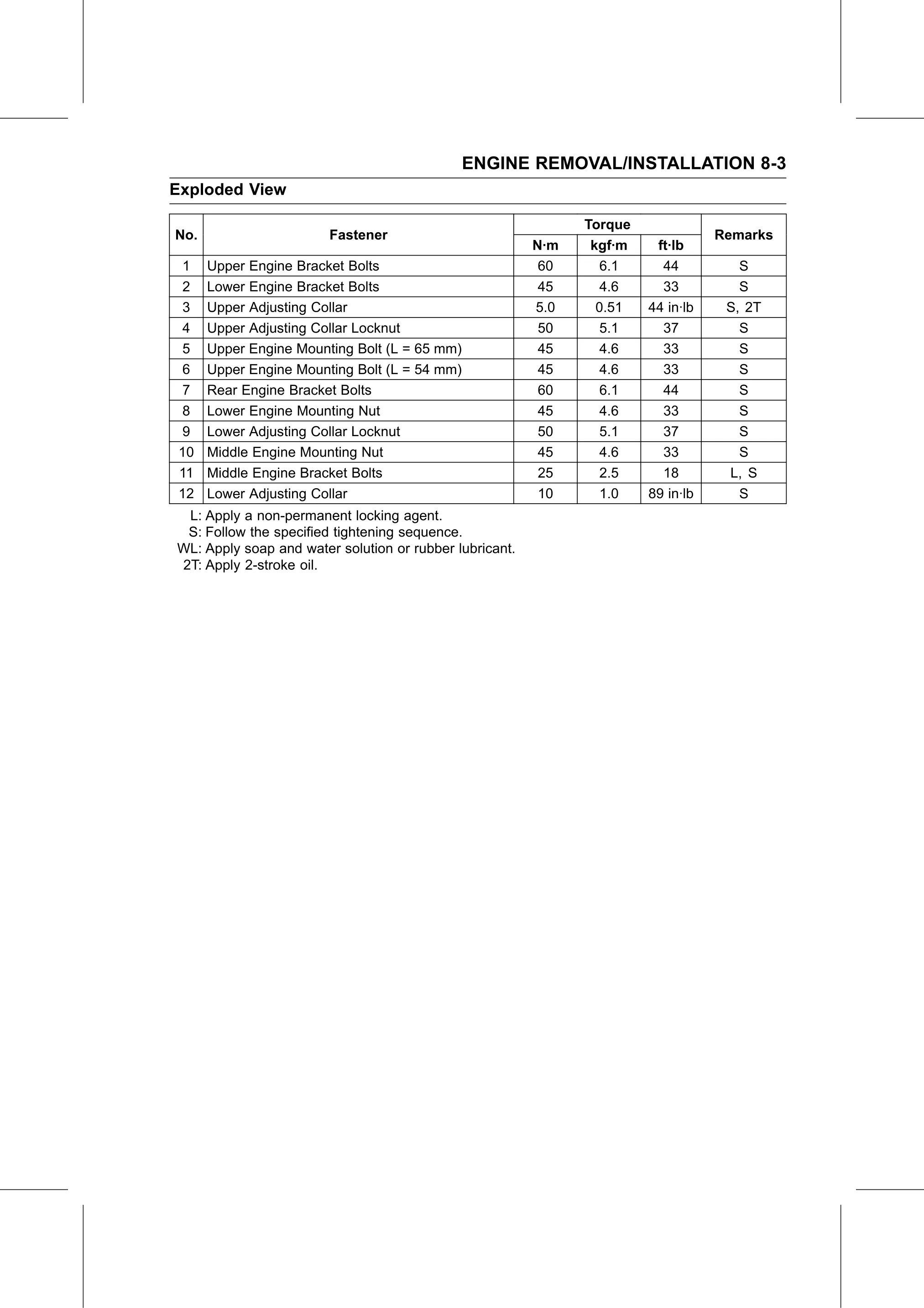

ENGINE REMOVAL/INSTALLATION 8-3
Exploded View

                                                               Torque
No.                     Fastener                                                   Remarks
                                                         N·m    kgf·m    ft·lb
  1   Upper Engine Bracket Bolts                          60      6.1     44          S
  2   Lower Engine Bracket Bolts                          45      4.6     33          S
  3   Upper Adjusting Collar                             5.0     0.51   44 in·lb    S, 2T
  4   Upper Adjusting Collar Locknut                      50      5.1     37          S
  5   Upper Engine Mounting Bolt (L = 65 mm)              45      4.6     33          S
  6   Upper Engine Mounting Bolt (L = 54 mm)              45      4.6     33          S
  7   Rear Engine Bracket Bolts                           60      6.1     44          S
  8   Lower Engine Mounting Nut                           45      4.6     33          S
  9   Lower Adjusting Collar Locknut                      50      5.1     37          S
 10   Middle Engine Mounting Nut                          45      4.6     33          S
 11   Middle Engine Bracket Bolts                         25      2.5     18        L, S
 12   Lower Adjusting Collar                              10      1.0   89 in·lb      S
 L: Apply a non-permanent locking agent.
 S: Follow the specified tightening sequence.
WL: Apply soap and water solution or rubber lubricant.
2T: Apply 2-stroke oil.
