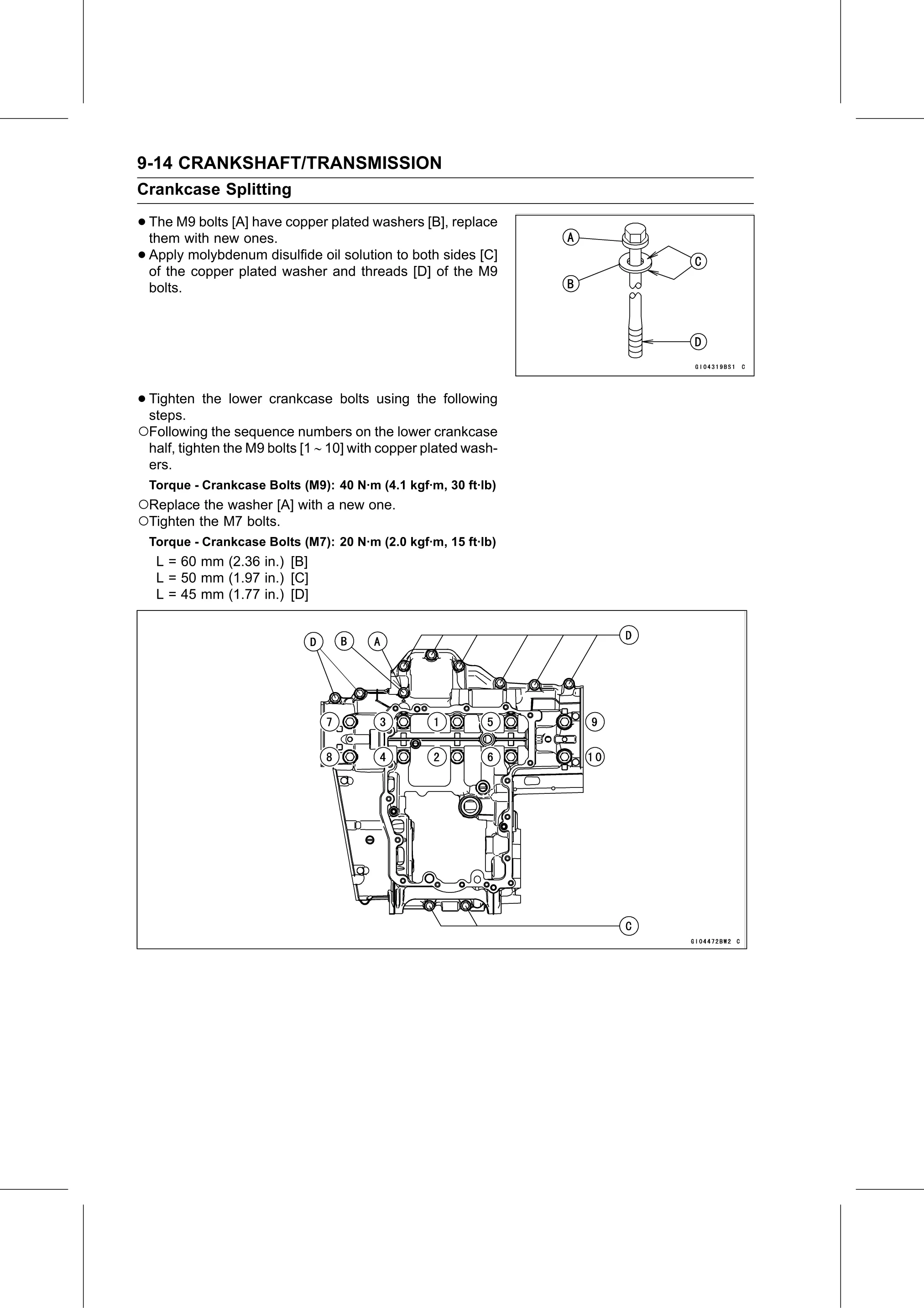

9-14 CRANKSHAFT/TRANSMISSION
Crankcase Splitting

• The  M9 bolts [A] have copper plated washers [B], replace
  them with new ones.
• Apply molybdenum disulfide oil solution to both sides [C]
  of the copper plated washer and threads [D] of the M9
 bolts.

• Tighten
  steps.
          the lower crankcase bolts using the following

○Following the sequence numbers on the lower crankcase
 half, tighten the M9 bolts [1 ∼ 10] with copper plated wash-
 ers.
 Torque - Crankcase Bolts (M9): 40 N·m (4.1 kgf·m, 30 ft·lb)
○Replace the washer [A] with a new one.
○Tighten the M7 bolts.
 Torque - Crankcase Bolts (M7): 20 N·m (2.0 kgf·m, 15 ft·lb)
   L = 60 mm (2.36 in.) [B]
   L = 50 mm (1.97 in.) [C]
   L = 45 mm (1.77 in.) [D]
