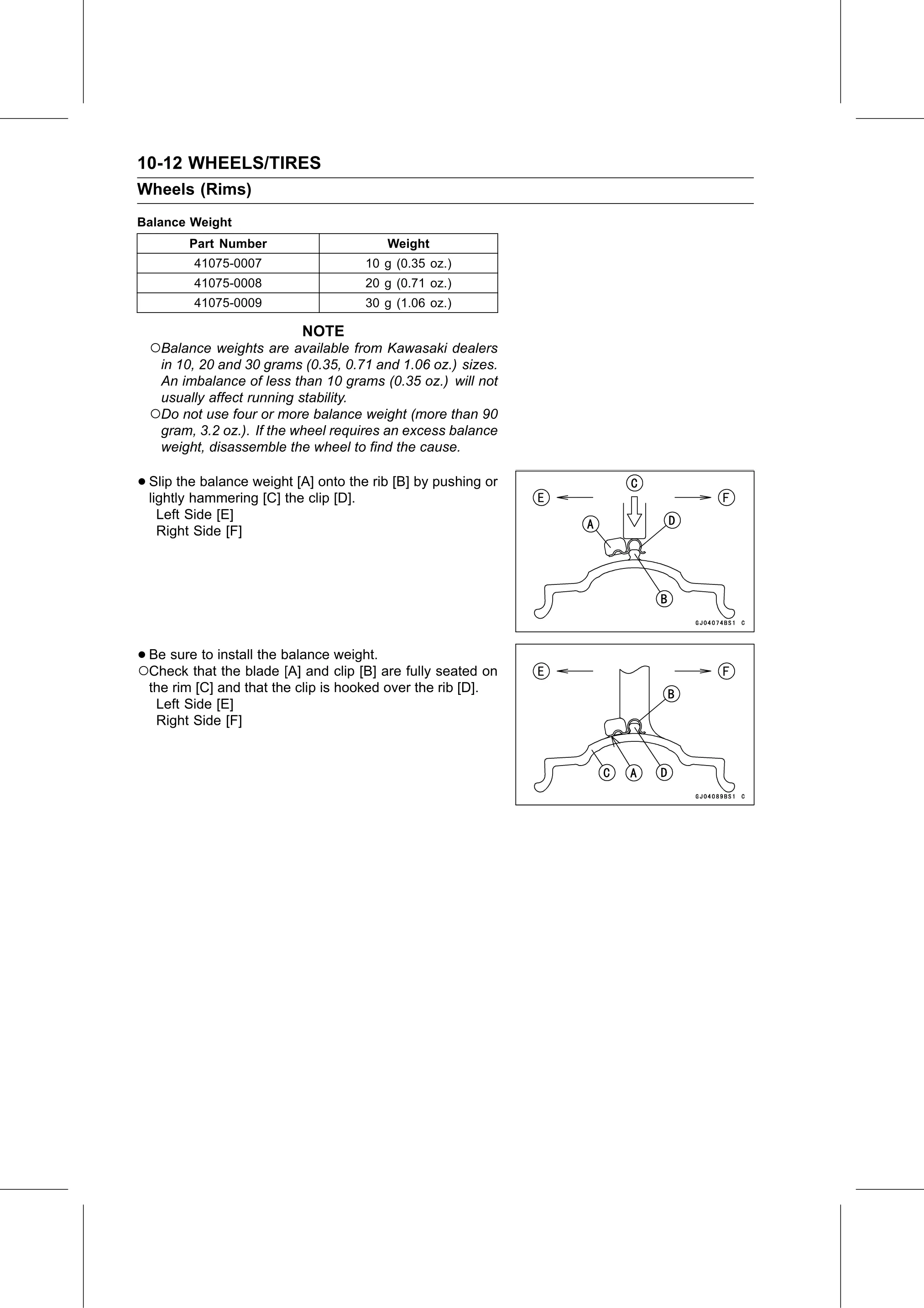

10-12 WHEELS/TIRES
Wheels (Rims)
Balance Weight
        Part Number                        Weight
         41075-0007                    10 g (0.35 oz.)
         41075-0008                    20 g (0.71 oz.)
         41075-0009                    30 g (1.06 oz.)

                            NOTE
  ○Balance weights are available from Kawasaki dealers
   in 10, 20 and 30 grams (0.35, 0.71 and 1.06 oz.) sizes.
   An imbalance of less than 10 grams (0.35 oz.) will not
   usually affect running stability.
  ○Do not use four or more balance weight (more than 90
   gram, 3.2 oz.). If the wheel requires an excess balance
   weight, disassemble the wheel to find the cause.

• Slip  the balance weight [A] onto the rib [B] by pushing or
  lightly hammering [C] the clip [D].
   Left Side [E]
   Right Side [F]

•○Be sure to install the balance weight.
  Check that the blade [A] and clip [B] are fully seated on
  the rim [C] and that the clip is hooked over the rib [D].
   Left Side [E]
   Right Side [F]
