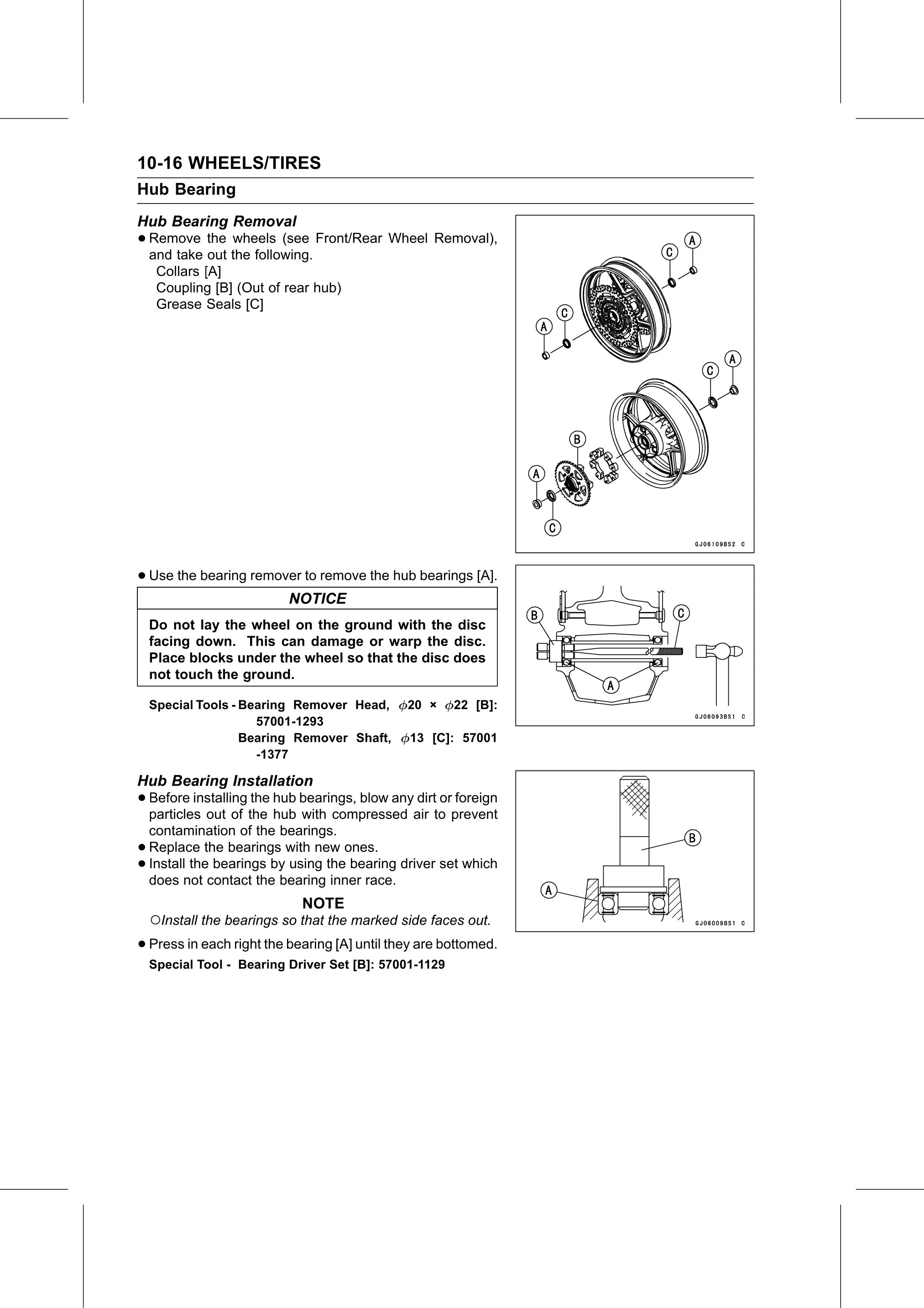

10-16 WHEELS/TIRES
Hub Bearing
Hub Bearing Removal
• Remove   the wheels (see Front/Rear Wheel Removal),
  and take out the following.
     Collars [A]
     Coupling [B] (Out of rear hub)
     Grease Seals [C]

• Use the bearing remover to remove the hub bearings [A].
                           NOTICE
    Do not lay the wheel on the ground with the disc
    facing down. This can damage or warp the disc.
    Place blocks under the wheel so that the disc does
    not touch the ground.

    Special Tools - Bearing Remover Head,      20 ×     22 [B]:
                      57001-1293
                    Bearing Remover Shaft,     13 [C]: 57001
                      -1377

Hub Bearing Installation
• Before  installing the hub bearings, blow any dirt or foreign
  particles out of the hub with compressed air to prevent
    contamination of the bearings.
•   Replace the bearings with new ones.
•   Install the bearings by using the bearing driver set which
    does not contact the bearing inner race.
                             NOTE
    ○Install the bearings so that the marked side faces out.
• Press in each right the bearing [A] until they are bottomed.
    Special Tool - Bearing Driver Set [B]: 57001-1129
