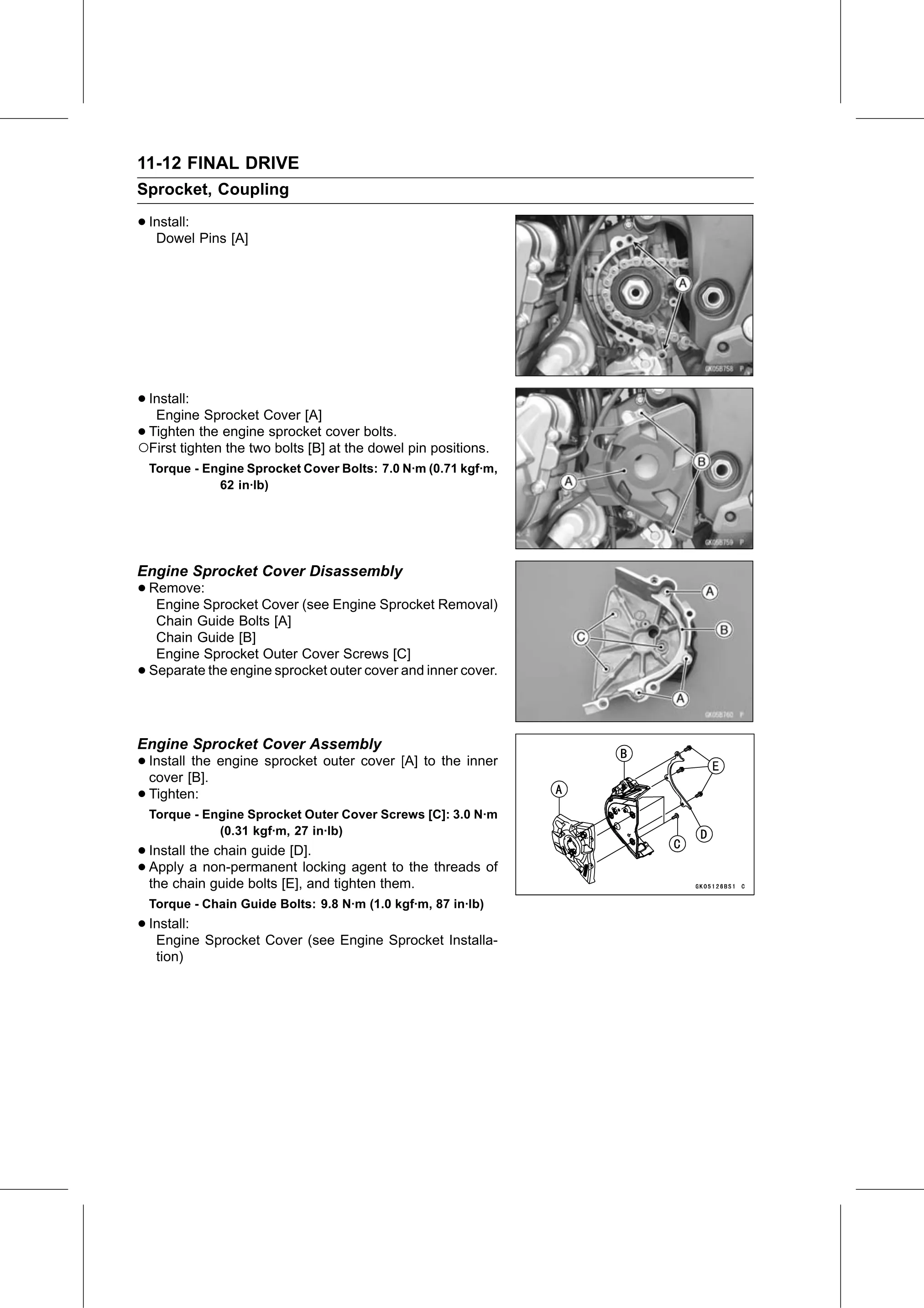

11-12 FINAL DRIVE
Sprocket, Coupling

• Install:
   Dowel Pins [A]

• Install:
   Engine Sprocket Cover [A]
•○Tighten   the engine sprocket cover bolts.
  First tighten the two bolts [B] at the dowel pin positions.
    Torque - Engine Sprocket Cover Bolts: 7.0 N·m (0.71 kgf·m,
               62 in·lb)

Engine Sprocket Cover Disassembly
• Remove:
   Engine Sprocket Cover (see Engine Sprocket Removal)
     Chain Guide Bolts [A]
     Chain Guide [B]
     Engine Sprocket Outer Cover Screws [C]
•   Separate the engine sprocket outer cover and inner cover.

Engine Sprocket Cover Assembly
• Install the engine sprocket outer cover [A] to the inner
  cover [B].
• Tighten:
    Torque - Engine Sprocket Outer Cover Screws [C]: 3.0 N·m
               (0.31 kgf·m, 27 in·lb)
• Install the chain guide [D].
• the chainnon-permanent
  Apply   a                  locking agent to the threads of
             guide bolts [E], and tighten them.
    Torque - Chain Guide Bolts: 9.8 N·m (1.0 kgf·m, 87 in·lb)
• Install:
   Engine Sprocket Cover (see Engine Sprocket Installa-
     tion)
