12-28 BRAKES
Anti-Lock Brake System

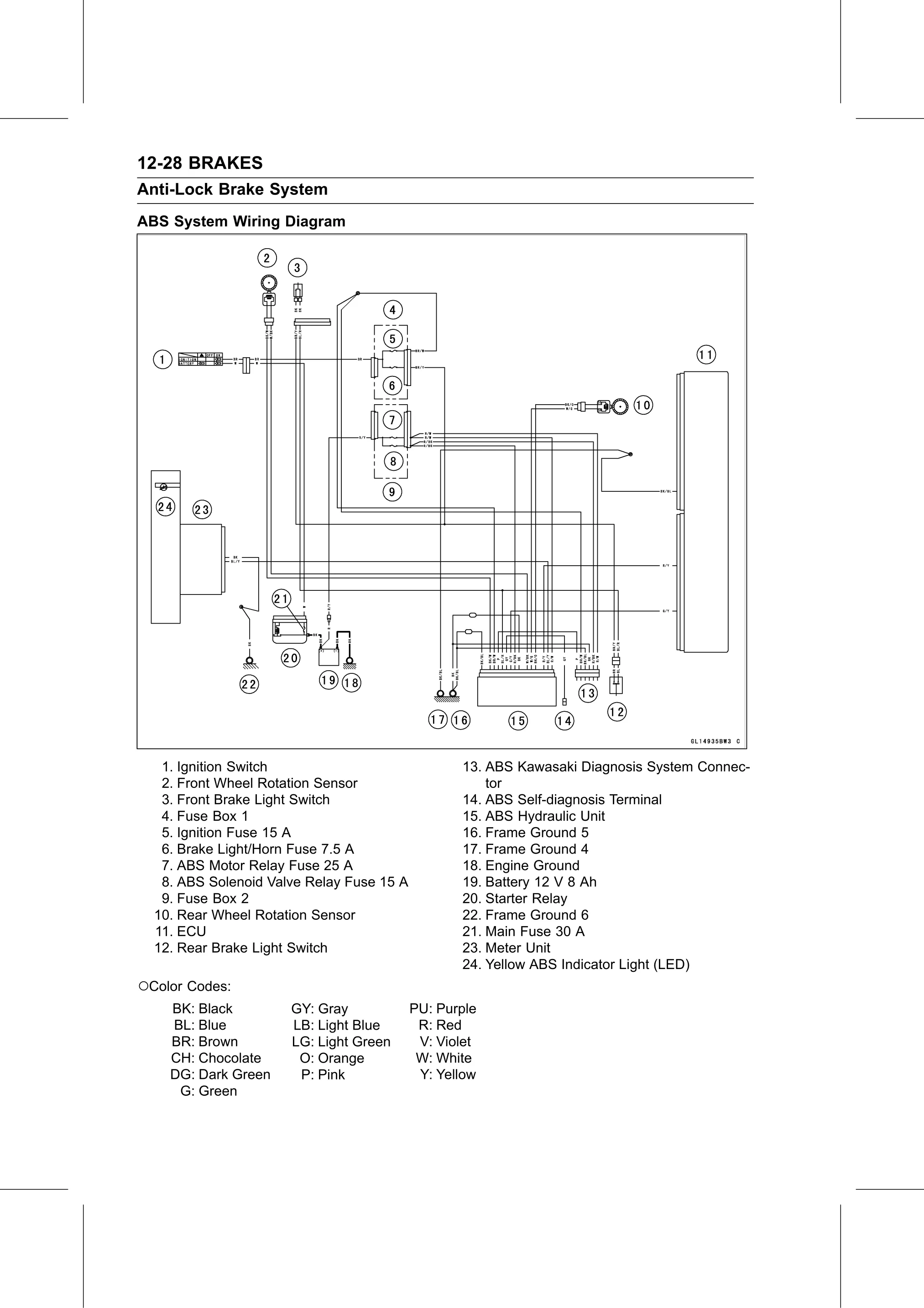

ABS System Wiring Diagram

   1. Ignition Switch                             13. ABS Kawasaki Diagnosis System Connec-
   2. Front Wheel Rotation Sensor                     tor
   3. Front Brake Light Switch                    14. ABS Self-diagnosis Terminal
   4. Fuse Box 1                                  15. ABS Hydraulic Unit
   5. Ignition Fuse 15 A                          16. Frame Ground 5
   6. Brake Light/Horn Fuse 7.5 A                 17. Frame Ground 4
   7. ABS Motor Relay Fuse 25 A                   18. Engine Ground
   8. ABS Solenoid Valve Relay Fuse 15 A          19. Battery 12 V 8 Ah
   9. Fuse Box 2                                  20. Starter Relay
  10. Rear Wheel Rotation Sensor                  22. Frame Ground 6
  11. ECU                                         21. Main Fuse 30 A
  12. Rear Brake Light Switch                     23. Meter Unit
                                                  24. Yellow ABS Indicator Light (LED)
○Color Codes:
    BK: Black         GY: Gray             PU: Purple
    BL: Blue          LB: Light Blue        R: Red
    BR: Brown         LG: Light Green       V: Violet
    CH: Chocolate      O: Orange            W: White
    DG: Dark Green     P: Pink              Y: Yellow
     G: Green
