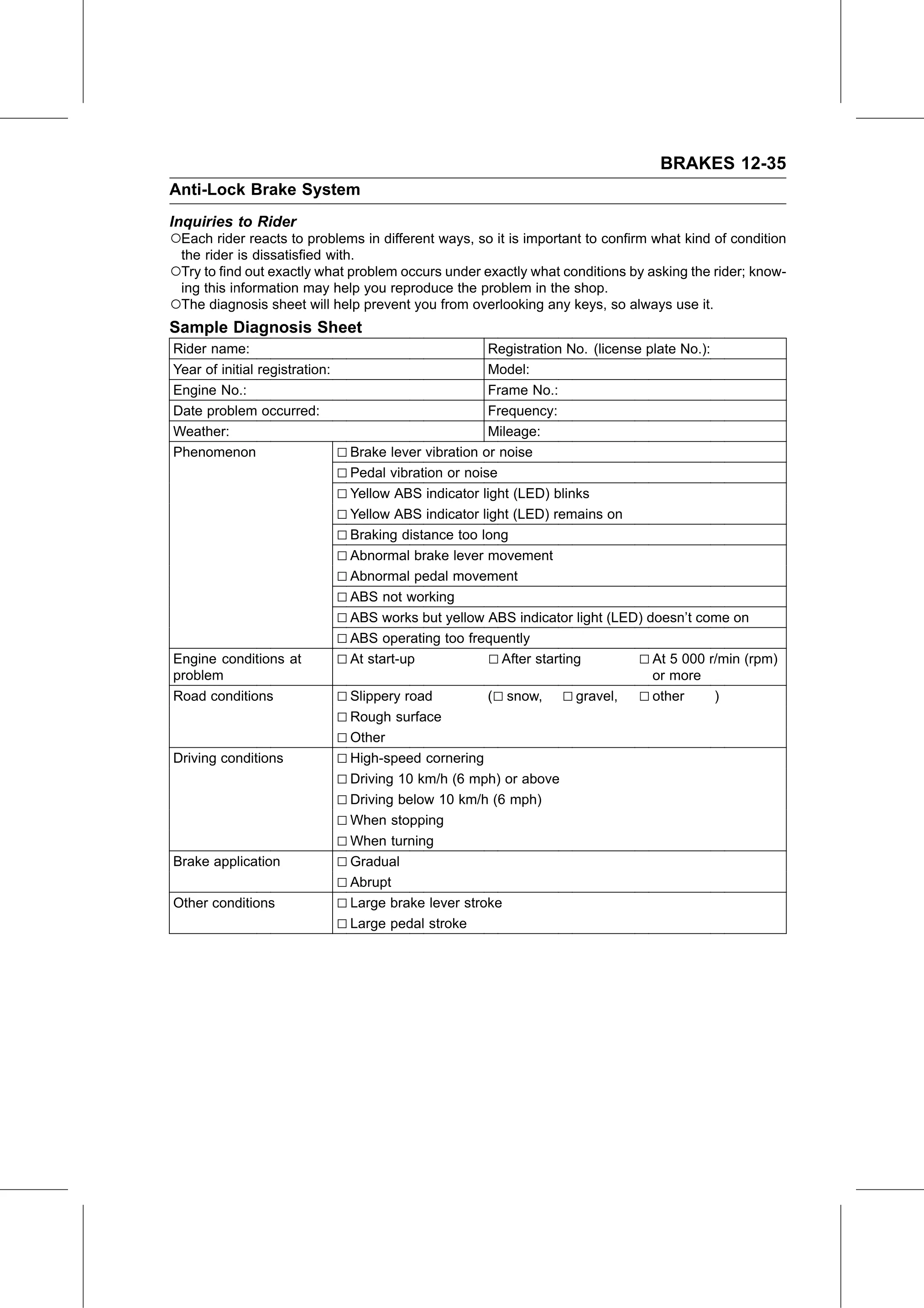

BRAKES 12-35
Anti-Lock Brake System
Inquiries to Rider
○Each rider reacts to problems in different ways, so it is important to confirm what kind of condition
 the rider is dissatisfied with.
○Try to find out exactly what problem occurs under exactly what conditions by asking the rider; know-
 ing this information may help you reproduce the problem in the shop.
○The diagnosis sheet will help prevent you from overlooking any keys, so always use it.
Sample Diagnosis Sheet
Rider name:                                            Registration No. (license plate No.):
Year of initial registration:                          Model:
Engine No.:                                            Frame No.:
Date problem occurred:                                 Frequency:
Weather:                                               Mileage:
Phenomenon                    □ Brake lever vibration or noise
                              □ Pedal vibration or noise
                              □ Yellow ABS indicator light (LED) blinks
                              □ Yellow ABS indicator light (LED) remains on
                              □ Braking distance too long
                              □ Abnormal brake lever movement
                              □ Abnormal pedal movement
                              □ ABS not working
                              □ ABS works but yellow ABS indicator light (LED) doesn’t come on
                              □ ABS operating too frequently
Engine conditions at          □ At start-up            □ After starting         □ At 5 000 r/min (rpm)
problem                                                                           or more
Road conditions               □ Slippery road          (□ snow, □ gravel, □ other            )
                              □ Rough surface
                              □ Other
Driving conditions            □ High-speed cornering
                              □ Driving 10 km/h (6 mph) or above
                              □ Driving below 10 km/h (6 mph)
                              □ When stopping
                              □ When turning
Brake application             □ Gradual
                              □ Abrupt
Other conditions              □ Large brake lever stroke
                              □ Large pedal stroke
