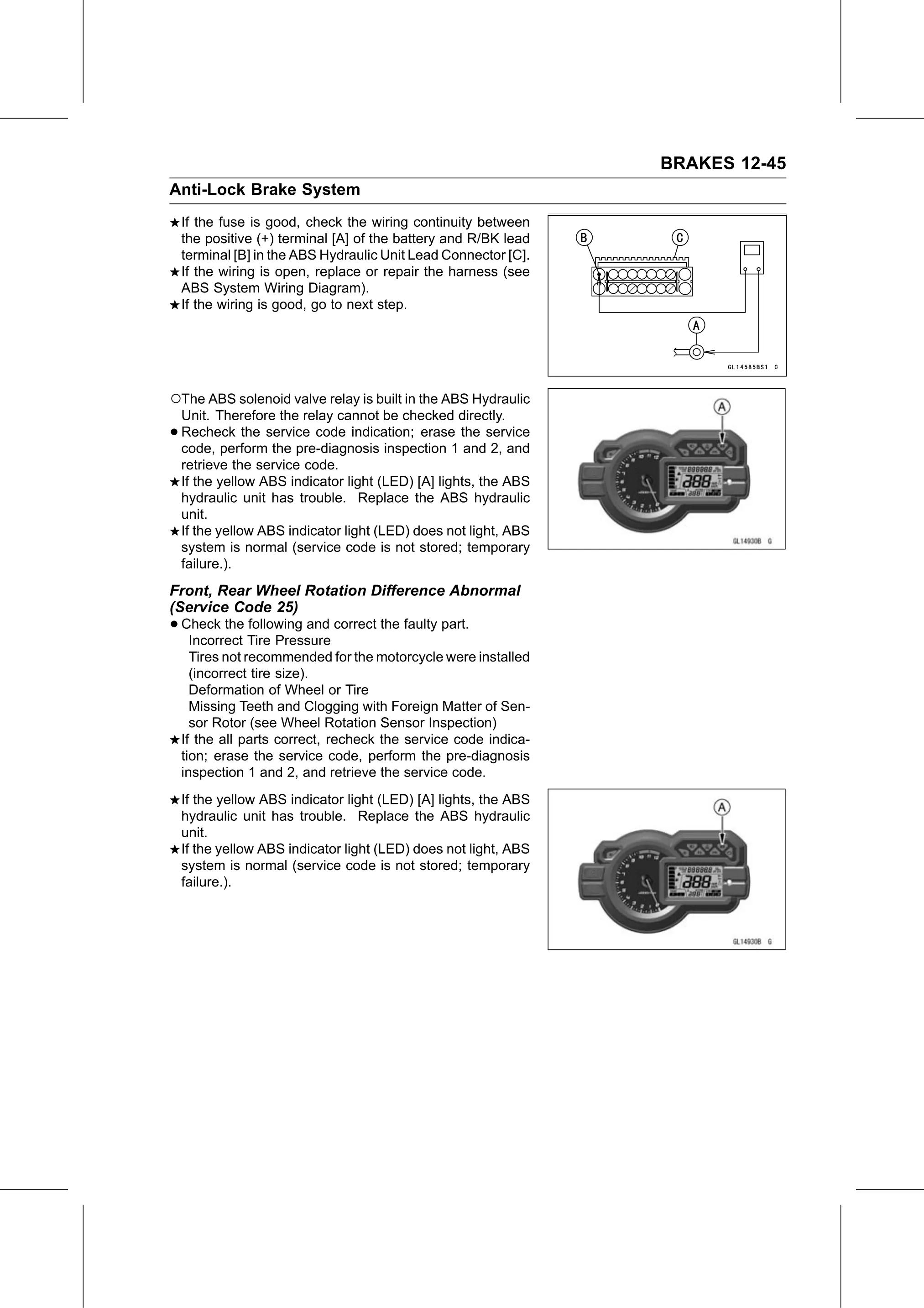

BRAKES 12-45
Anti-Lock Brake System
    If the fuse is good, check the wiring continuity between
    the positive (+) terminal [A] of the battery and R/BK lead
    terminal [B] in the ABS Hydraulic Unit Lead Connector [C].
    If the wiring is open, replace or repair the harness (see
    ABS System Wiring Diagram).
    If the wiring is good, go to next step.

○The ABS solenoid valve relay is built in the ABS Hydraulic
    Unit. Therefore the relay cannot be checked directly.
•   Recheck the service code indication; erase the service
    code, perform the pre-diagnosis inspection 1 and 2, and
    retrieve the service code.
    If the yellow ABS indicator light (LED) [A] lights, the ABS
    hydraulic unit has trouble. Replace the ABS hydraulic
    unit.
    If the yellow ABS indicator light (LED) does not light, ABS
    system is normal (service code is not stored; temporary
    failure.).
Front, Rear Wheel Rotation Difference Abnormal
(Service Code 25)
• Check  the following and correct the faulty part.
   Incorrect Tire Pressure
      Tires not recommended for the motorcycle were installed
      (incorrect tire size).
      Deformation of Wheel or Tire
      Missing Teeth and Clogging with Foreign Matter of Sen-
      sor Rotor (see Wheel Rotation Sensor Inspection)
    If the all parts correct, recheck the service code indica-
    tion; erase the service code, perform the pre-diagnosis
    inspection 1 and 2, and retrieve the service code.
    If the yellow ABS indicator light (LED) [A] lights, the ABS
    hydraulic unit has trouble. Replace the ABS hydraulic
    unit.
    If the yellow ABS indicator light (LED) does not light, ABS
    system is normal (service code is not stored; temporary
    failure.).
