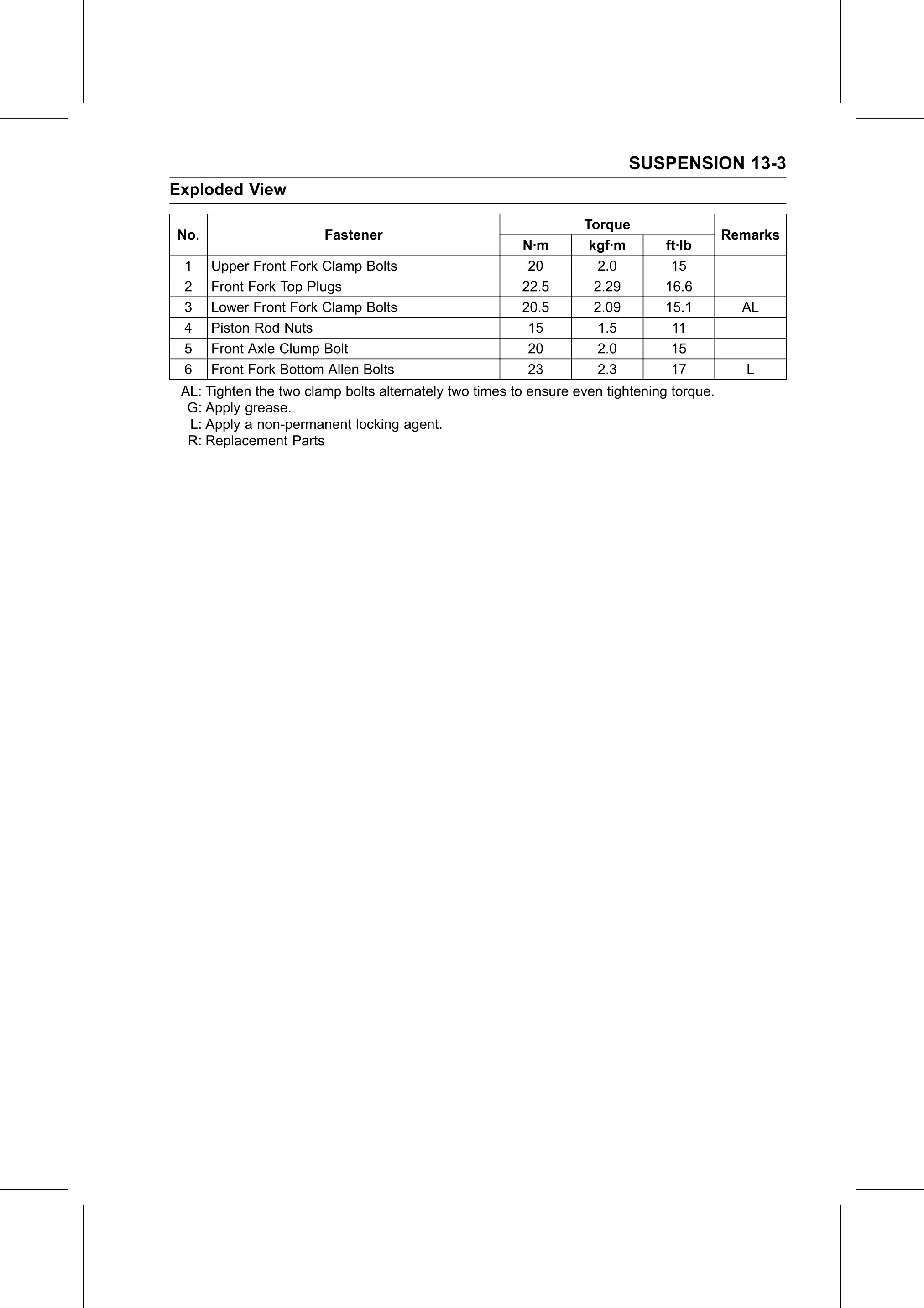

SUSPENSION 13-3
Exploded View

                                                                  Torque
No.                     Fastener                                                           Remarks
                                                        N·m        kgf·m       ft·lb
 1    Upper Front Fork Clamp Bolts                       20          2.0        15
 2    Front Fork Top Plugs                              22.5        2.29       16.6
 3    Lower Front Fork Clamp Bolts                      20.5        2.09       15.1          AL
 4    Piston Rod Nuts                                    15          1.5        11
 5    Front Axle Clump Bolt                              20          2.0        15
 6    Front Fork Bottom Allen Bolts                      23          2.3        17            L
 AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
  G: Apply grease.
  L: Apply a non-permanent locking agent.
  R: Replacement Parts
