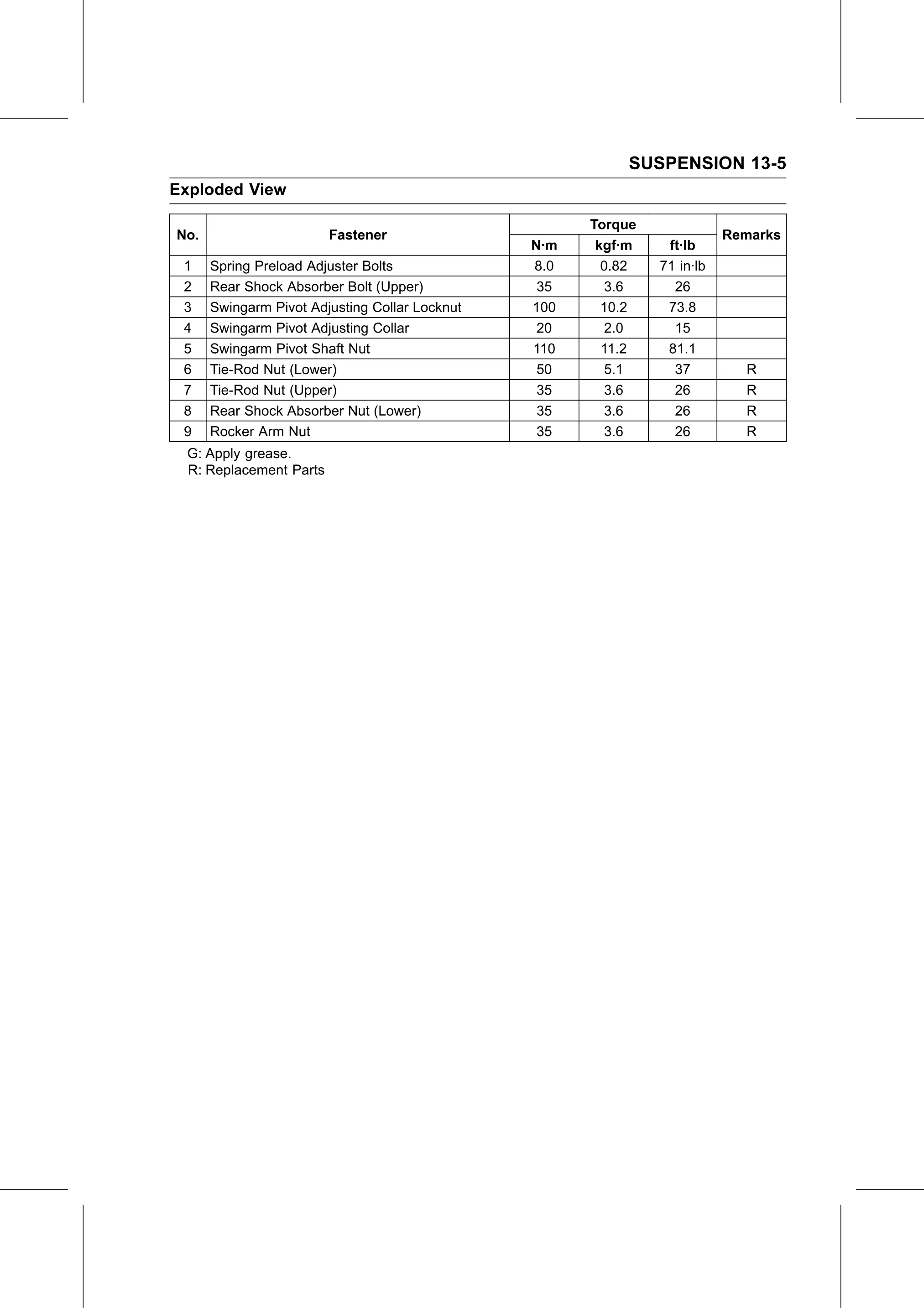

SUSPENSION 13-5
Exploded View

                                                      Torque
No.                     Fastener                                          Remarks
                                                N·m    kgf·m    ft·lb
 1    Spring Preload Adjuster Bolts             8.0     0.82   71 in·lb
 2    Rear Shock Absorber Bolt (Upper)           35      3.6     26
 3    Swingarm Pivot Adjusting Collar Locknut   100     10.2    73.8
 4    Swingarm Pivot Adjusting Collar            20      2.0     15
 5    Swingarm Pivot Shaft Nut                  110     11.2    81.1
 6    Tie-Rod Nut (Lower)                        50      5.1     37         R
 7    Tie-Rod Nut (Upper)                        35      3.6     26         R
 8    Rear Shock Absorber Nut (Lower)            35      3.6     26         R
 9    Rocker Arm Nut                             35      3.6     26         R
 G: Apply grease.
 R: Replacement Parts
