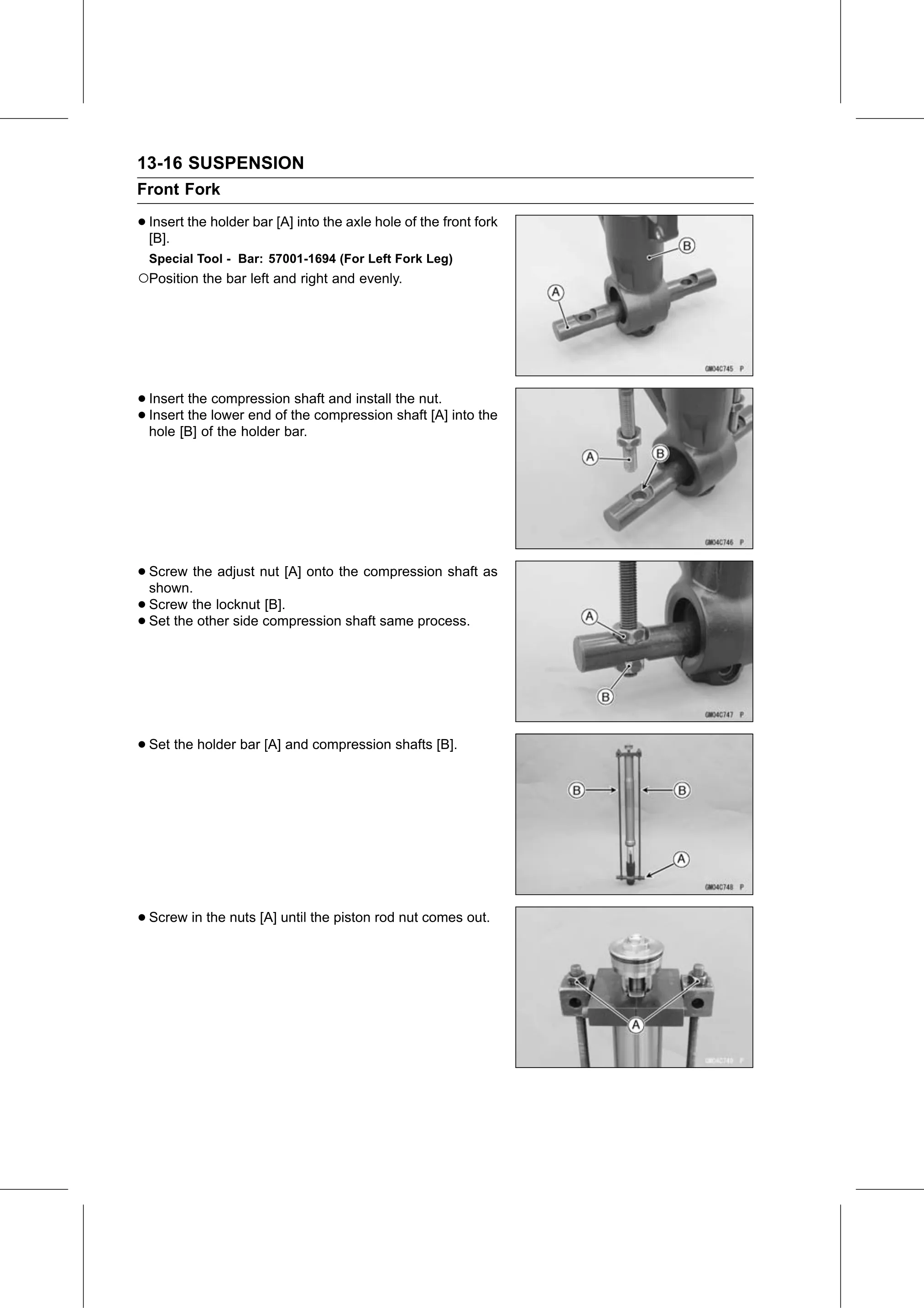

13-16 SUSPENSION
Front Fork

• Insert
  [B].
         the holder bar [A] into the axle hole of the front fork

  Special Tool - Bar: 57001-1694 (For Left Fork Leg)
○Position the bar left and right and evenly.

• Insert the compression shaft and install the nut.
• hole [B] oflower
  Insert the       end of the compression shaft [A] into the
              the holder bar.

• Screw
  shown.
         the adjust nut [A] onto the compression shaft as

• Screw  the locknut [B].
• Set the other side compression shaft same process.

• Set the holder bar [A] and compression shafts [B].

• Screw in the nuts [A] until the piston rod nut comes out.
