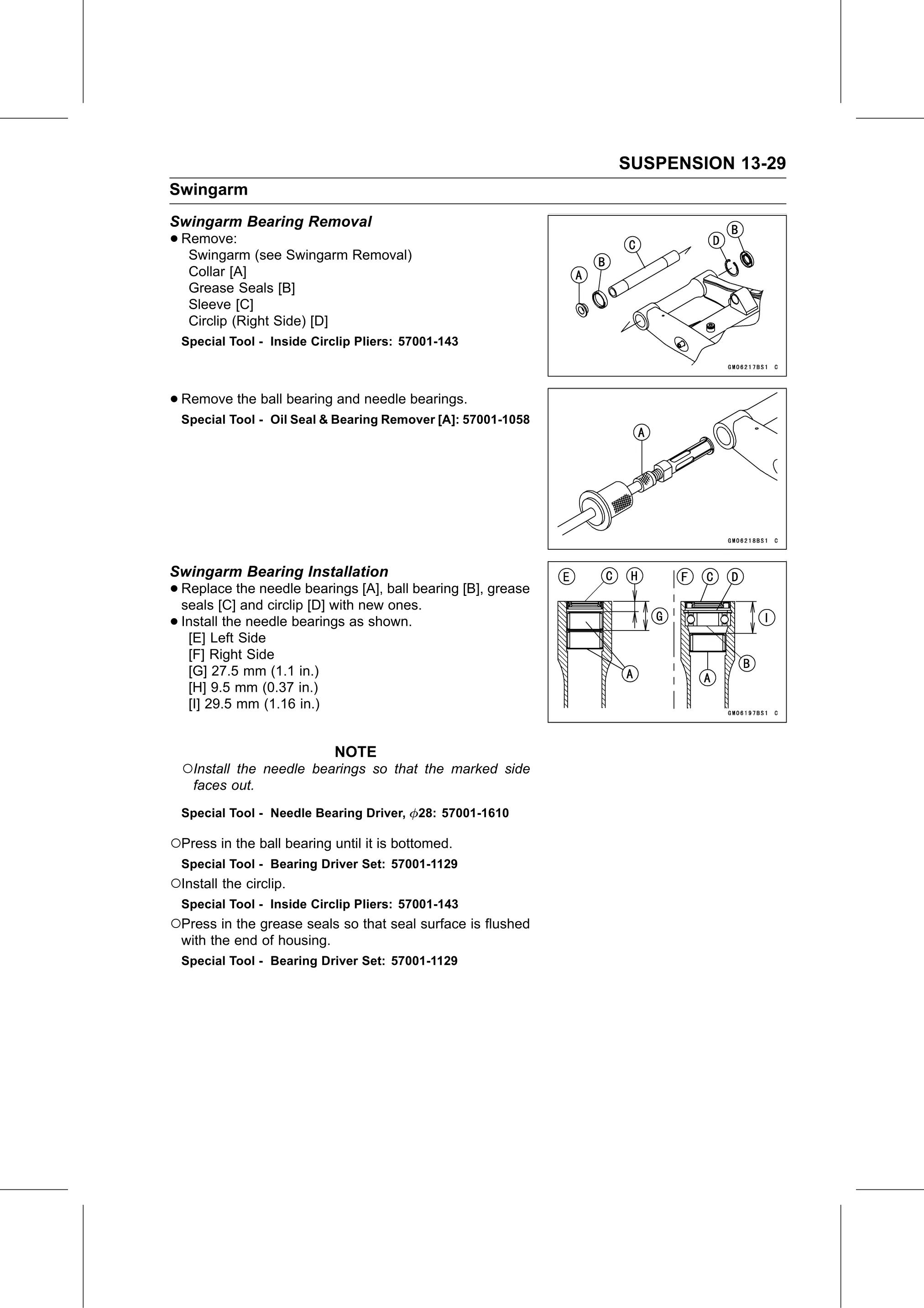

SUSPENSION 13-29
Swingarm
Swingarm Bearing Removal
• Remove:
   Swingarm (see Swingarm Removal)
   Collar [A]
   Grease Seals [B]
   Sleeve [C]
   Circlip (Right Side) [D]
  Special Tool - Inside Circlip Pliers: 57001-143

• Remove the ball bearing and needle bearings.
  Special Tool - Oil Seal & Bearing Remover [A]: 57001-1058

Swingarm Bearing Installation
• Replace   the needle bearings [A], ball bearing [B], grease
  seals [C] and circlip [D] with new ones.
• Install the needle bearings as shown.
   [E] Left Side
   [F] Right Side
   [G] 27.5 mm (1.1 in.)
   [H] 9.5 mm (0.37 in.)
   [I] 29.5 mm (1.16 in.)

                              NOTE
  ○Install the needle bearings so that the marked side
    faces out.
  Special Tool - Needle Bearing Driver,   28: 57001-1610

○Press in the ball bearing until it is bottomed.
  Special Tool - Bearing Driver Set: 57001-1129
○Install the circlip.
  Special Tool - Inside Circlip Pliers: 57001-143
○Press in the grease seals so that seal surface is flushed
  with the end of housing.
  Special Tool - Bearing Driver Set: 57001-1129
