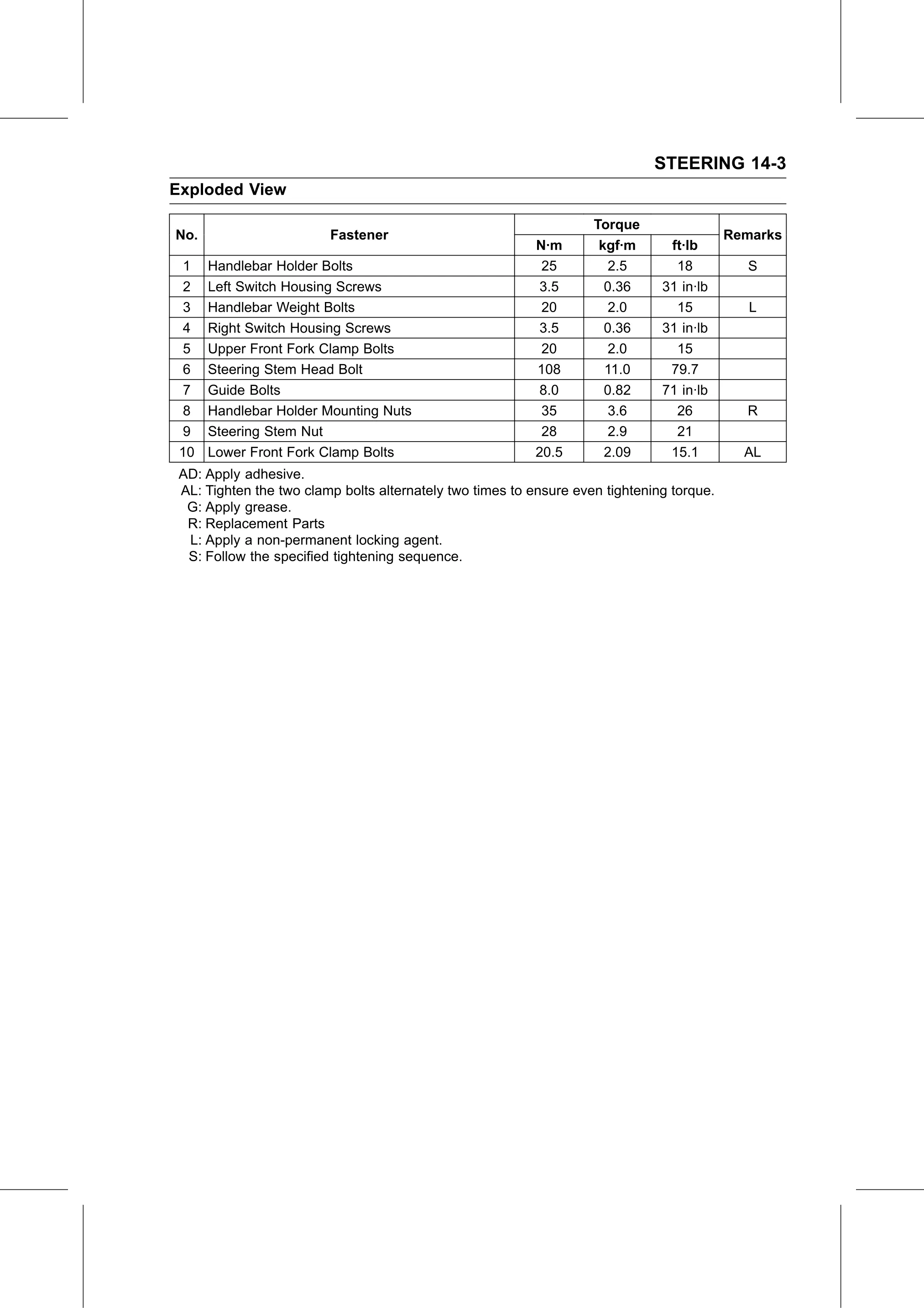

STEERING 14-3
Exploded View

                                                                    Torque
No.                      Fastener                                                          Remarks
                                                          N·m        kgf·m      ft·lb
  1   Handlebar Holder Bolts                               25         2.5        18          S
  2   Left Switch Housing Screws                           3.5        0.36     31 in·lb
  3   Handlebar Weight Bolts                               20         2.0        15           L
  4   Right Switch Housing Screws                          3.5        0.36     31 in·lb
  5   Upper Front Fork Clamp Bolts                         20         2.0        15
  6   Steering Stem Head Bolt                             108         11.0      79.7
  7   Guide Bolts                                          8.0        0.82     71 in·lb
  8   Handlebar Holder Mounting Nuts                       35         3.6        26          R
  9   Steering Stem Nut                                    28         2.9        21
 10   Lower Front Fork Clamp Bolts                        20.5        2.09      15.1         AL
 AD: Apply adhesive.
 AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
  G: Apply grease.
  R: Replacement Parts
  L: Apply a non-permanent locking agent.
  S: Follow the specified tightening sequence.
