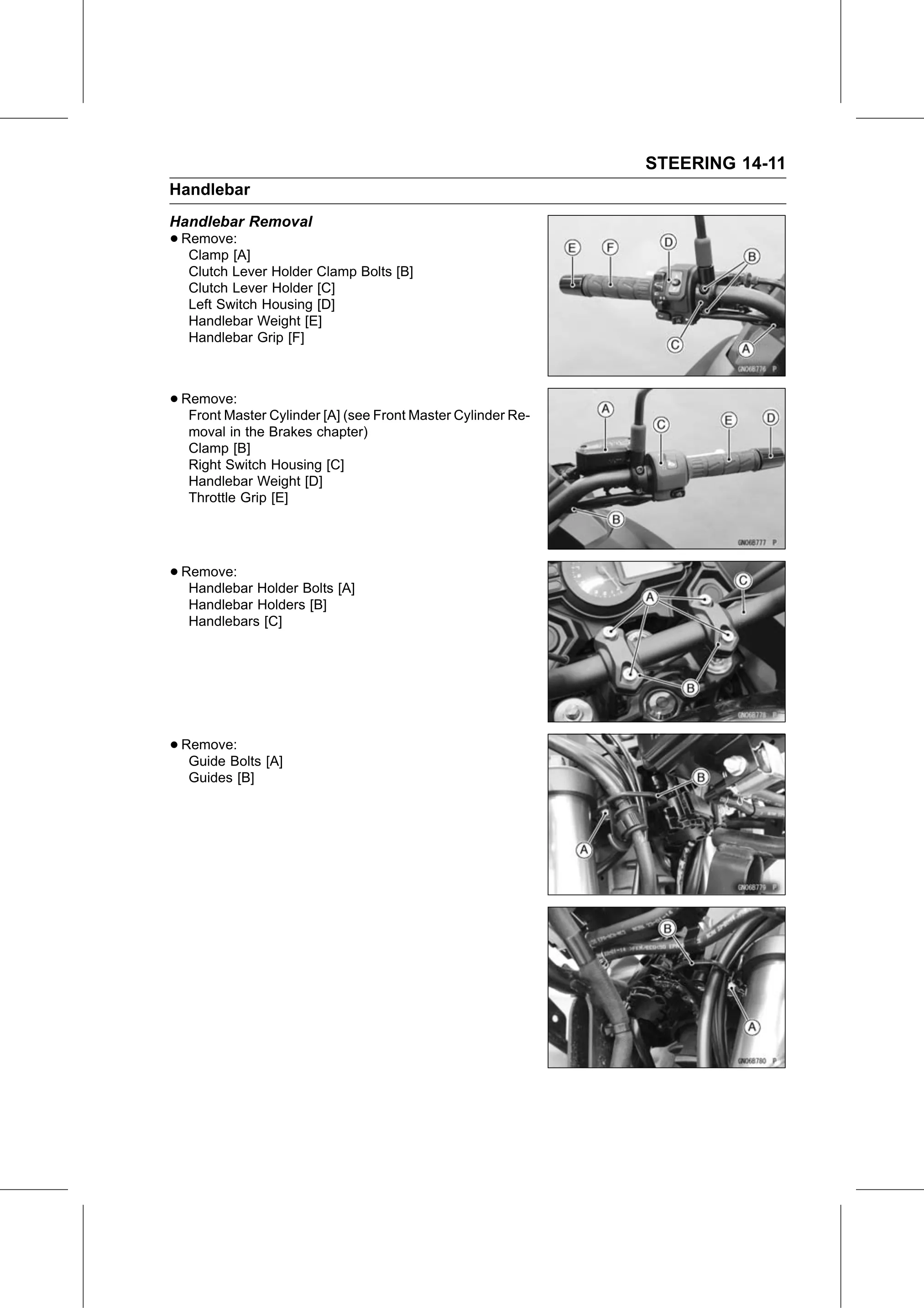

STEERING 14-11
Handlebar
Handlebar Removal
• Remove:
   Clamp [A]
   Clutch Lever Holder Clamp Bolts [B]
   Clutch Lever Holder [C]
   Left Switch Housing [D]
   Handlebar Weight [E]
   Handlebar Grip [F]

• Remove:
   Front Master Cylinder [A] (see Front Master Cylinder Re-
   moval in the Brakes chapter)
   Clamp [B]
   Right Switch Housing [C]
   Handlebar Weight [D]
   Throttle Grip [E]

• Remove:
   Handlebar Holder Bolts [A]
   Handlebar Holders [B]
   Handlebars [C]

• Remove:
   Guide Bolts [A]
   Guides [B]
