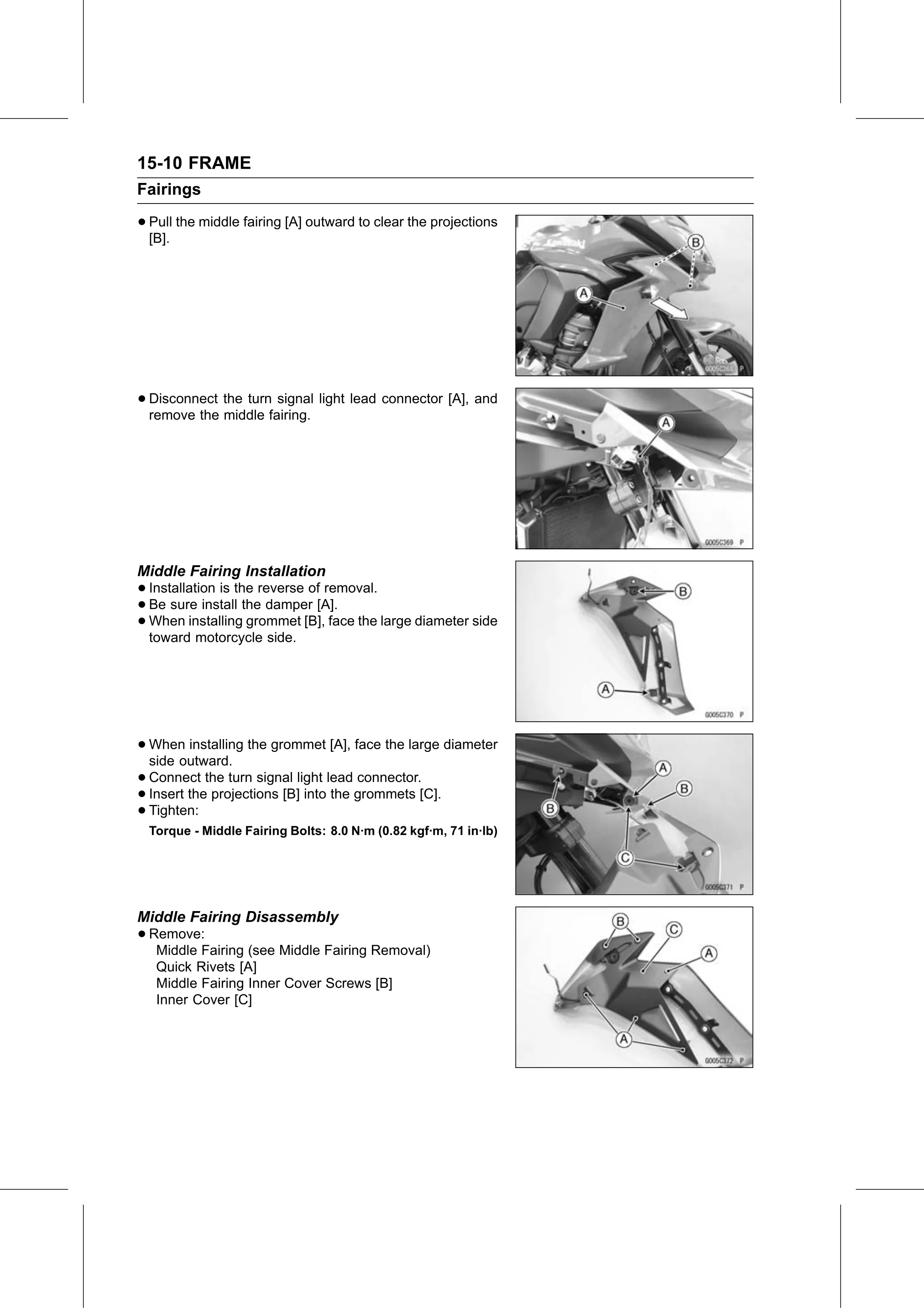

15-10 FRAME
Fairings

• Pull
  [B].
       the middle fairing [A] outward to clear the projections

• Disconnect the turn signal light lead connector [A], and
  remove the middle fairing.

Middle Fairing Installation
• Installation is the reverse of removal.
• Be  sure install the damper [A].
• towardinstalling
  When              grommet [B], face the large diameter side
           motorcycle side.

• When   installing the grommet [A], face the large diameter
  side outward.
• Connect   the turn signal light lead connector.
• Tighten: projections [B] into the grommets [C].
  Insert the
•
  Torque - Middle Fairing Bolts: 8.0 N·m (0.82 kgf·m, 71 in·lb)

Middle Fairing Disassembly
• Remove:
   Middle Fairing (see Middle Fairing Removal)
   Quick Rivets [A]
   Middle Fairing Inner Cover Screws [B]
   Inner Cover [C]
