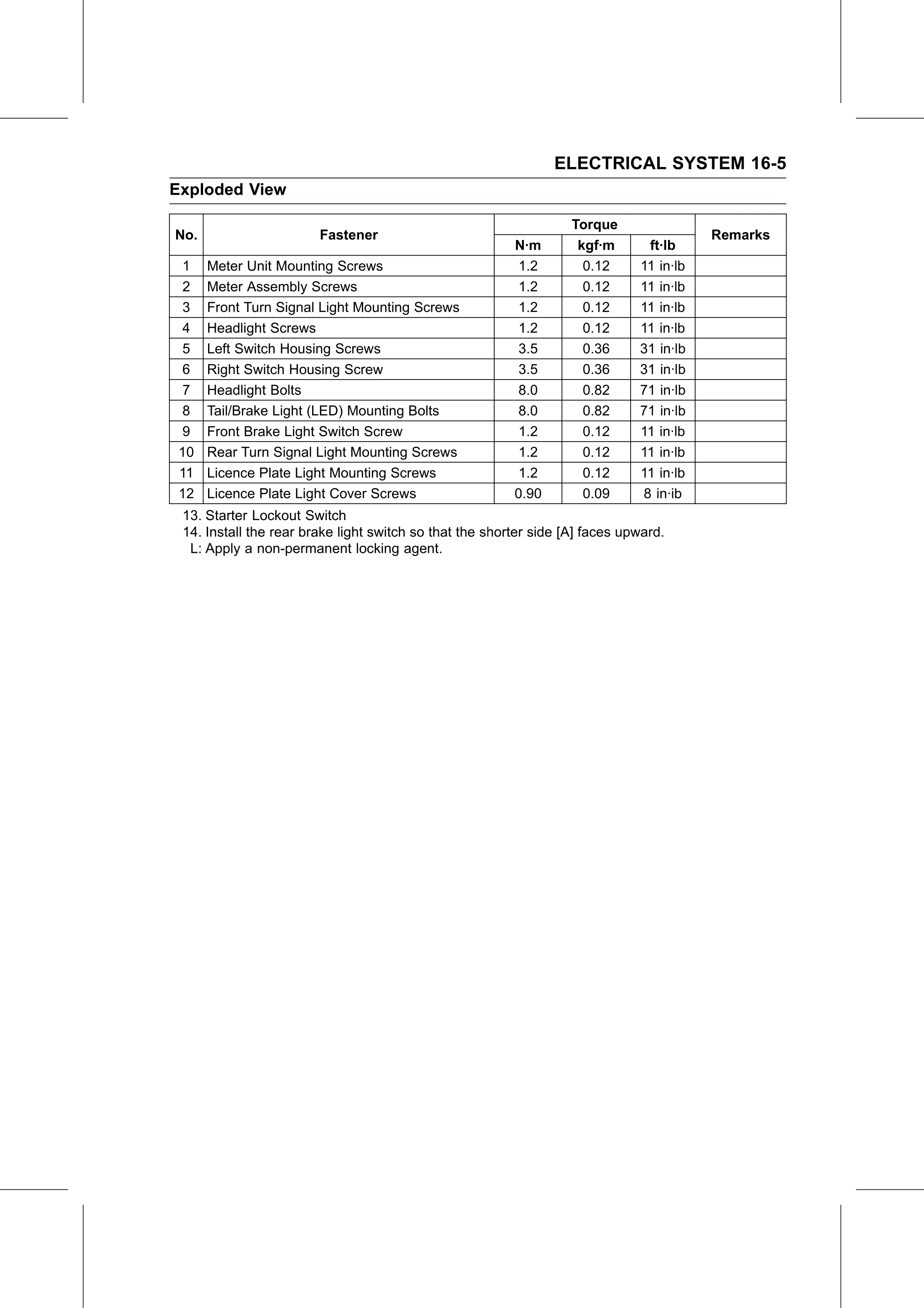

ELECTRICAL SYSTEM 16-5
Exploded View
Torque
No. Fastener Remarks
N·m kgf·m ft·lb
1 Meter Unit Mounting Screws 1.2 0.12 11 in·lb
2 Meter Assembly Screws 1.2 0.12 11 in·lb
3 Front Turn Signal Light Mounting Screws 1.2 0.12 11 in·lb
4 Headlight Screws 1.2 0.12 11 in·lb
5 Left Switch Housing Screws 3.5 0.36 31 in·lb
6 Right Switch Housing Screw 3.5 0.36 31 in·lb
7 Headlight Bolts 8.0 0.82 71 in·lb
8 Tail/Brake Light (LED) Mounting Bolts 8.0 0.82 71 in·lb
9 Front Brake Light Switch Screw 1.2 0.12 11 in·lb
10 Rear Turn Signal Light Mounting Screws 1.2 0.12 11 in·lb
11 Licence Plate Light Mounting Screws 1.2 0.12 11 in·lb
12 Licence Plate Light Cover Screws 0.90 0.09 8 in·ib
13. Starter Lockout Switch
14. Install the rear brake light switch so that the shorter side [A] faces upward.
L: Apply a non-permanent locking agent.
