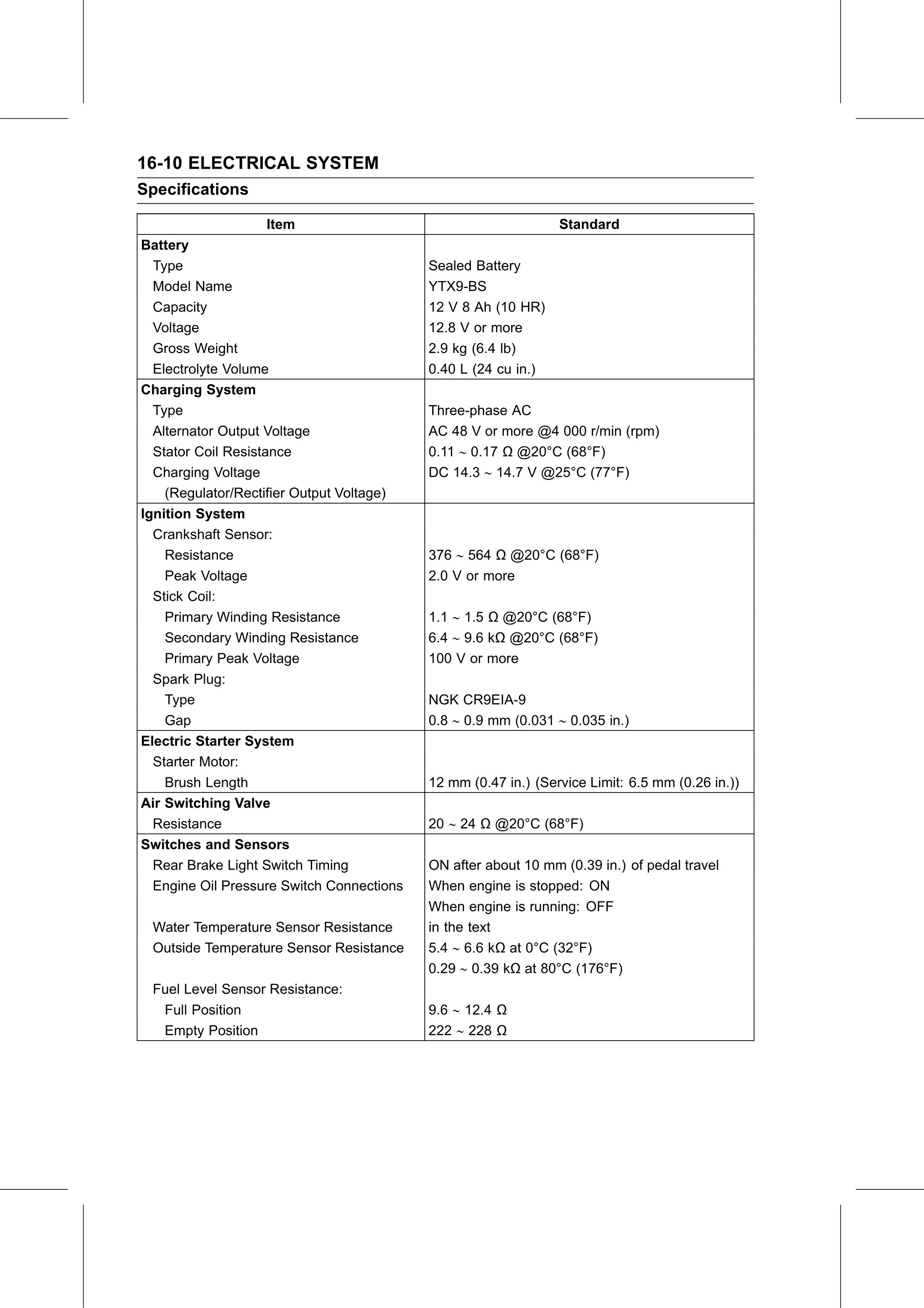

16-10 ELECTRICAL SYSTEM
Specifications
Item Standard
Battery
Type Sealed Battery
Model Name YTX9-BS
Capacity 12 V 8 Ah (10 HR)
Voltage 12.8 V or more
Gross Weight 2.9 kg (6.4 lb)
Electrolyte Volume 0.40 L (24 cu in.)
Charging System
Type Three-phase AC
Alternator Output Voltage AC 48 V or more @4 000 r/min (rpm)
Stator Coil Resistance 0.11 ∼ 0.17 Ω @20°C (68°F)
Charging Voltage DC 14.3 ∼ 14.7 V @25°C (77°F)
(Regulator/Rectifier Output Voltage)
Ignition System
Crankshaft Sensor:
Resistance 376 ∼ 564 Ω @20°C (68°F)
Peak Voltage 2.0 V or more
Stick Coil:
Primary Winding Resistance 1.1 ∼ 1.5 Ω @20°C (68°F)
Secondary Winding Resistance 6.4 ∼ 9.6 kΩ @20°C (68°F)
Primary Peak Voltage 100 V or more
Spark Plug:
Type NGK CR9EIA-9
Gap 0.8 ∼ 0.9 mm (0.031 ∼ 0.035 in.)
Electric Starter System
Starter Motor:
Brush Length 12 mm (0.47 in.) (Service Limit: 6.5 mm (0.26 in.))
Air Switching Valve
Resistance 20 ∼ 24 Ω @20°C (68°F)
Switches and Sensors
Rear Brake Light Switch Timing ON after about 10 mm (0.39 in.) of pedal travel
Engine Oil Pressure Switch Connections When engine is stopped: ON
When engine is running: OFF
Water Temperature Sensor Resistance in the text
Outside Temperature Sensor Resistance 5.4 ∼ 6.6 kΩ at 0°C (32°F)
0.29 ∼ 0.39 kΩ at 80°C (176°F)
Fuel Level Sensor Resistance:
Full Position 9.6 ∼ 12.4 Ω
Empty Position 222 ∼ 228 Ω
