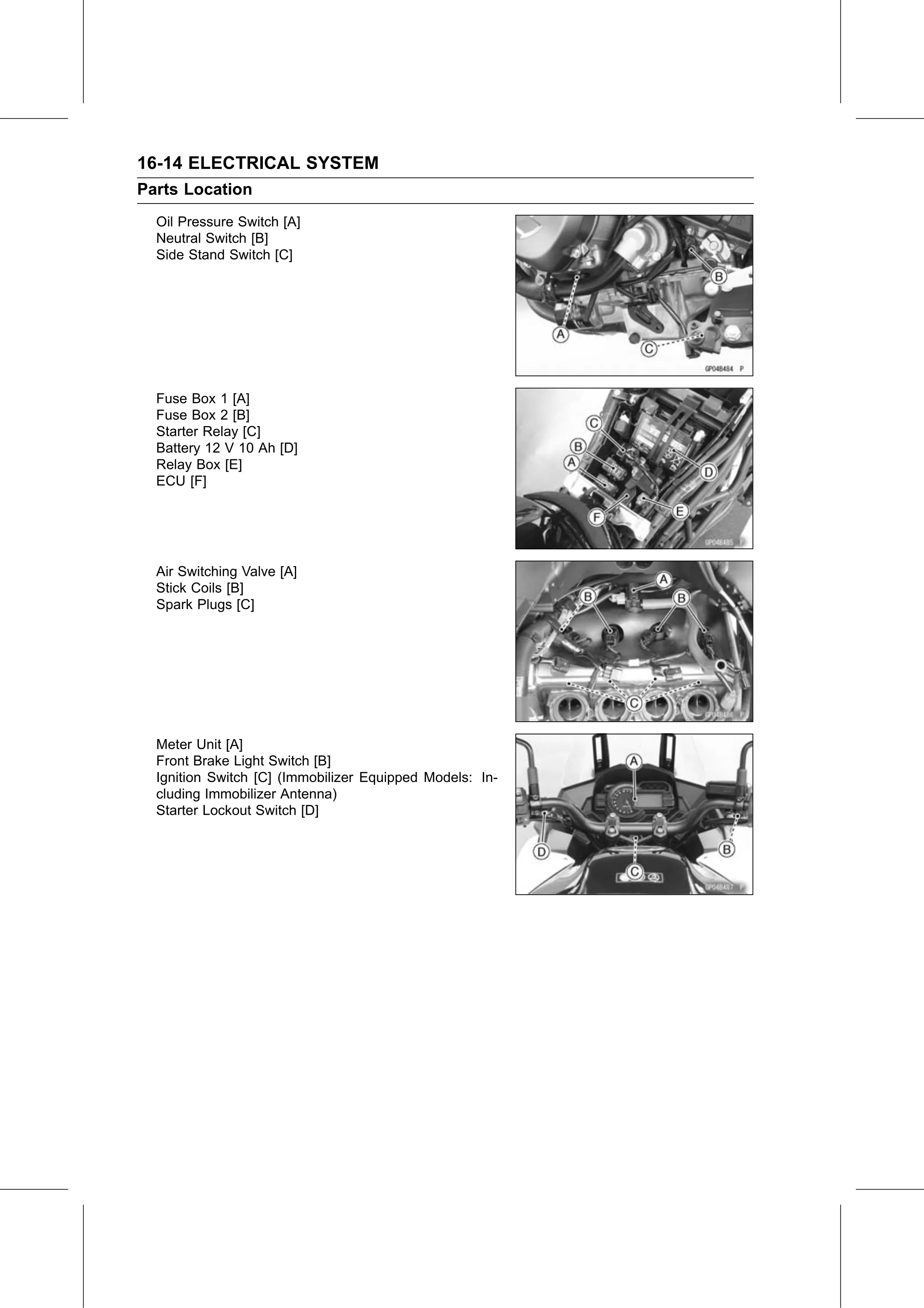

16-14 ELECTRICAL SYSTEM
Parts Location
  Oil Pressure Switch [A]
  Neutral Switch [B]
  Side Stand Switch [C]

  Fuse Box 1 [A]
  Fuse Box 2 [B]
  Starter Relay [C]
  Battery 12 V 10 Ah [D]
  Relay Box [E]
  ECU [F]

  Air Switching Valve [A]
  Stick Coils [B]
  Spark Plugs [C]

  Meter Unit [A]
  Front Brake Light Switch [B]
  Ignition Switch [C] (Immobilizer Equipped Models: In-
  cluding Immobilizer Antenna)
  Starter Lockout Switch [D]
