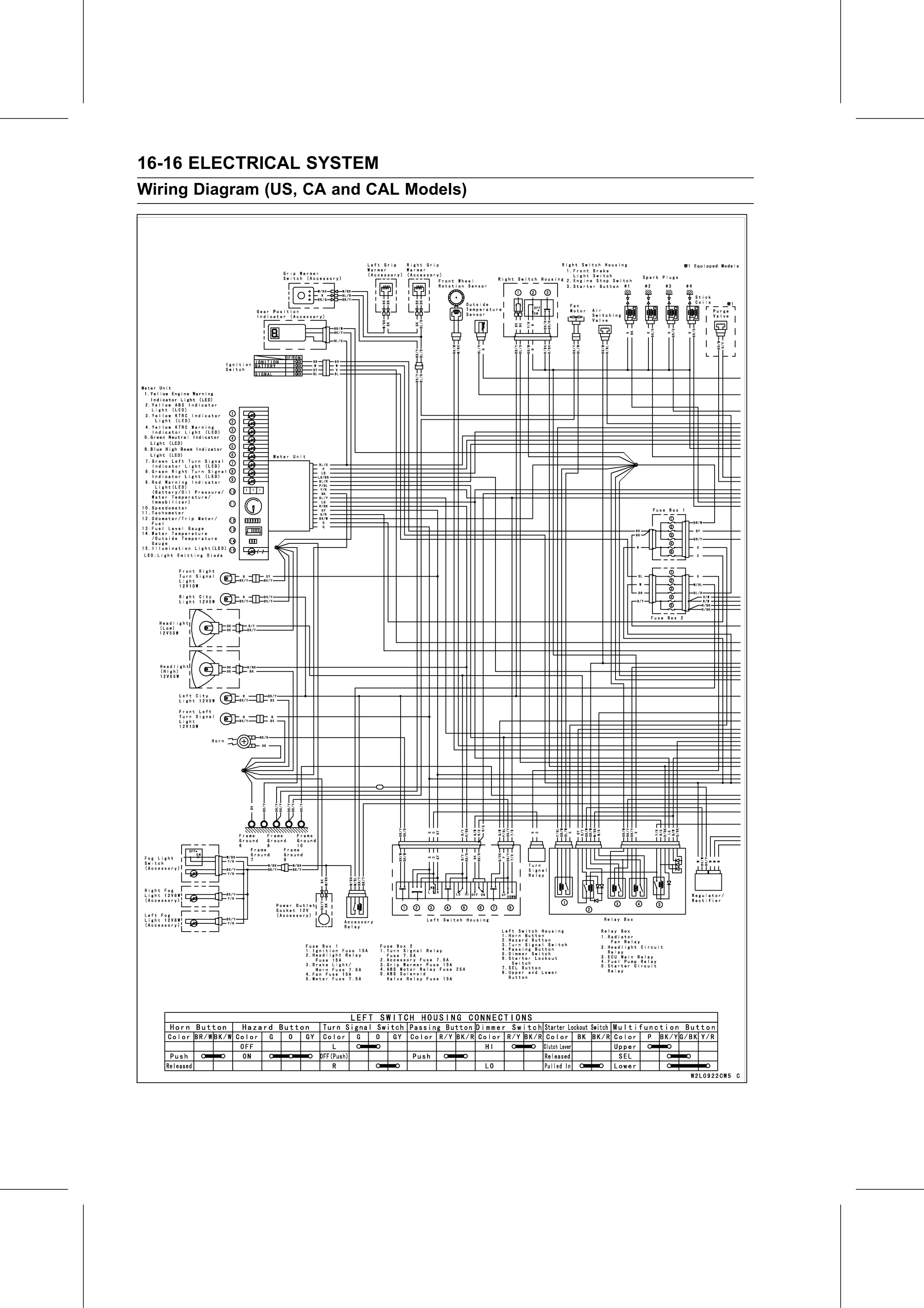

Electrical System › Wiring Diagram (US, CA and CAL Models)

Service Manual page 576 — Electrical System › Wiring Diagram (US, CA and CAL Models) — Tap the page to zoom. Open the full-size image

Text on this page

16-16 ELECTRICAL SYSTEM
Wiring Diagram (US, CA and CAL Models)
