Electrical System › Wiring Diagram (BR Model)

Service Manual page 581 — Electrical System › Wiring Diagram (BR Model) — Tap the page to zoom. Open the full-size image

Text on this page

ELECTRICAL SYSTEM 16-21

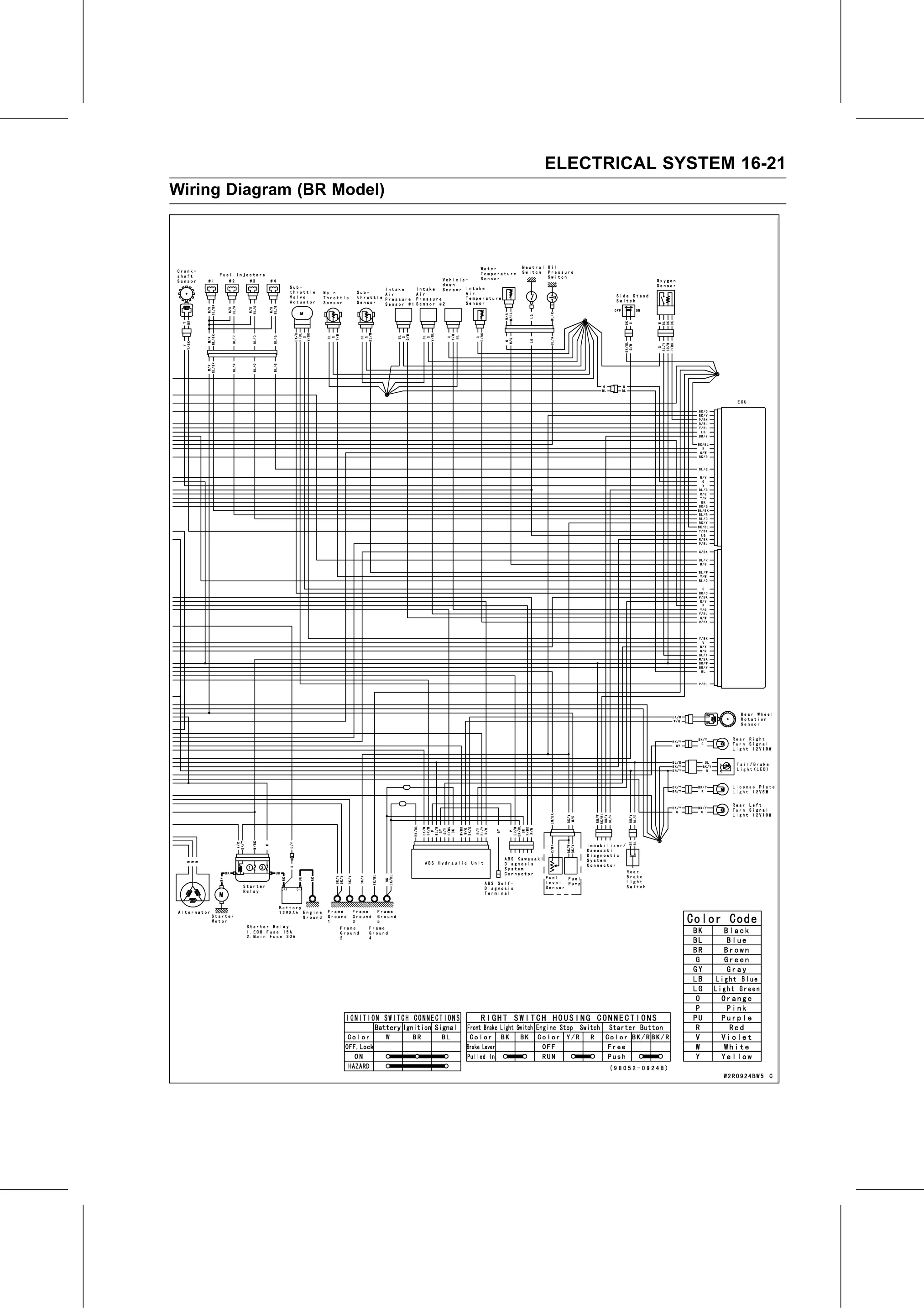

Wiring Diagram (BR Model)
