ELECTRICAL SYSTEM 16-49
Ignition System

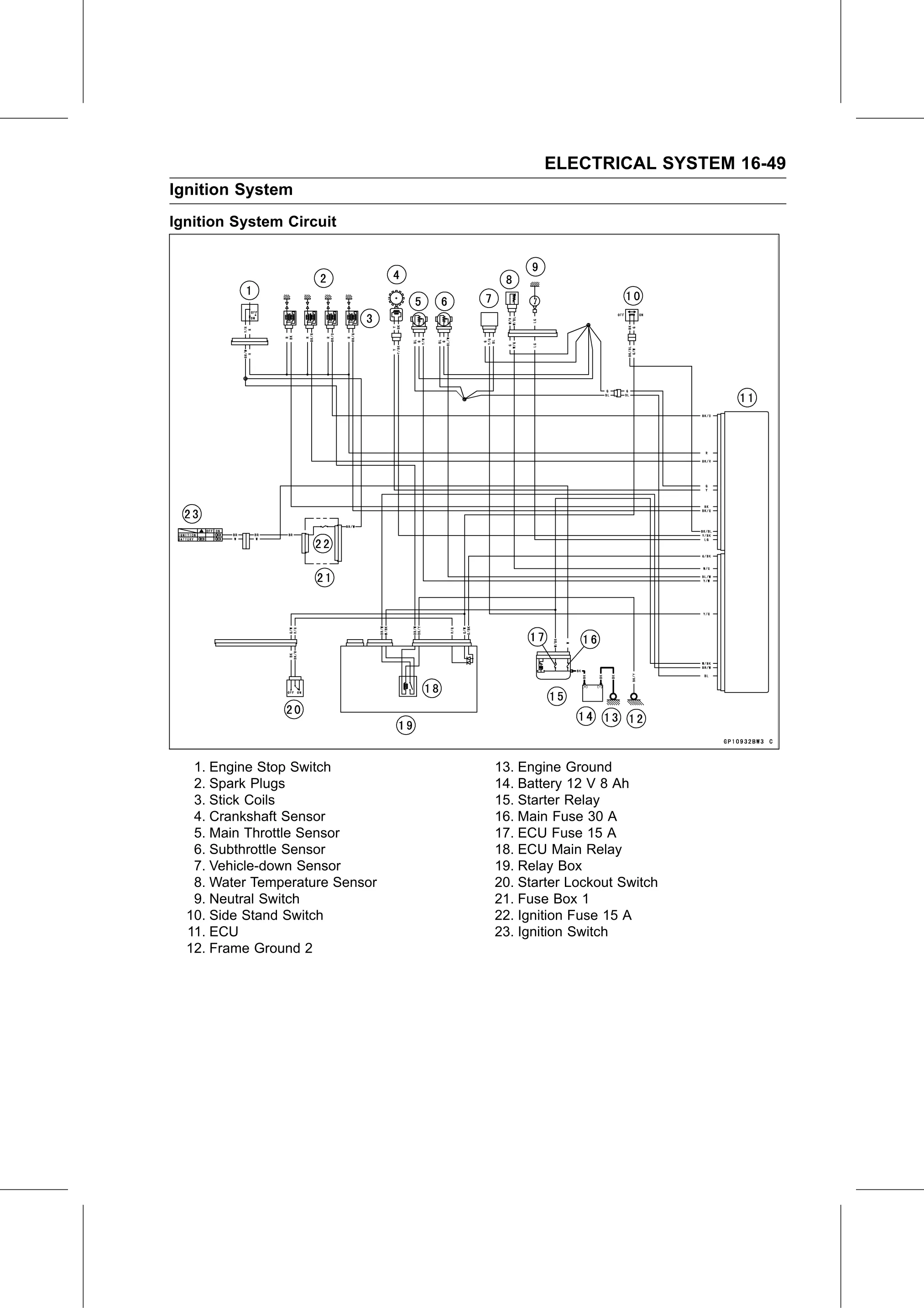

Ignition System Circuit

   1. Engine Stop Switch         13. Engine Ground
   2. Spark Plugs                14. Battery 12 V 8 Ah
   3. Stick Coils                15. Starter Relay
   4. Crankshaft Sensor          16. Main Fuse 30 A
   5. Main Throttle Sensor       17. ECU Fuse 15 A
   6. Subthrottle Sensor         18. ECU Main Relay
   7. Vehicle-down Sensor        19. Relay Box
   8. Water Temperature Sensor   20. Starter Lockout Switch
   9. Neutral Switch             21. Fuse Box 1
  10. Side Stand Switch          22. Ignition Fuse 15 A
  11. ECU                        23. Ignition Switch
  12. Frame Ground 2
