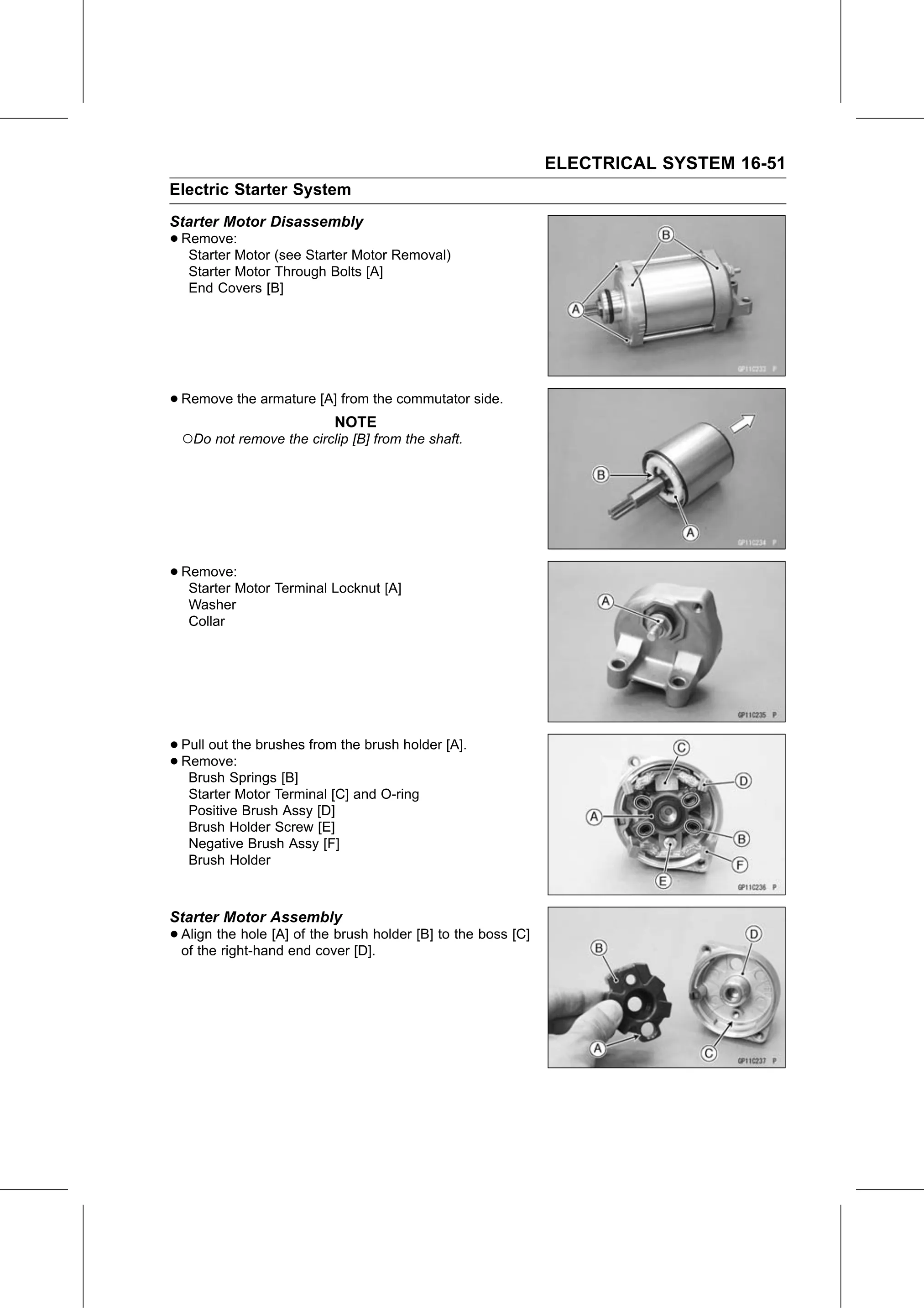

ELECTRICAL SYSTEM 16-51
Electric Starter System
Starter Motor Disassembly
• Remove:
   Starter Motor (see Starter Motor Removal)
   Starter Motor Through Bolts [A]
   End Covers [B]

• Remove the armature [A] from the commutator side.
                           NOTE
 ○Do not remove the circlip [B] from the shaft.

• Remove:
   Starter Motor Terminal Locknut [A]
   Washer
   Collar

• Pull out the brushes from the brush holder [A].
• Remove:
   Brush Springs [B]
   Starter Motor Terminal [C] and O-ring
   Positive Brush Assy [D]
   Brush Holder Screw [E]
   Negative Brush Assy [F]
   Brush Holder

Starter Motor Assembly
• Align the hole [A] of the brush holder [B] to the boss [C]
  of the right-hand end cover [D].
