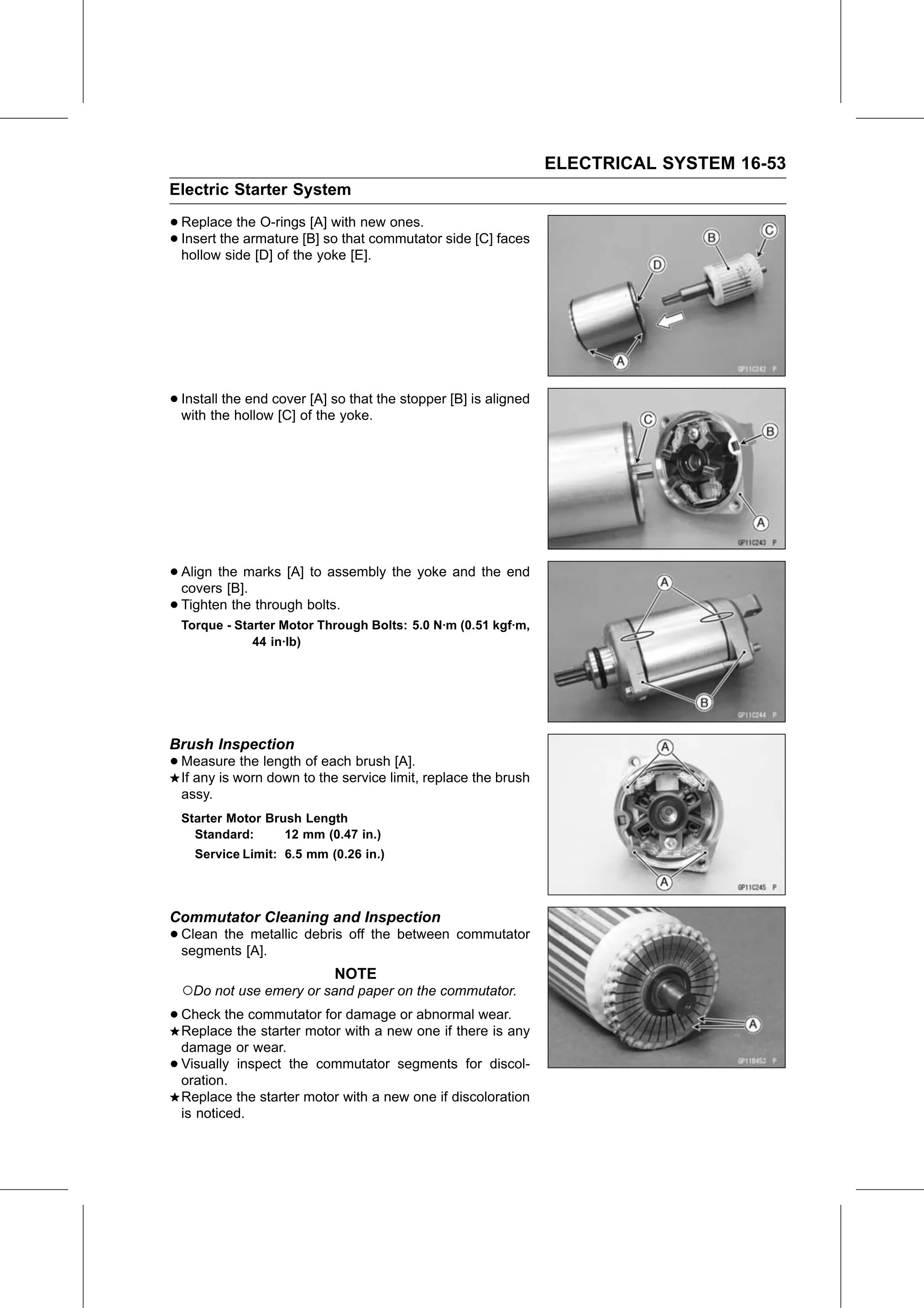

ELECTRICAL SYSTEM 16-53
Electric Starter System

• Replace   the O-rings [A] with new ones.
• hollow sidearmature
  Insert the            [B] so that commutator side [C] faces
               [D] of the yoke [E].

• Install the end cover [A] so that the stopper [B] is aligned
  with the hollow [C] of the yoke.

• Align the marks [A] to assembly the yoke and the end
  covers [B].
• Tighten the through bolts.
    Torque - Starter Motor Through Bolts: 5.0 N·m (0.51 kgf·m,
                44 in·lb)

Brush Inspection
• Measure    the length of each brush [A].
  If any is worn down to the service limit, replace the brush
    assy.
    Starter Motor Brush Length
      Standard:      12 mm (0.47 in.)
      Service Limit: 6.5 mm (0.26 in.)

Commutator Cleaning and Inspection
• Clean the metallic debris off the between commutator
  segments [A].
                             NOTE
    ○Do not use emery or sand paper on the commutator.
• Check the commutator for damage or abnormal wear.
  Replace the starter motor with a new one if there is any
    damage or wear.
•   Visually inspect the commutator segments for discol-
    oration.
    Replace the starter motor with a new one if discoloration
    is noticed.
