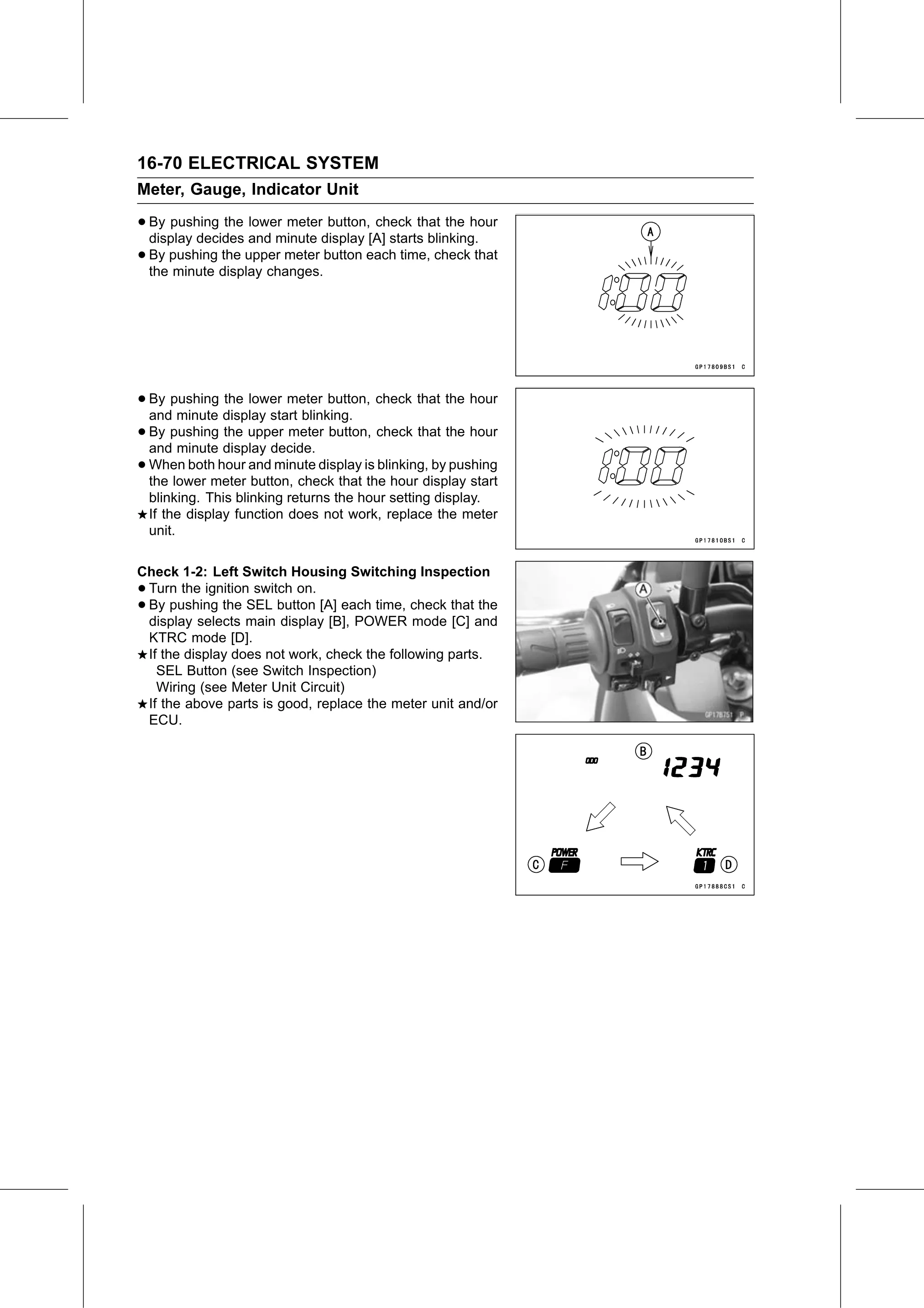

16-70 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit

• By pushing the lower meter button, check that the hour
  display decides and minute display [A] starts blinking.
• By pushing the upper meter button each time, check that
  the minute display changes.

• By pushing the lower meter button, check that the hour
  and minute display start blinking.
• By pushing the upper meter button, check that the hour
  and minute display decide.
• When  both hour and minute display is blinking, by pushing
  the lower meter button, check that the hour display start
    blinking. This blinking returns the hour setting display.
    If the display function does not work, replace the meter
    unit.

Check 1-2: Left Switch Housing Switching Inspection
•Turn the ignition switch on.
•By pushing the SEL button [A] each time, check that the
 display selects main display [B], POWER mode [C] and
 KTRC mode [D].
 If the display does not work, check the following parts.
   SEL Button (see Switch Inspection)
   Wiring (see Meter Unit Circuit)
 If the above parts is good, replace the meter unit and/or
 ECU.
