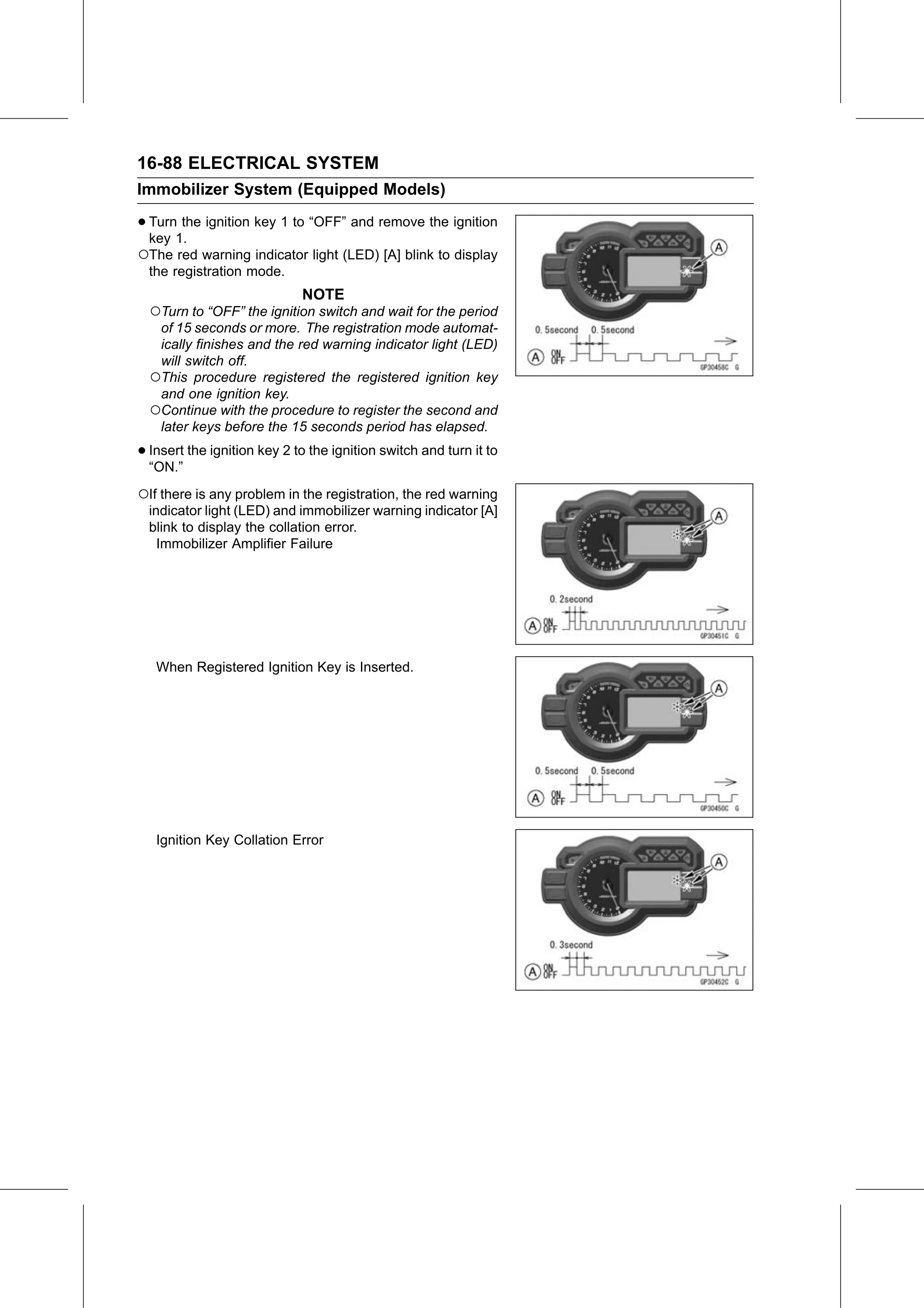

16-88 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)

• Turn the ignition key 1 to “OFF” and remove the ignition
  key 1.
○The red warning indicator light (LED) [A] blink to display
  the registration mode.
                             NOTE
  ○Turn to “OFF” the ignition switch and wait for the period
   of 15 seconds or more. The registration mode automat-
   ically finishes and the red warning indicator light (LED)
   will switch off.
  ○This procedure registered the registered ignition key
   and one ignition key.
  ○Continue with the procedure to register the second and
   later keys before the 15 seconds period has elapsed.

• Insert
  “ON.”
         the ignition key 2 to the ignition switch and turn it to

○If there is any problem in the registration, the red warning
  indicator light (LED) and immobilizer warning indicator [A]
  blink to display the collation error.
    Immobilizer Amplifier Failure

   When Registered Ignition Key is Inserted.

   Ignition Key Collation Error
