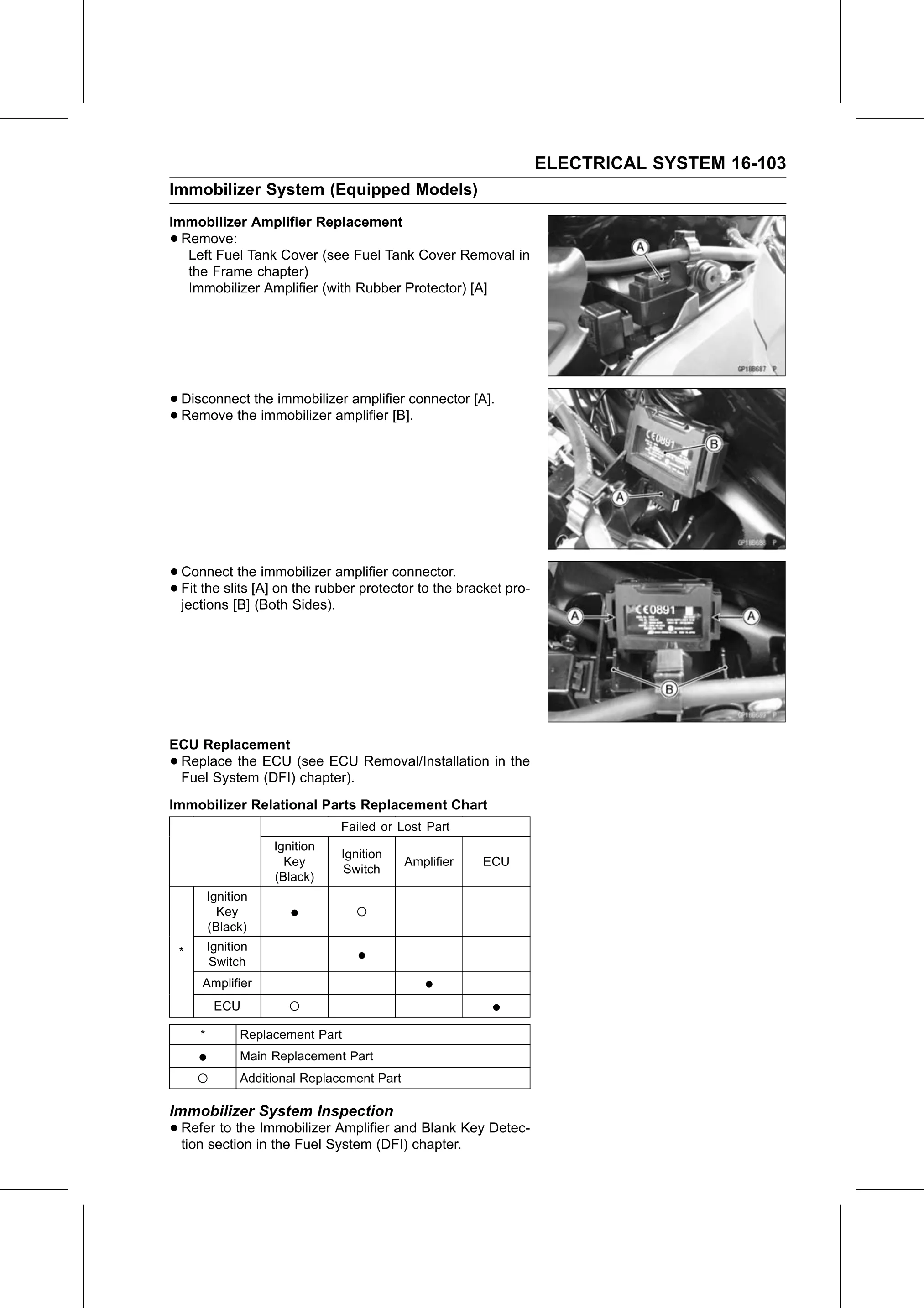

ELECTRICAL SYSTEM 16-103
Immobilizer System (Equipped Models)
Immobilizer Amplifier Replacement
• Remove:
   Left Fuel Tank Cover (see Fuel Tank Cover Removal in
   the Frame chapter)
   Immobilizer Amplifier (with Rubber Protector) [A]

• Disconnect the immobilizer amplifier connector [A].
• Remove  the immobilizer amplifier [B].

• Connect    the immobilizer amplifier connector.
• jections [B] [A]
  Fit the slits    on the rubber protector to the bracket pro-
                (Both Sides).

ECU Replacement
•Replace the ECU (see ECU Removal/Installation in the
 Fuel System (DFI) chapter).
Immobilizer Relational Parts Replacement Chart
                                  Failed or Lost Part
                       Ignition
                                  Ignition
                         Key                    Amplifier   ECU
                                  Switch
                       (Black)
            Ignition
              Key
            (Black)
                          •          ○
            Ignition
    *
            Switch                   •
        Amplifier
                                                   •
             ECU          ○                                 •
        *         Replacement Part

        •         Main Replacement Part
        ○         Additional Replacement Part

Immobilizer System Inspection
• Refer  to the Immobilizer Amplifier and Blank Key Detec-
  tion section in the Fuel System (DFI) chapter.
