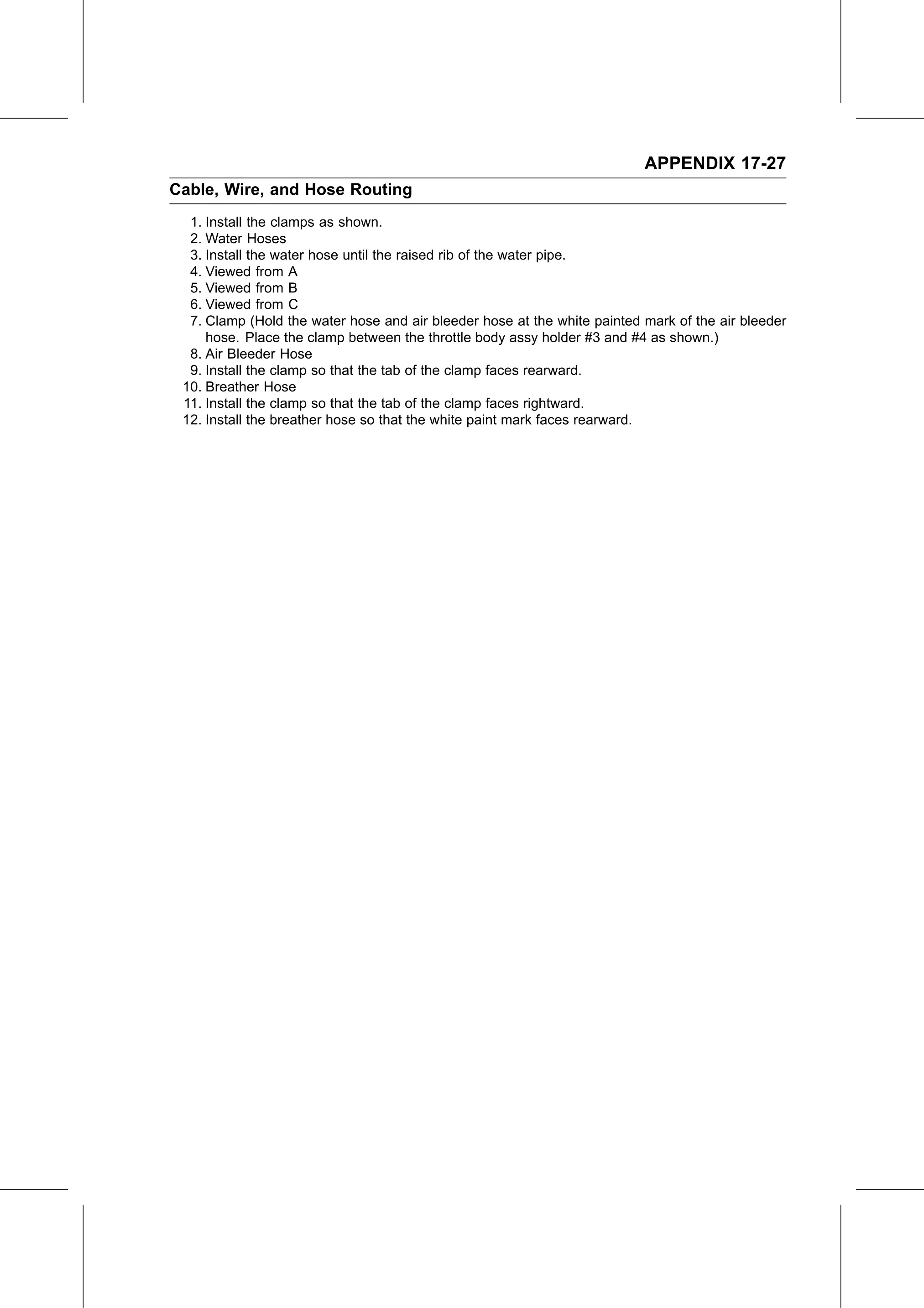

APPENDIX 17-27
Cable, Wire, and Hose Routing
  1. Install the clamps as shown.
  2. Water Hoses
  3. Install the water hose until the raised rib of the water pipe.
  4. Viewed from A
  5. Viewed from B
  6. Viewed from C
  7. Clamp (Hold the water hose and air bleeder hose at the white painted mark of the air bleeder
     hose. Place the clamp between the throttle body assy holder #3 and #4 as shown.)
  8. Air Bleeder Hose
  9. Install the clamp so that the tab of the clamp faces rearward.
 10. Breather Hose
 11. Install the clamp so that the tab of the clamp faces rightward.
 12. Install the breather hose so that the white paint mark faces rearward.
