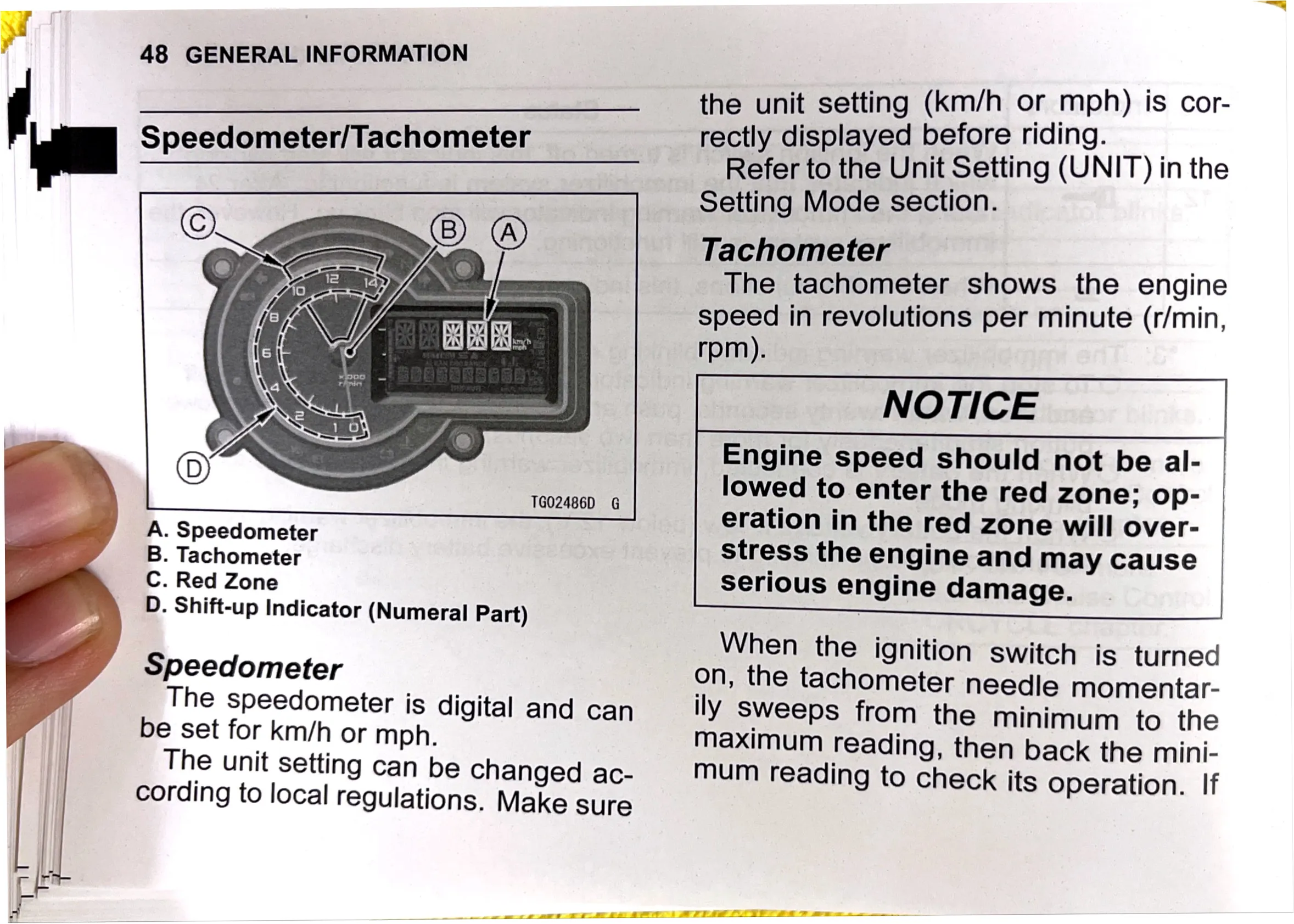

48 GENERAL INFORMATION

Speedometer/Tachometer

TG02486D G

the unit setting (km/h or mph) is cor-
rectly displayed before riding. .

Refer to the Unit Setting (UNIT) in the
Setting Mode section.

Tachometer

The tachometer shows the engine
speed in revolutions per minute (r/min,
rpm).

NOTICE

A. Speedometer
B. Tachometer
C. Red Zone

D. Shift-up Indicator (Numeral Part)

Speedometer

The speedometer is digital and can
be set for km/h or mph.

The unit setting can be changed ac-
cording to local regulations. Make sure

Engine speed should not be al-
lowed to enter the red zone; op-
eration in the red zone will over-
stress the engine and may cause

serious engine damage.

When the ignition switch is turned
on, the tachometer needle momentar-
ily sweeps from the minimum to the
maximum reading, then back the mini-
mum reading to check its operation. If
