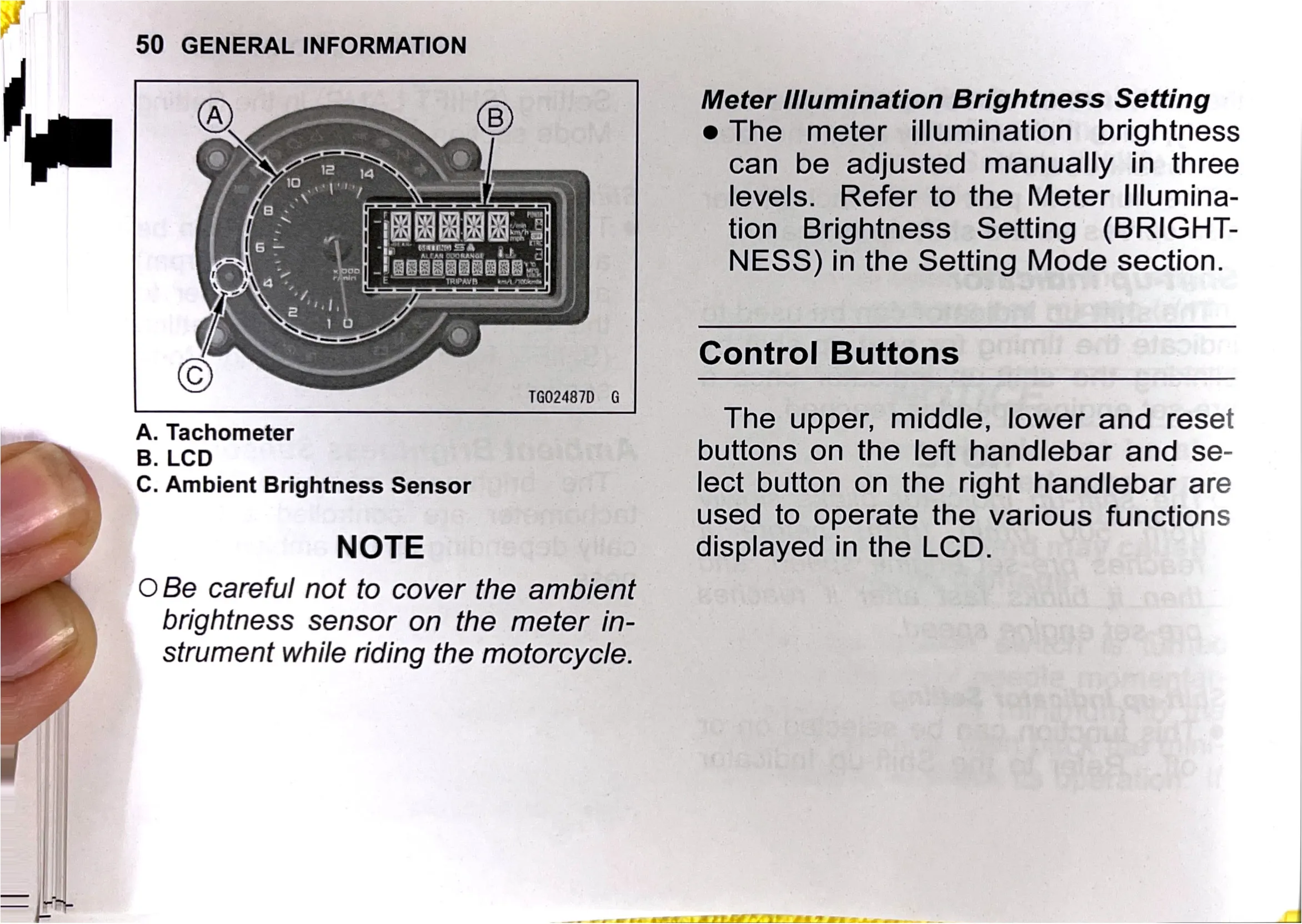

50 GENERAL INFORMATION

FAniet

TG02487D. G

A. Tachometer
B. LCD
C. Ambient Brightness Sensor

NOTE

OBe careful not to cover the ambient
brightness sensor on the meter in-
strument while riding the motorcycle.

Meter Illumination Brightness Setting

e The meter illumination brightness
can be adjusted manually in three
levels. Refer to the Meter Illumina-
tion Brightness Setting (BRIGHT-
NESS) in the Setting Mode section.

Control Buttons

The upper, middle, lower and reset
buttons on the left handlebar and se-
lect button on the right handlebar are
used to operate the various functions
displayed in the LCD.
