FUEL SYSTEM (DFI) 3-41
ECU

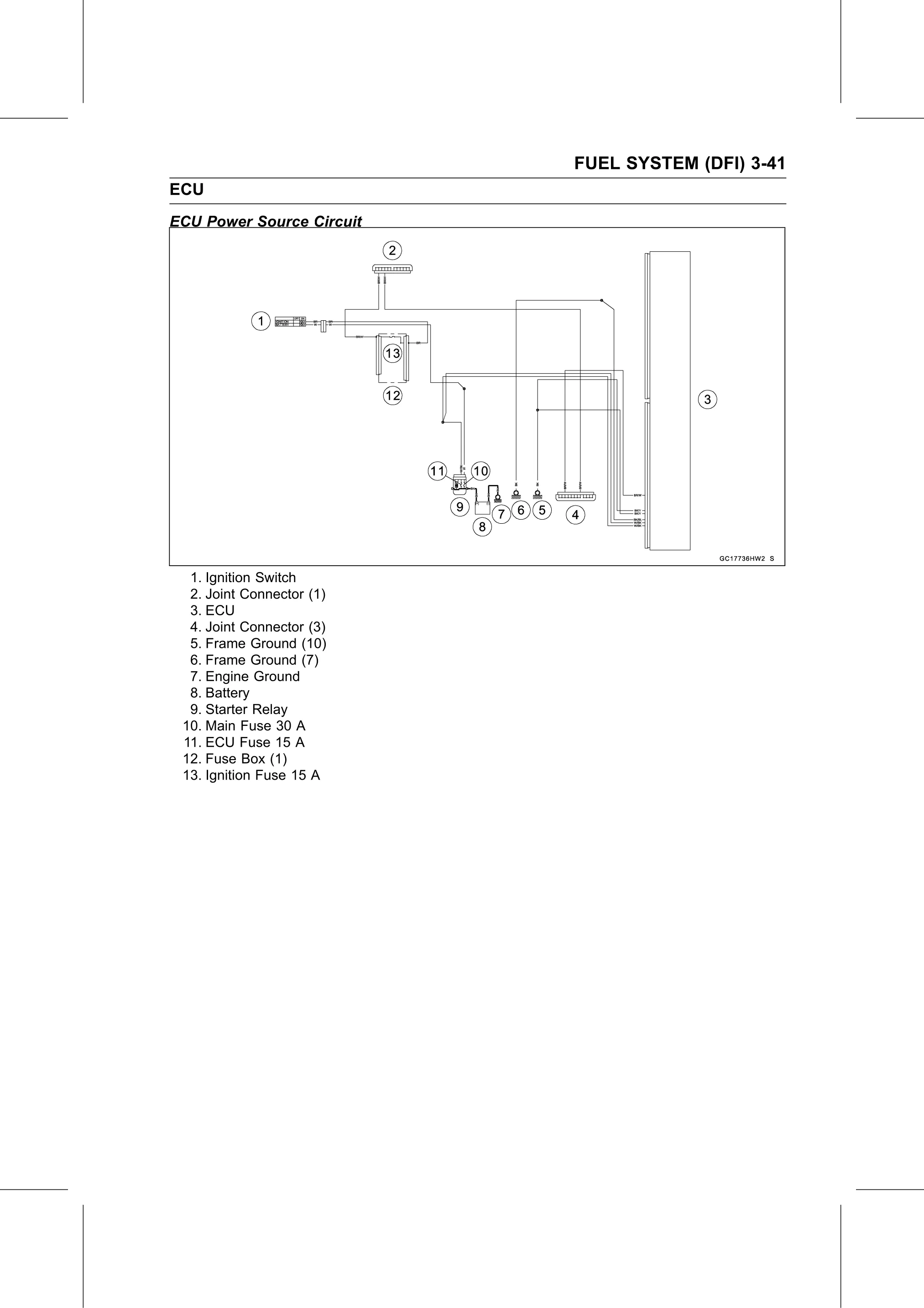

ECU Power Source Circuit

  1. Ignition Switch
  2. Joint Connector (1)
  3. ECU
  4. Joint Connector (3)
  5. Frame Ground (10)
  6. Frame Ground (7)
  7. Engine Ground
  8. Battery
  9. Starter Relay
 10. Main Fuse 30 A
 11. ECU Fuse 15 A
 12. Fuse Box (1)
 13. Ignition Fuse 15 A
