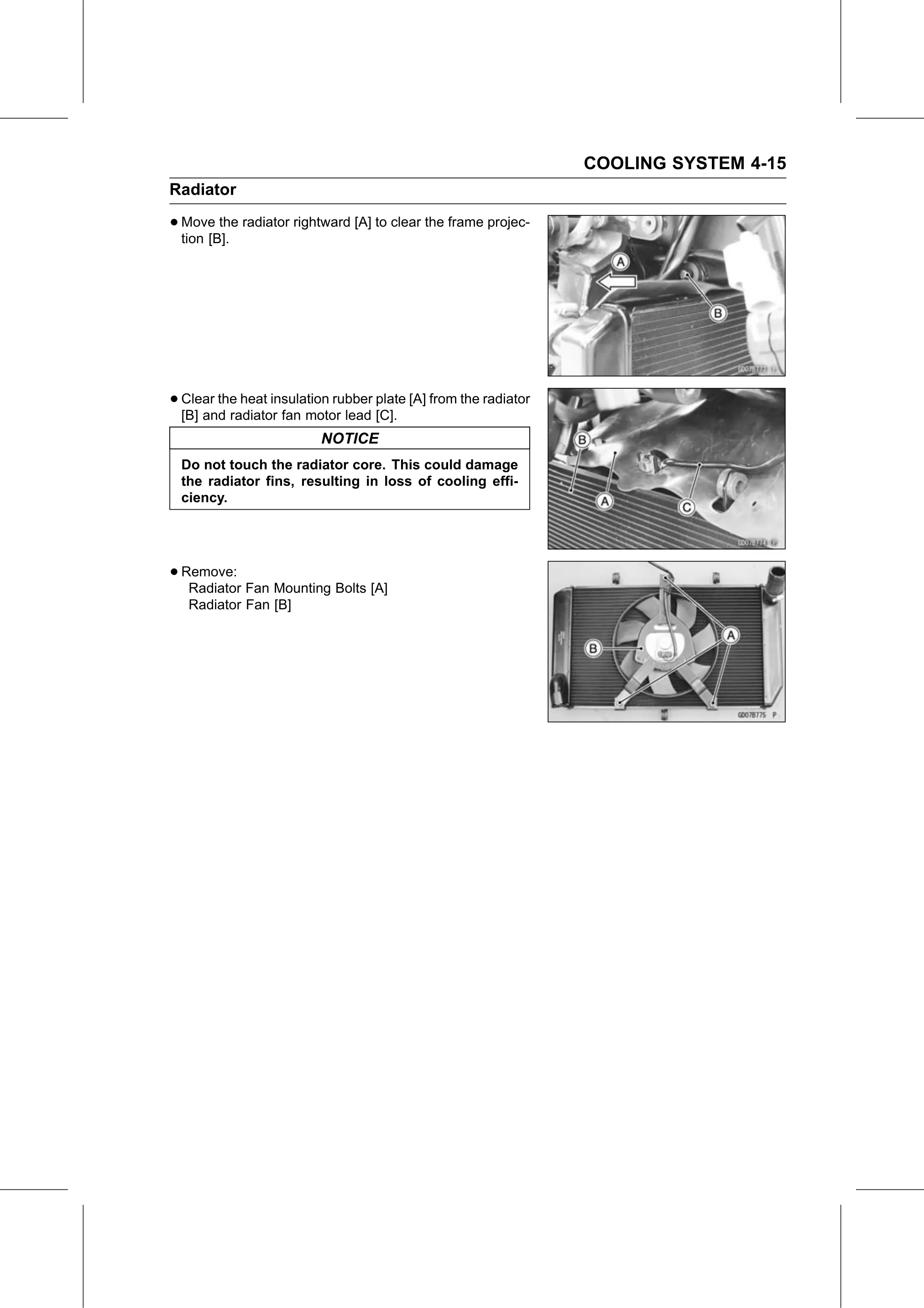

COOLING SYSTEM 4-15
Radiator

• Move   the radiator rightward [A] to clear the frame projec-
  tion [B].

• Clear the heat insulation rubber plate [A] from the radiator
  [B] and radiator fan motor lead [C].
                          NOTICE
  Do not touch the radiator core. This could damage
  the radiator fins, resulting in loss of cooling effi-
  ciency.

• Remove:
   Radiator Fan Mounting Bolts [A]
   Radiator Fan [B]
