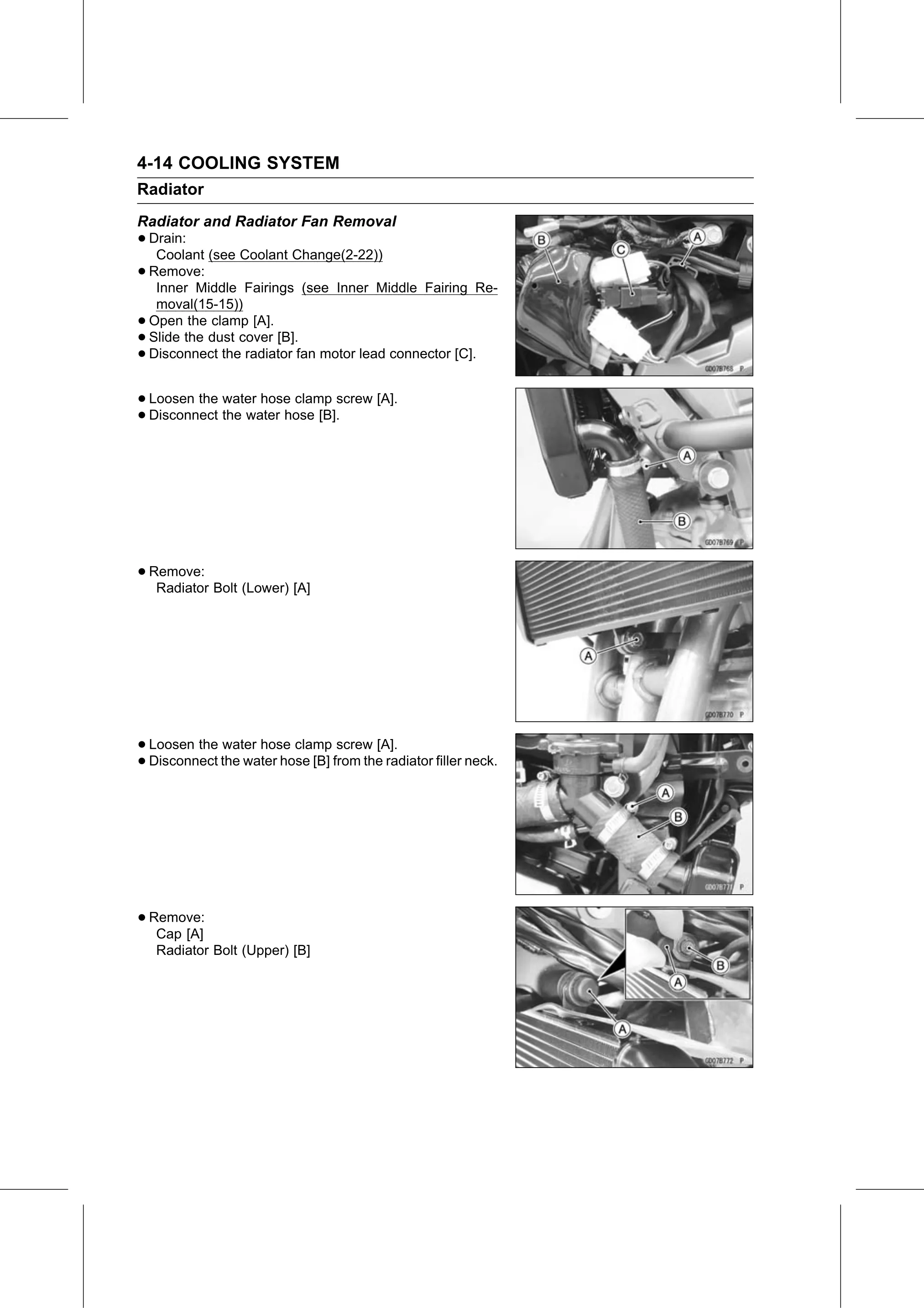

4-14 COOLING SYSTEM
Radiator
Radiator and Radiator Fan Removal
• Drain:
   Coolant (see Coolant Change(2-22))
• Inner Middle Fairings (see Inner Middle Fairing Re-
  Remove:

     moval(15-15))
•   Open the clamp [A].
•   Slide the dust cover [B].
•   Disconnect the radiator fan motor lead connector [C].

• Loosen the water hose clamp screw [A].
• Disconnect the water hose [B].

• Remove:
   Radiator Bolt (Lower) [A]

• Loosen the water hose clamp screw [A].
• Disconnect the water hose [B] from the radiator filler neck.

• Remove:
   Cap [A]
     Radiator Bolt (Upper) [B]
