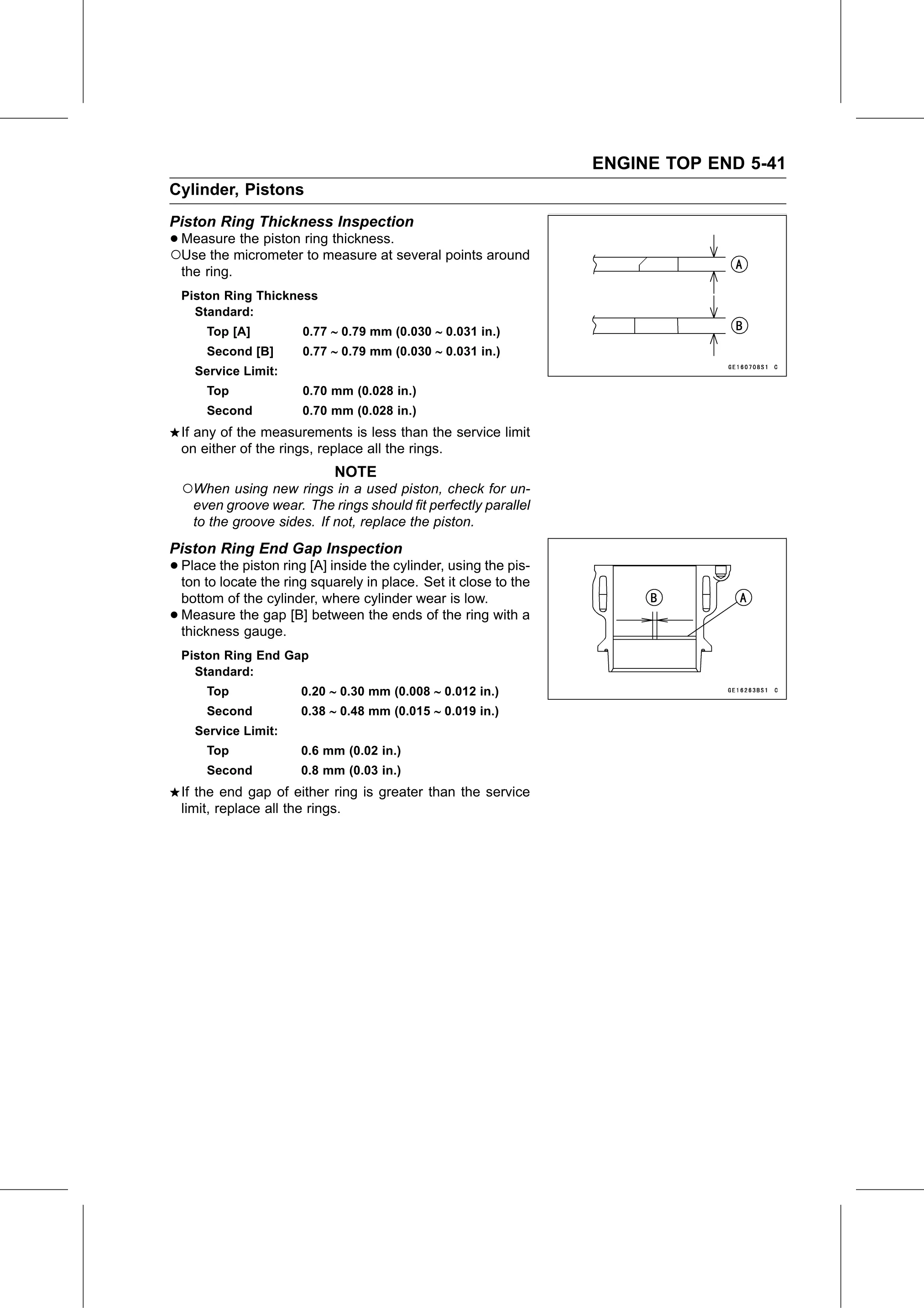

Service Manual (KLZ1000C) — page 209 of 762

Text on this page

ENGINE TOP END 5-41
Cylinder, Pistons
Piston Ring Thickness Inspection
•○Measure  the piston ring thickness.
  Use the micrometer to measure at several points around
    the ring.
    Piston Ring Thickness
      Standard:
        Top [A]         0.77  0.79 mm (0.030  0.031 in.)
        Second [B]      0.77  0.79 mm (0.030  0.031 in.)
      Service Limit:
        Top             0.70 mm (0.028 in.)
        Second          0.70 mm (0.028 in.)
    If any of the measurements is less than the service limit
    on either of the rings, replace all the rings.
                             NOTE
    ○When using new rings in a used piston, check for un-
      even groove wear. The rings should fit perfectly parallel
      to the groove sides. If not, replace the piston.
Piston Ring End Gap Inspection
• Place  the piston ring [A] inside the cylinder, using the pis-
  ton to locate the ring squarely in place. Set it close to the
    bottom of the cylinder, where cylinder wear is low.
•   Measure the gap [B] between the ends of the ring with a
    thickness gauge.
    Piston Ring End Gap
      Standard:
        Top             0.20  0.30 mm (0.008  0.012 in.)
        Second          0.38  0.48 mm (0.015  0.019 in.)
      Service Limit:
        Top             0.6 mm (0.02 in.)
        Second          0.8 mm (0.03 in.)
    If the end gap of either ring is greater than the service
    limit, replace all the rings.
