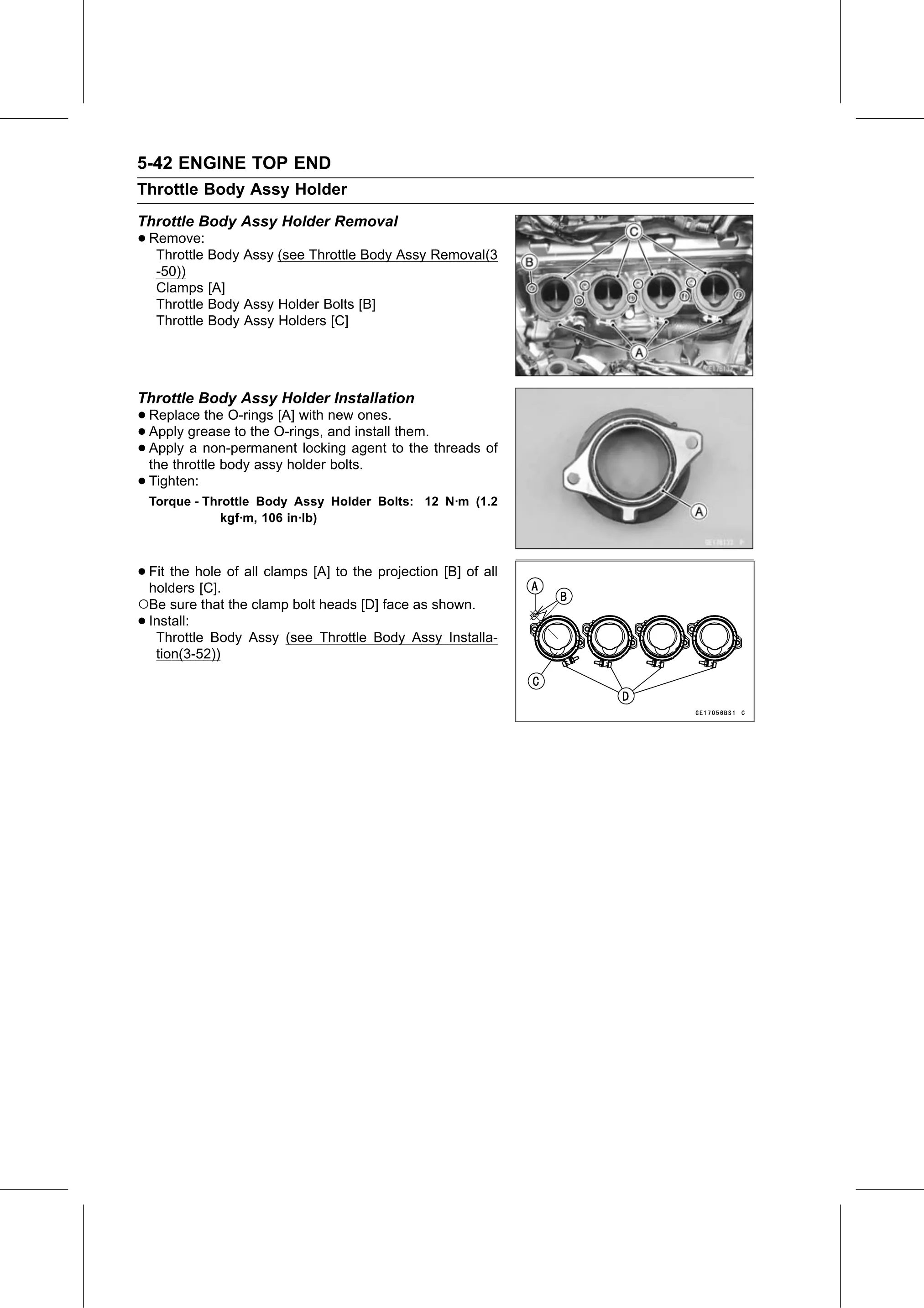

5-42 ENGINE TOP END
Throttle Body Assy Holder
Throttle Body Assy Holder Removal
• Remove:
   Throttle Body Assy (see Throttle Body Assy Removal(3
   -50))
   Clamps [A]
   Throttle Body Assy Holder Bolts [B]
   Throttle Body Assy Holders [C]

Throttle Body Assy Holder Installation
• Replace   the O-rings [A] with new ones.
• Apply  grease to the O-rings, and install them.
• the throttle
  Apply  a non-permanent locking agent to the threads of
               body assy holder bolts.
• Tighten:
  Torque - Throttle Body Assy Holder Bolts: 12 N·m (1.2
              kgf·m, 106 in·lb)

• Fit the hole of all clamps [A] to the projection [B] of all
  holders [C].
○Be sure that the clamp bolt heads [D] face as shown.
• Install:
   Throttle Body Assy (see Throttle Body Assy Installa-
   tion(3-52))
