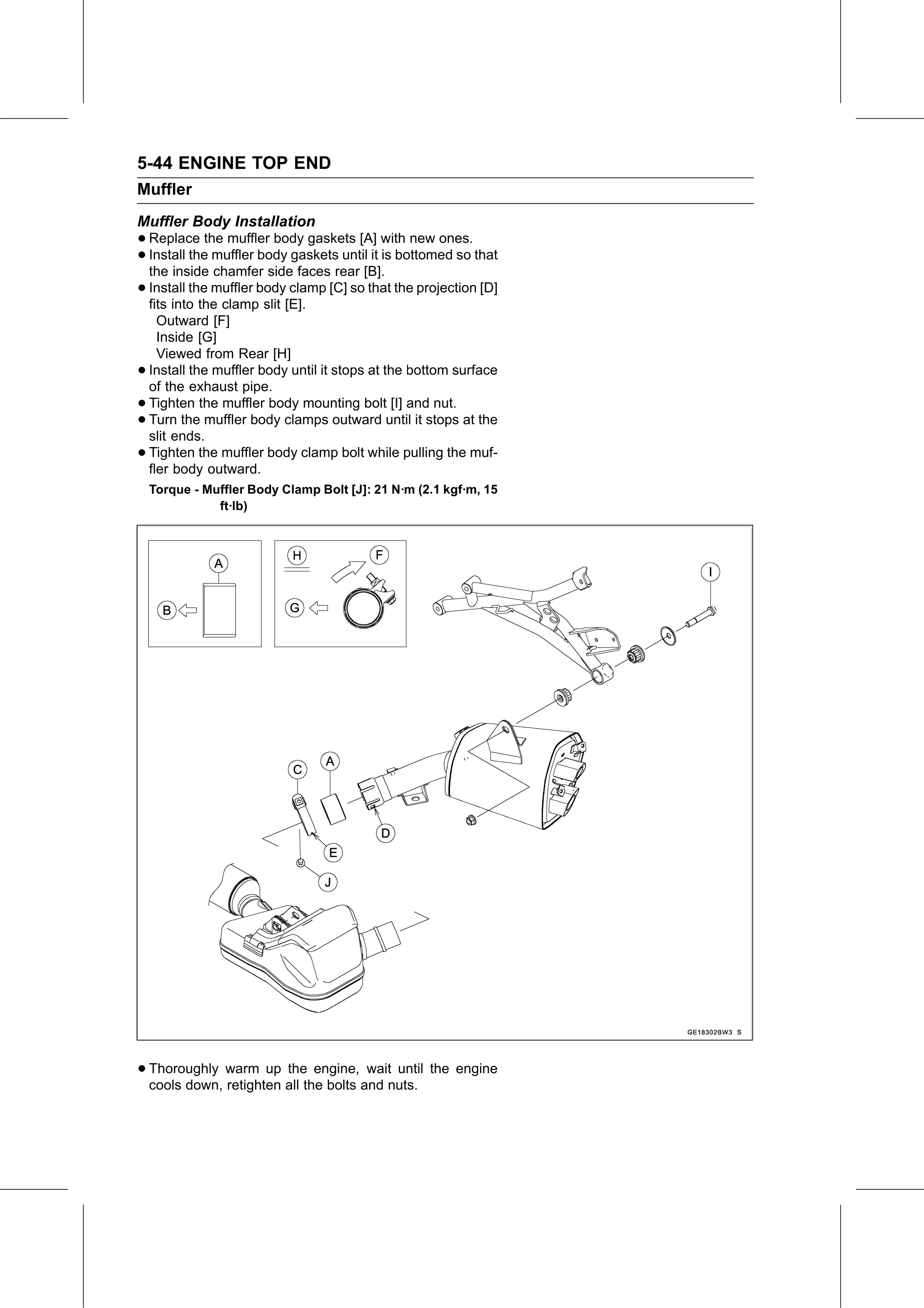

5-44 ENGINE TOP END
Muffler
Muffler Body Installation
• Replace    the muffler body gaskets [A] with new ones.
• Install the muffler body gaskets until it is bottomed so that
  the inside chamfer side faces rear [B].
• Install the muffler body clamp [C] so that the projection [D]
  fits into the clamp slit [E].
      Outward [F]
      Inside [G]
      Viewed from Rear [H]
•   Install the muffler body until it stops at the bottom surface
    of the exhaust pipe.
•   Tighten the muffler body mounting bolt [I] and nut.
•   Turn the muffler body clamps outward until it stops at the
    slit ends.
•   Tighten the muffler body clamp bolt while pulling the muf-
    fler body outward.
    Torque - Muffler Body Clamp Bolt [J]: 21 N·m (2.1 kgf·m, 15
               ft·lb)

• Thoroughly  warm up the engine, wait until the engine
  cools down, retighten all the bolts and nuts.
