ENGINE TOP END 5-43
Muffler

                         WARNING
    The exhaust pipe or muffler body can become ex-
    tremely hot during normal operation and cause se-
    vere burns. Do not remove the exhaust pipe or muf-
    fler body while it is hot.

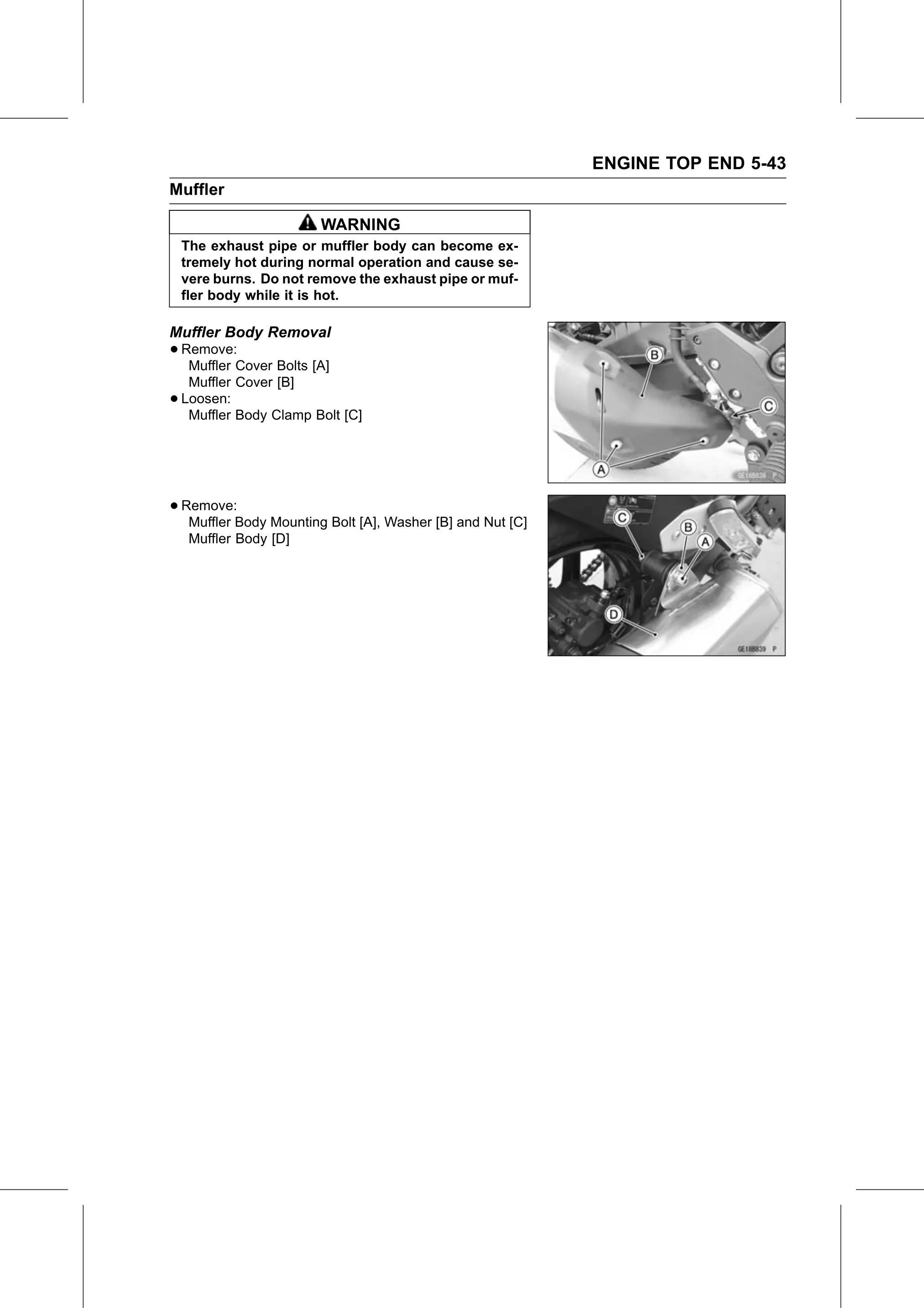

Muffler Body Removal
• Remove:
   Muffler Cover Bolts [A]
     Muffler Cover [B]
•   Loosen:
     Muffler Body Clamp Bolt [C]

• Remove:
   Muffler Body Mounting Bolt [A], Washer [B] and Nut [C]
     Muffler Body [D]
