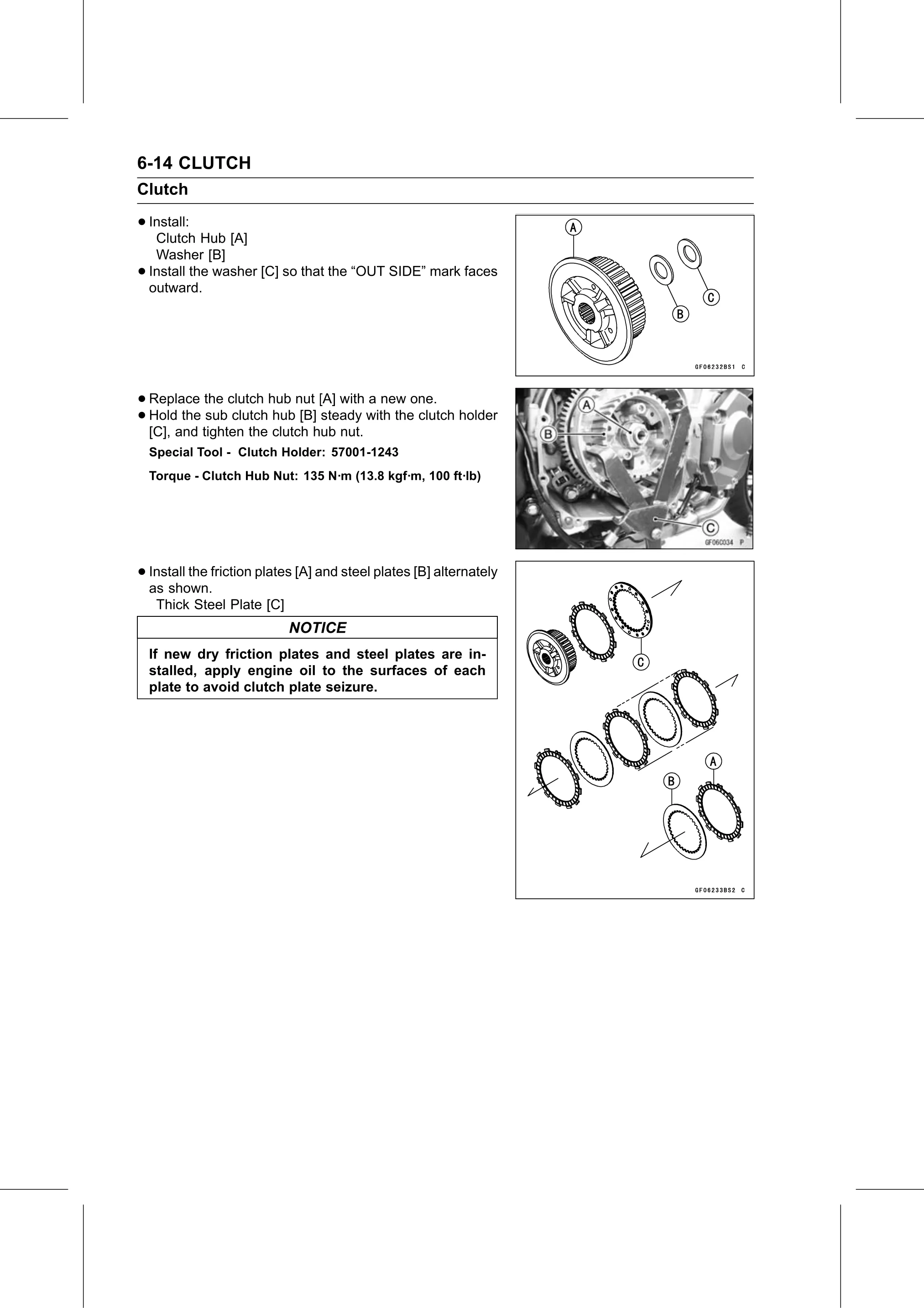

6-14 CLUTCH
Clutch

• Install:
   Clutch Hub [A]
     Washer [B]
•   Install the washer [C] so that the “OUT SIDE” mark faces
    outward.

• Replace   the clutch hub nut [A] with a new one.
• [C], and tighten
  Hold  the sub clutch hub [B] steady with the clutch holder
                    the clutch hub nut.
    Special Tool - Clutch Holder: 57001-1243
    Torque - Clutch Hub Nut: 135 N·m (13.8 kgf·m, 100 ft·lb)

• Install the friction plates [A] and steel plates [B] alternately
  as shown.
     Thick Steel Plate [C]
                             NOTICE
    If new dry friction plates and steel plates are in-
    stalled, apply engine oil to the surfaces of each
    plate to avoid clutch plate seizure.
