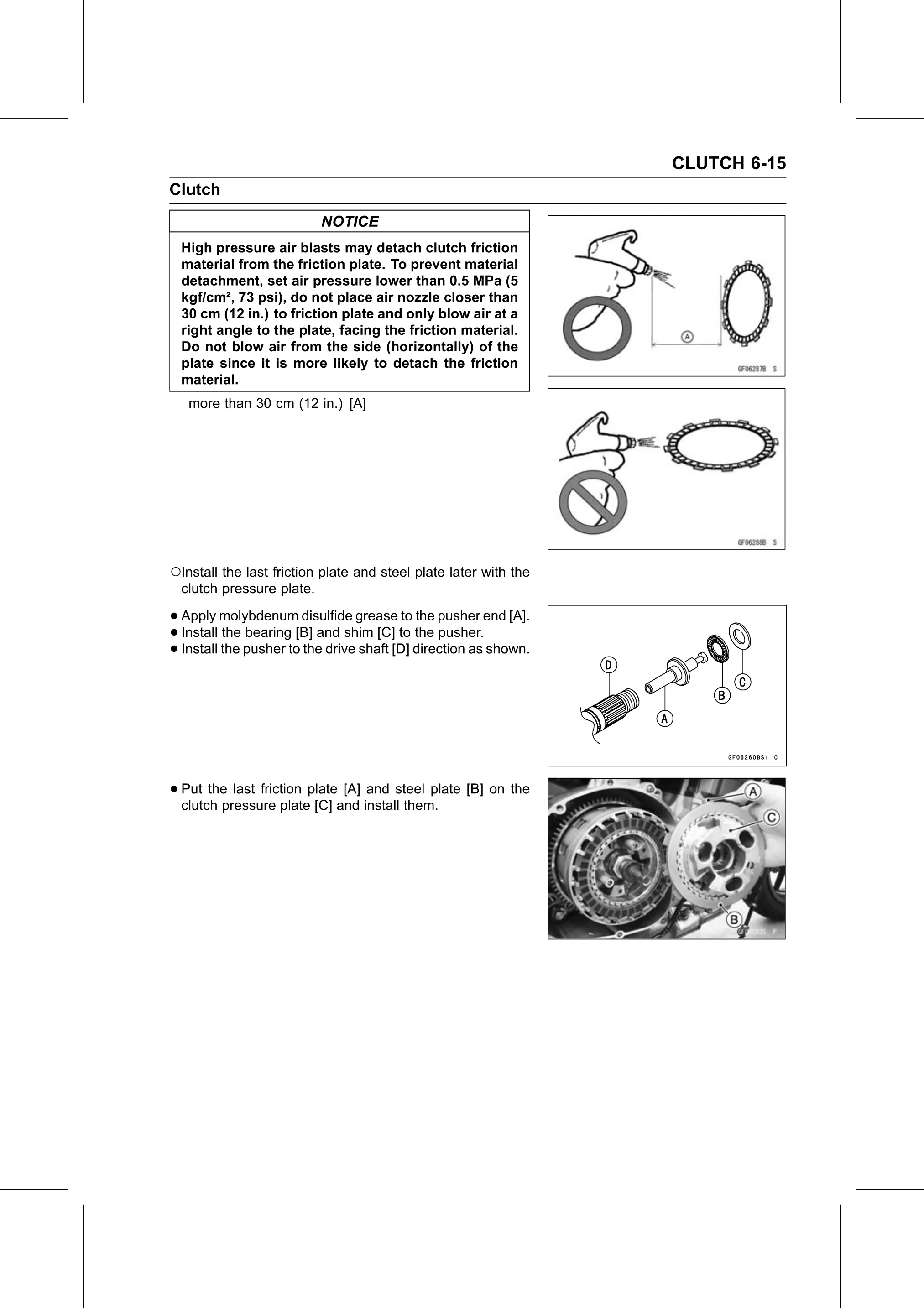

CLUTCH 6-15
Clutch
                           NOTICE
  High pressure air blasts may detach clutch friction
  material from the friction plate. To prevent material
  detachment, set air pressure lower than 0.5 MPa (5
  kgf/cm², 73 psi), do not place air nozzle closer than
  30 cm (12 in.) to friction plate and only blow air at a
  right angle to the plate, facing the friction material.
  Do not blow air from the side (horizontally) of the
  plate since it is more likely to detach the friction
  material.
   more than 30 cm (12 in.) [A]

○Install the last friction plate and steel plate later with the
  clutch pressure plate.

• Apply   molybdenum disulfide grease to the pusher end [A].
• Install the
  Install the bearing [B] and shim [C] to the pusher.
•             pusher to the drive shaft [D] direction as shown.

• Put  the last friction plate [A] and steel plate [B] on the
  clutch pressure plate [C] and install them.
