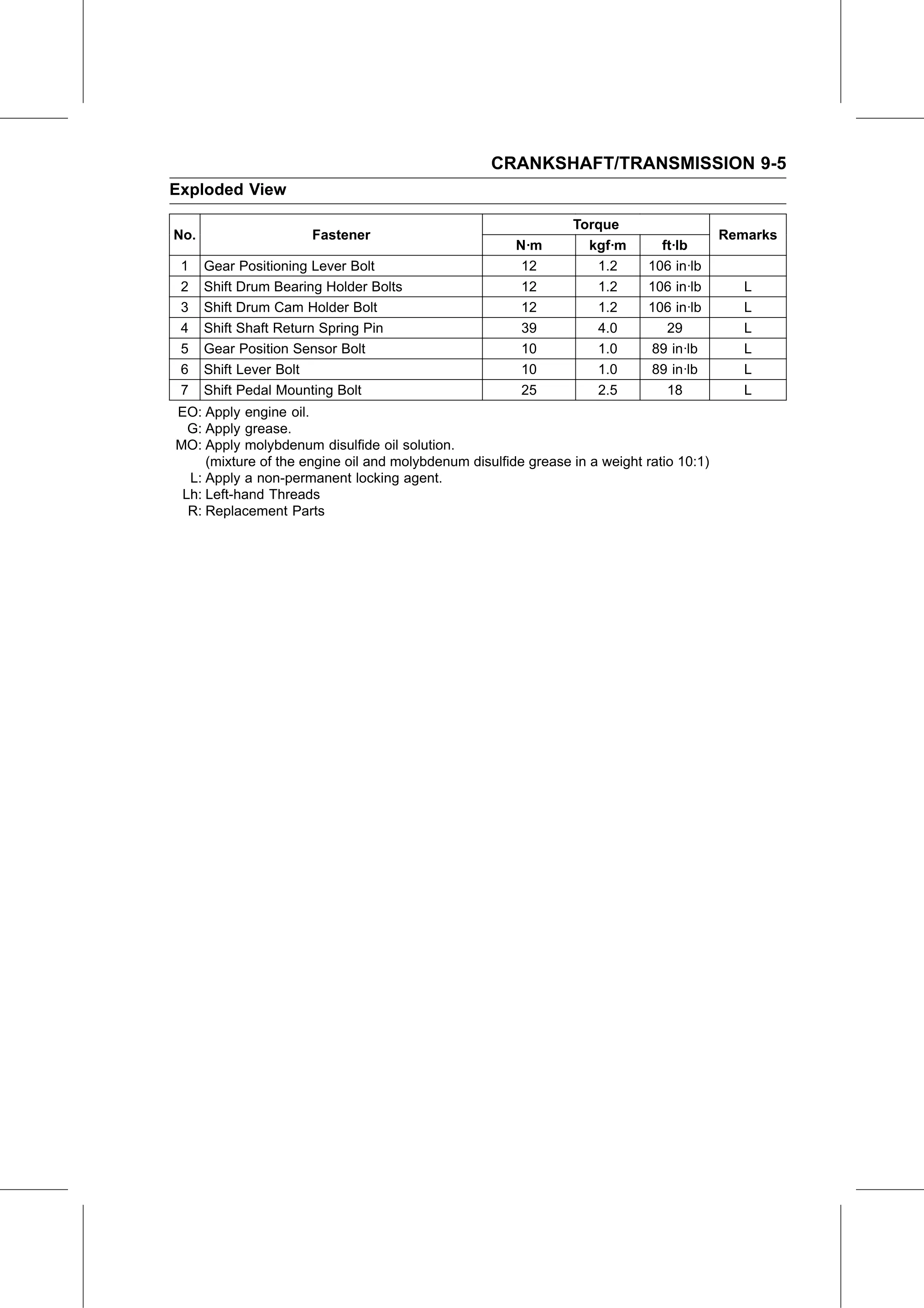

CRANKSHAFT/TRANSMISSION 9-5
Exploded View

                                                                Torque
No.                   Fastener                                                            Remarks
                                                       N·m        kgf·m        ft·lb
 1    Gear Positioning Lever Bolt                       12         1.2       106 in·lb
 2    Shift Drum Bearing Holder Bolts                   12         1.2       106 in·lb       L
 3    Shift Drum Cam Holder Bolt                        12         1.2       106 in·lb       L
 4    Shift Shaft Return Spring Pin                     39         4.0          29           L
 5    Gear Position Sensor Bolt                         10         1.0       89 in·lb        L
 6    Shift Lever Bolt                                  10         1.0       89 in·lb        L
 7    Shift Pedal Mounting Bolt                         25         2.5          18           L
EO: Apply engine oil.
  G: Apply grease.
MO: Apply molybdenum disulfide oil solution.
     (mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:1)
  L: Apply a non-permanent locking agent.
 Lh: Left-hand Threads
  R: Replacement Parts
