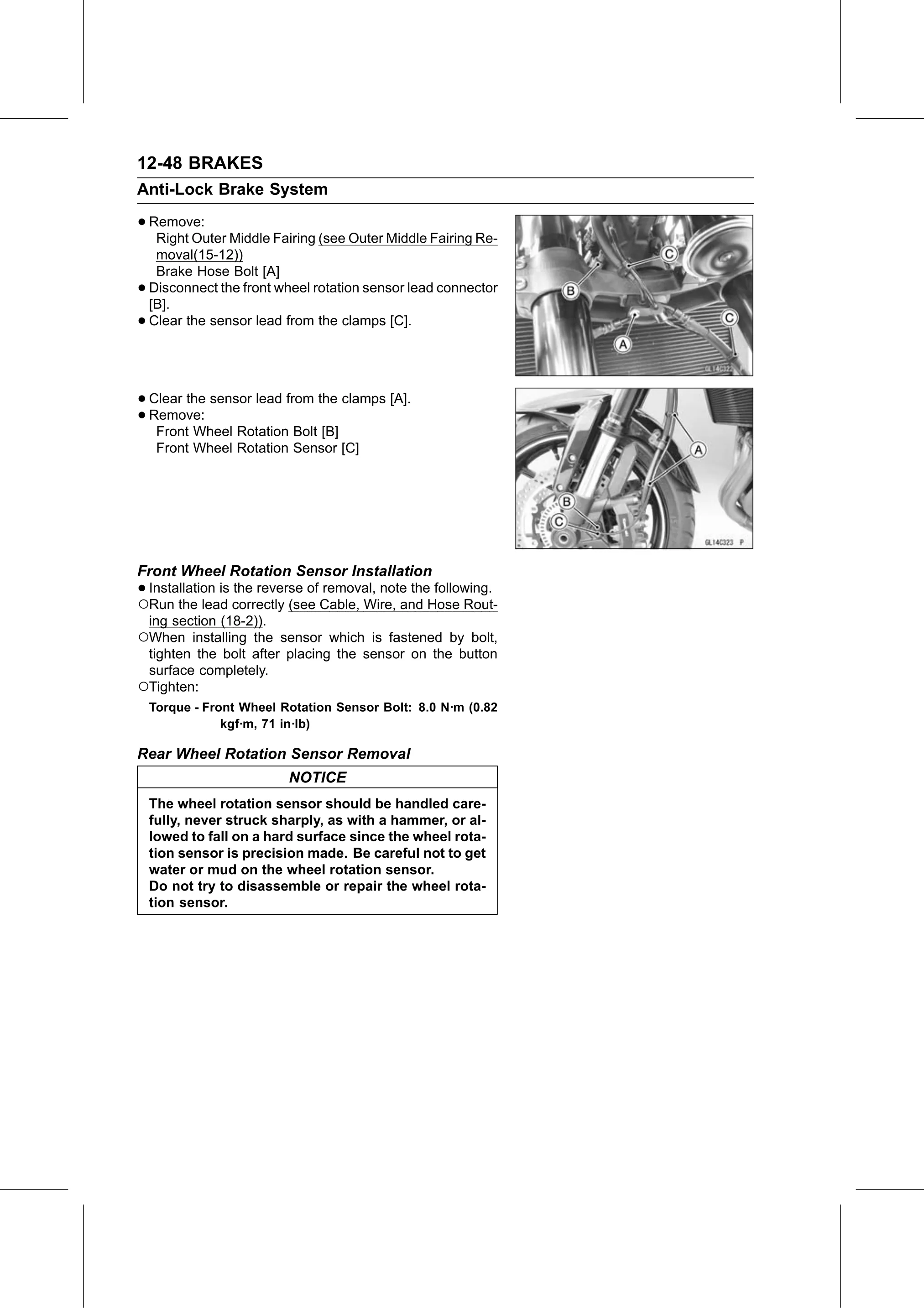

12-48 BRAKES
Anti-Lock Brake System

• Remove:
   Right Outer Middle Fairing (see Outer Middle Fairing Re-
     moval(15-12))
     Brake Hose Bolt [A]
•   Disconnect the front wheel rotation sensor lead connector
    [B].
•   Clear the sensor lead from the clamps [C].

• Clear the sensor lead from the clamps [A].
• Front Wheel Rotation Bolt [B]
  Remove:

     Front Wheel Rotation Sensor [C]

Front Wheel Rotation Sensor Installation
•○Installation is the reverse of removal, note the following.
  Run the lead correctly (see Cable, Wire, and Hose Rout-
    ing section (18-2)).
○When installing the sensor which is fastened by bolt,
 tighten the bolt after placing the sensor on the button
 surface completely.
○Tighten:
    Torque - Front Wheel Rotation Sensor Bolt: 8.0 N·m (0.82
                kgf·m, 71 in·lb)

Rear Wheel Rotation Sensor Removal
                           NOTICE
    The wheel rotation sensor should be handled care-
    fully, never struck sharply, as with a hammer, or al-
    lowed to fall on a hard surface since the wheel rota-
    tion sensor is precision made. Be careful not to get
    water or mud on the wheel rotation sensor.
    Do not try to disassemble or repair the wheel rota-
    tion sensor.
