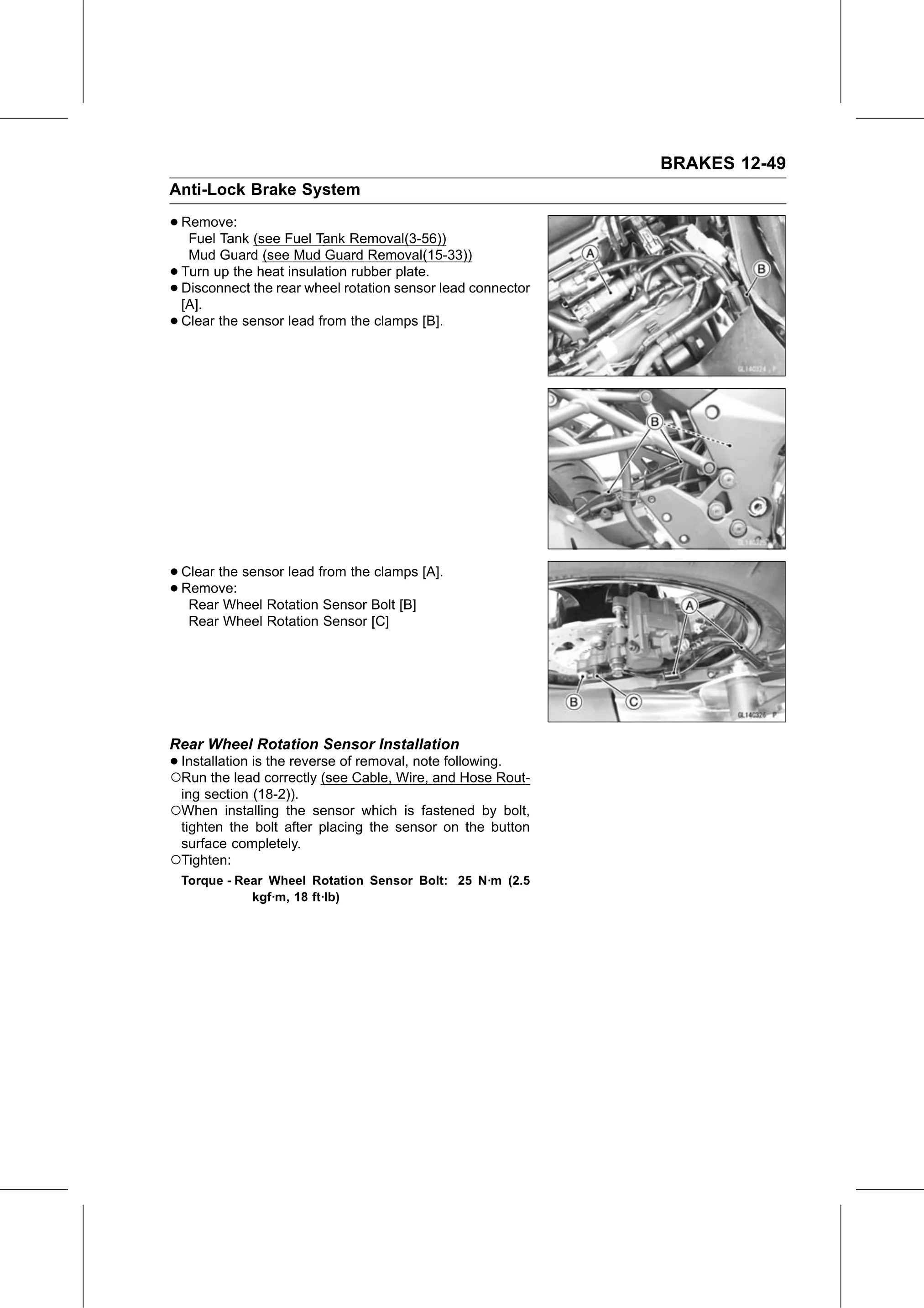

Service Manual (KLZ1000C) — page 389 of 762

Brakes › Rear Wheel Rotation Sensor Installation

Text on this page

BRAKES 12-49
Anti-Lock Brake System

• Remove:
   Fuel Tank (see Fuel Tank Removal(3-56))
     Mud Guard (see Mud Guard Removal(15-33))
•   Turn up the heat insulation rubber plate.
•   Disconnect the rear wheel rotation sensor lead connector
    [A].
•   Clear the sensor lead from the clamps [B].

• Clear the sensor lead from the clamps [A].
• Rear Wheel Rotation Sensor Bolt [B]
  Remove:

     Rear Wheel Rotation Sensor [C]

Rear Wheel Rotation Sensor Installation
•○Installation is the reverse of removal, note following.
  Run the lead correctly (see Cable, Wire, and Hose Rout-
 ing section (18-2)).
○When installing the sensor which is fastened by bolt,
 tighten the bolt after placing the sensor on the button
 surface completely.
○Tighten:
    Torque - Rear Wheel Rotation Sensor Bolt: 25 N·m (2.5
               kgf·m, 18 ft·lb)
