FRAME 15-15
Fairings

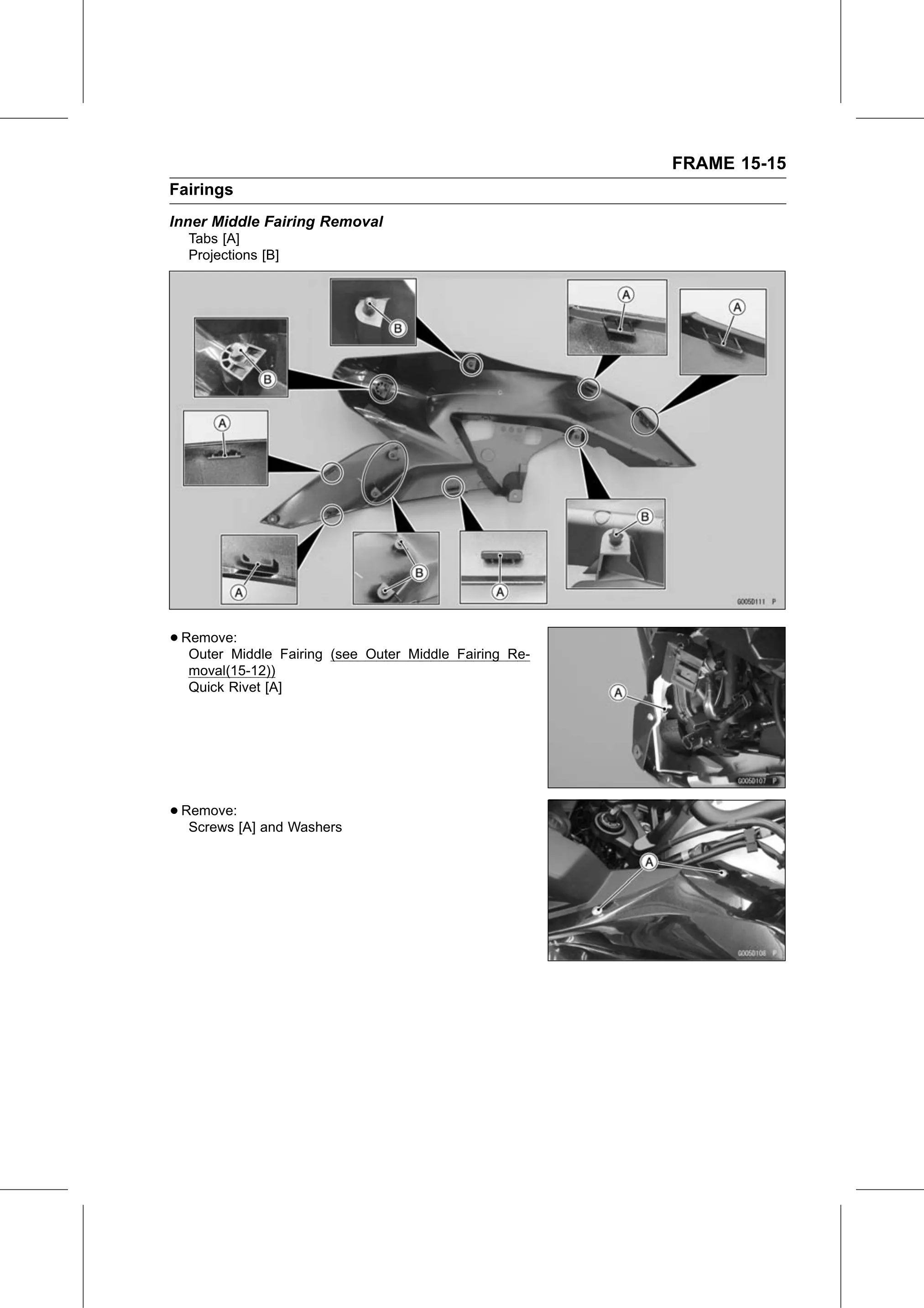

Inner Middle Fairing Removal
  Tabs [A]
  Projections [B]

• Remove:
   Outer Middle Fairing (see Outer Middle Fairing Re-
  moval(15-12))
  Quick Rivet [A]

• Remove:
   Screws [A] and Washers
