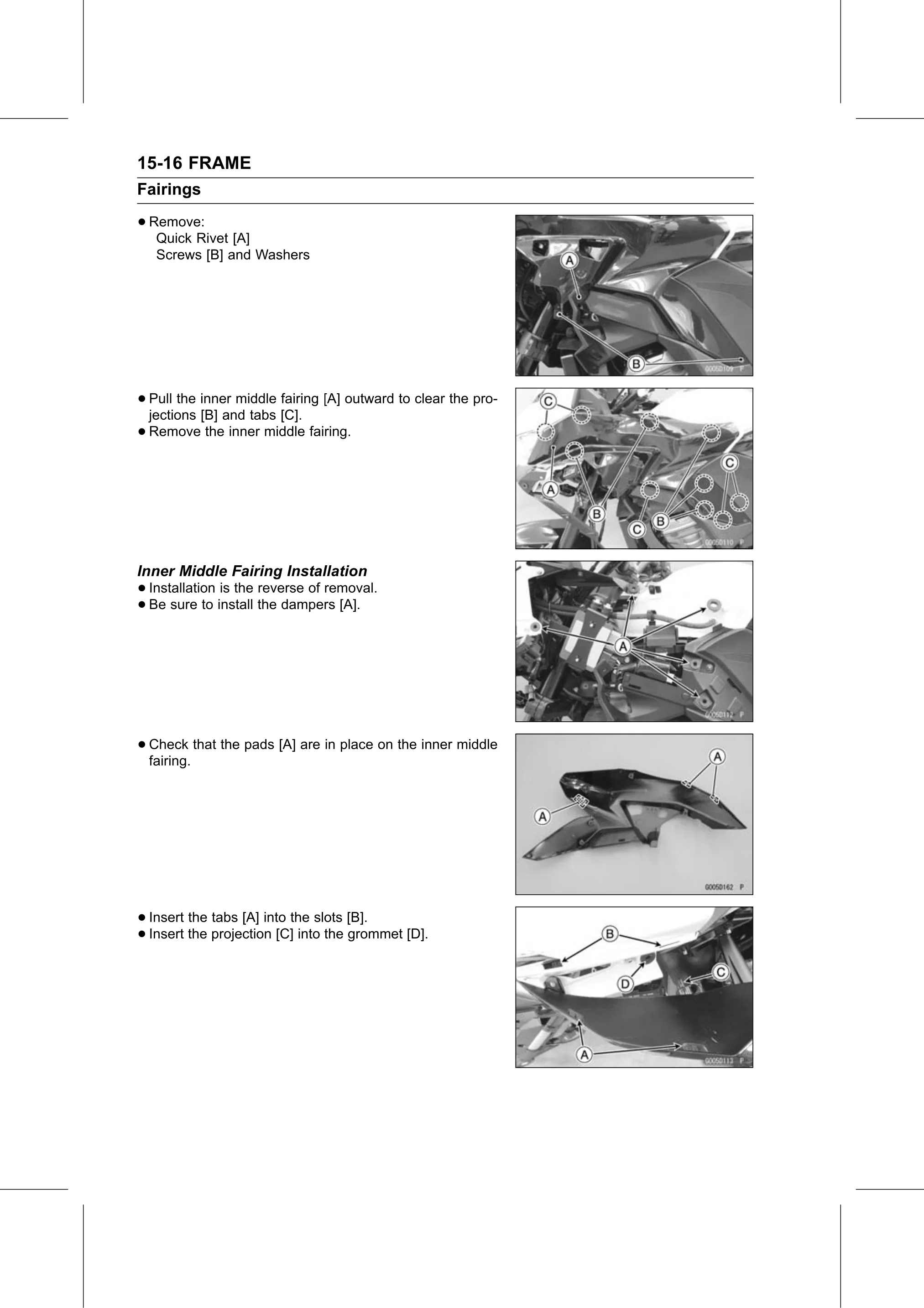

15-16 FRAME
Fairings

• Remove:
   Quick Rivet [A]
   Screws [B] and Washers

• Pull the inner middle fairing [A] outward to clear the pro-
  jections [B] and tabs [C].
• Remove the inner middle fairing.

Inner Middle Fairing Installation
• Installation is the reverse of removal.
• Be sure to install the dampers [A].

• Check
  fairing.
           that the pads [A] are in place on the inner middle

• Insert the tabs [A] into the slots [B].
• Insert the projection [C] into the grommet [D].
