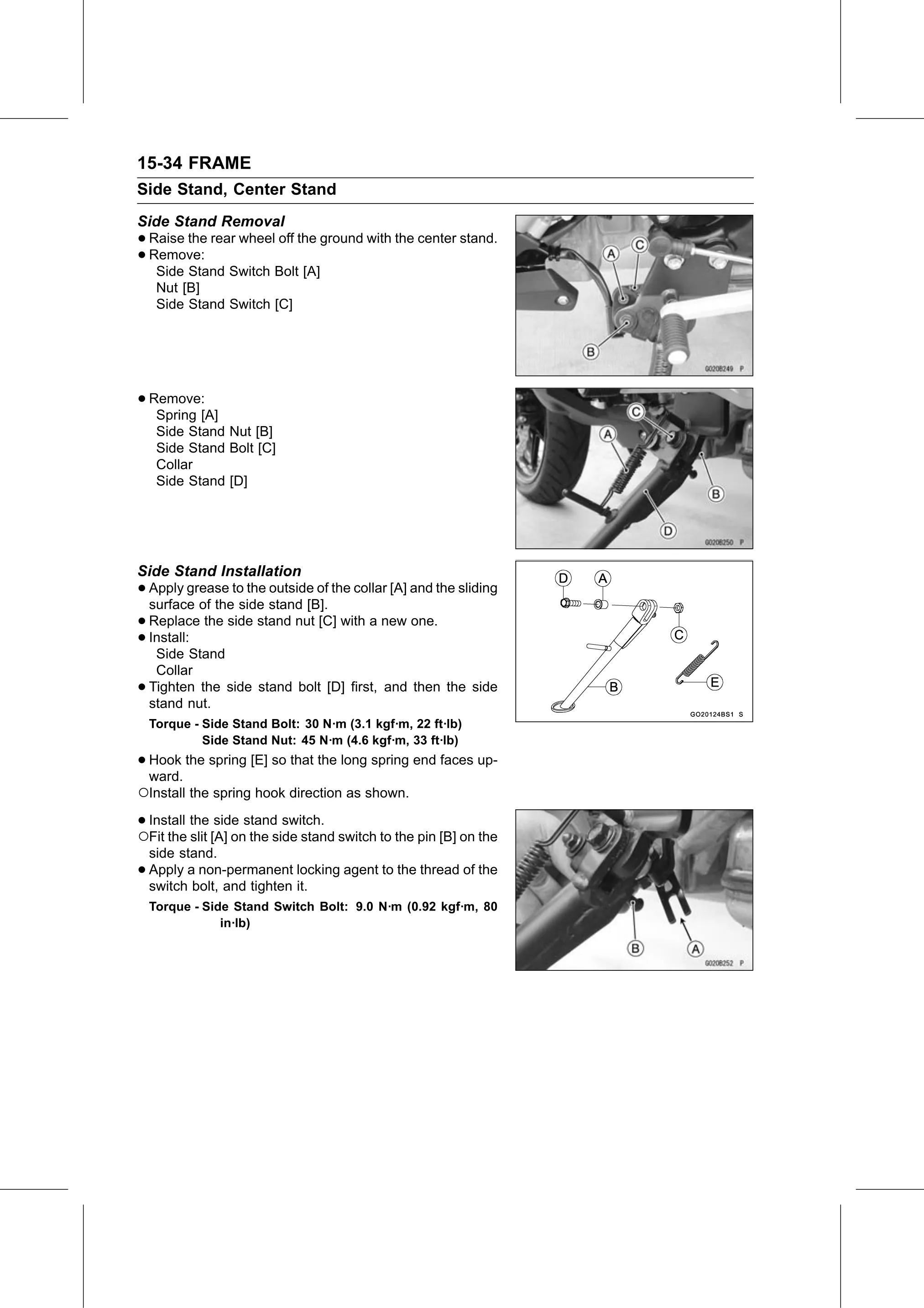

15-34 FRAME
Side Stand, Center Stand
Side Stand Removal
• Raise the rear wheel off the ground with the center stand.
• Remove:
   Side Stand Switch Bolt [A]
     Nut [B]
     Side Stand Switch [C]

• Remove:
   Spring [A]
     Side Stand Nut [B]
     Side Stand Bolt [C]
     Collar
     Side Stand [D]

Side Stand Installation
• Apply  grease to the outside of the collar [A] and the sliding
  surface of the side stand [B].
• Replace   the side stand nut [C] with a new one.
• Side Stand
  Install:

     Collar
•   Tighten the side stand bolt [D] first, and then the side
    stand nut.
    Torque - Side Stand Bolt: 30 N·m (3.1 kgf·m, 22 ft·lb)
             Side Stand Nut: 45 N·m (4.6 kgf·m, 33 ft·lb)
• Hook
  ward.
        the spring [E] so that the long spring end faces up-

○Install the spring hook direction as shown.
•○Install the side stand switch.
  Fit the slit [A] on the side stand switch to the pin [B] on the
    side stand.
•   Apply a non-permanent locking agent to the thread of the
    switch bolt, and tighten it.
    Torque - Side Stand Switch Bolt: 9.0 N·m (0.92 kgf·m, 80
                in·lb)
