FRAME 15-33
Guard

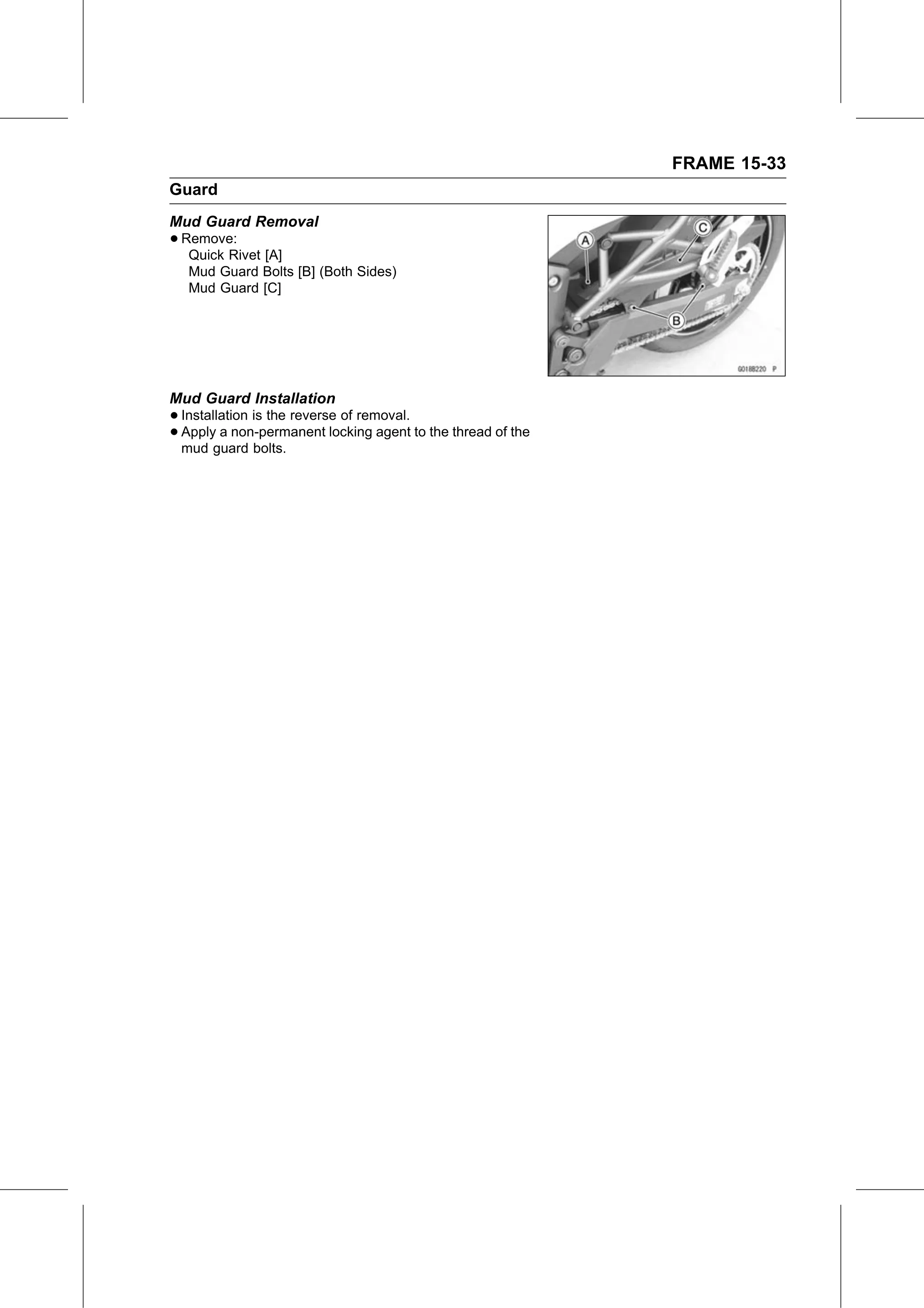

Mud Guard Removal
• Remove:
   Quick Rivet [A]
   Mud Guard Bolts [B] (Both Sides)
   Mud Guard [C]

Mud Guard Installation
• Installation is the reverse of removal.
• Apply  a non-permanent locking agent to the thread of the
  mud guard bolts.
