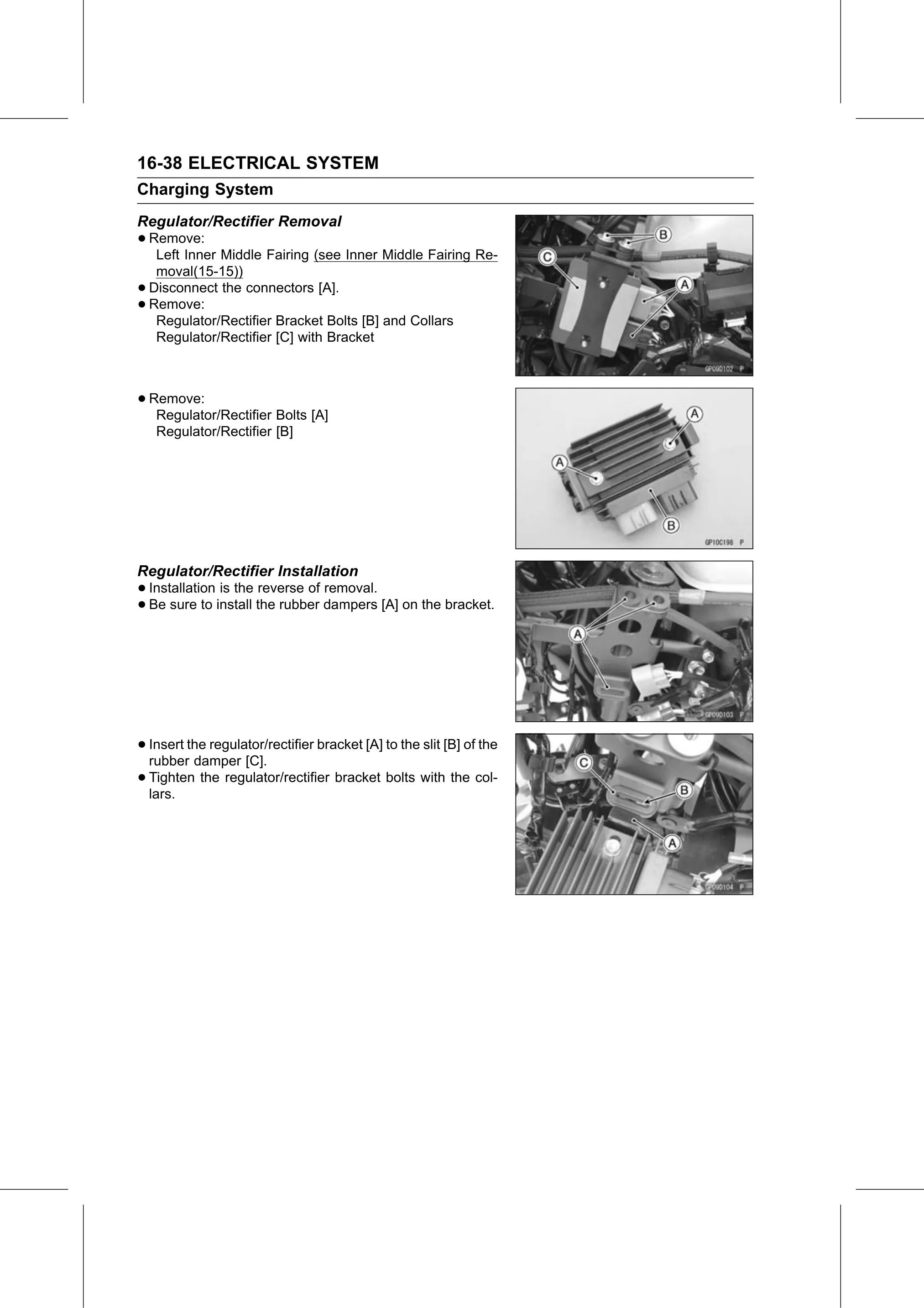

16-38 ELECTRICAL SYSTEM
Charging System
Regulator/Rectifier Removal
• Remove:
   Left Inner Middle Fairing (see Inner Middle Fairing Re-
     moval(15-15))
•   Disconnect the connectors [A].
•   Remove:
     Regulator/Rectifier Bracket Bolts [B] and Collars
     Regulator/Rectifier [C] with Bracket

• Remove:
   Regulator/Rectifier Bolts [A]
     Regulator/Rectifier [B]

Regulator/Rectifier Installation
• Installation is the reverse of removal.
• Be sure to install the rubber dampers [A] on the bracket.

• Insert the regulator/rectifier bracket [A] to the slit [B] of the
  rubber damper [C].
• Tighten
  lars.
           the regulator/rectifier bracket bolts with the col-
