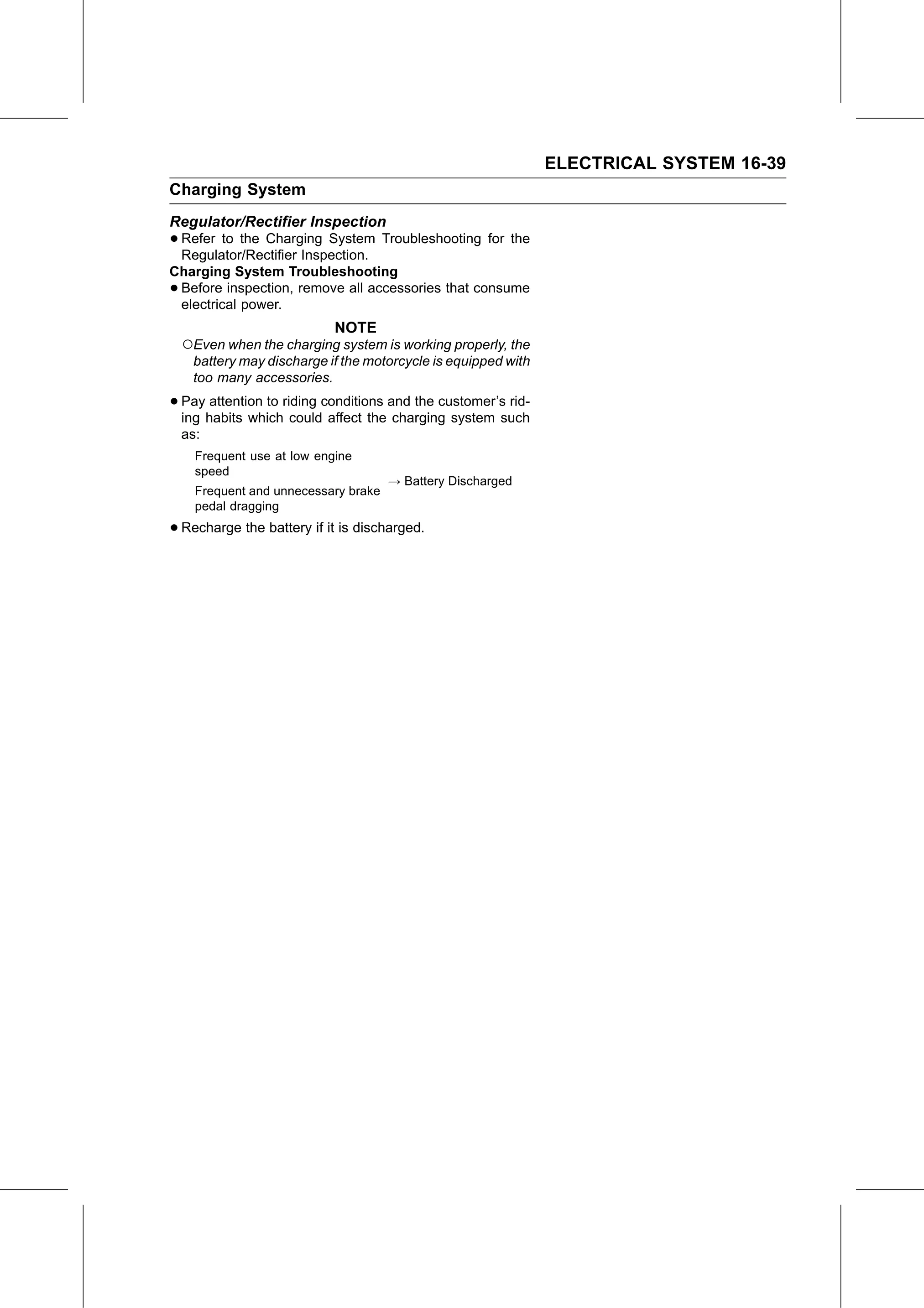

Service Manual (KLZ1000C) — page 521 of 762

Text on this page

ELECTRICAL SYSTEM 16-39
Charging System
Regulator/Rectifier Inspection
• Refer to the Charging System Troubleshooting for the
  Regulator/Rectifier Inspection.
Charging System Troubleshooting
•Before inspection, remove all accessories that consume
 electrical power.
                             NOTE
    ○Even when the charging system is working properly, the
     battery may discharge if the motorcycle is equipped with
     too many accessories.

• Pay  attention to riding conditions and the customer’s rid-
  ing habits which could affect the charging system such
    as:
      Frequent use at low engine
      speed
                                       → Battery Discharged
      Frequent and unnecessary brake
      pedal dragging

• Recharge the battery if it is discharged.
